Toyota Dyna/toyoace KDY290 WIRING & CLAMP

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-25B60	KDY240,290 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25B60	08/2004 - 05/2005	1
82131-25D81	KDY240,290 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25D81	05/2005 - 08/2007	1
82141 - WIRE, INSTRUMENT PANEL
82141-25071	KDY220,230,240,270,280,290,RZY231,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25071	08/2004 - 05/2005	1
82141-25100	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25100	07/2001 - 05/2005	1
82141-25101	KDY220,230,240,270,280,290,RZY231,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25101	05/2005 - 08/2007	1
82141-25072	KDY220,230,240,270,280,290,RZY231,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25072	05/2005 - 08/2007	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	2
Common parts
82712-37010
88578-25070
88578-25110
88578-30360
90119-06915
90119-06923
Linked diagrams
8401
8601

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-25C00	KDY240,290	08/2004 - 03/2006	1
82111-25C10	KDY240,290 ｱﾘ(ABS)	08/2004 - 03/2006	1
82111-25C50	KDY240,290 ｱﾘ(ABS & ﾊﾞﾂﾃﾘ=85D26L X 2)	08/2004 - 03/2006	1
82111-25C40	KDY240,290 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26L X 2)	08/2004 - 03/2006	1
82111-25C01	KDY240,290	03/2006 - 08/2007	1
82111-25C51	KDY240,290 ｱﾘ(ABS & ﾊﾞﾂﾃﾘ=85D26L X 2)	03/2006 - 08/2007	1
82111-25C41	KDY240,290 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26L X 2)	03/2006 - 08/2007	1
82111-25C11	KDY240,290 ｱﾘ(ABS)	03/2006 - 08/2007	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-25010	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI	07/2001 - 05/2005	1
82112-25040	KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ)	07/2001 - 10/2016	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-25010	KDY231..WT..IV6;KDY231..(TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 12/2999	1
82121 - WIRE, ENGINE
82121-25531	KDY220,230,240,270,280,290	01/2005 - 08/2007	1
82121-25530	KDY220,230,240,270,280,290	08/2004 - 01/2005	1
82122 - WIRE, ENGINE, NO.2
82122-25450	KDY240,290 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26L X 2)	08/2004 - 08/2007	1
82122-25460	KDY240,290	08/2004 - 08/2007	1
82123 - WIRE, ENGINE, NO.3
82123-25060	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
82125 - WIRE, TRANSMISSION
82125-25100	KDY280..TW1;LY280..MTM..125T..WT;LY280..MTM..(12T,15T);KDY280,290,LY290,RZY281,TRY281..(03S,06S,TB)..MTM	07/2001 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-25020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230..DCR,DSL,EFI	07/2001 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-25030	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-25040	KDY220,230,240,270,280,290,LY230,280,RZY220,23#,281..DCR,EFI,LPG	07/2001 - 12/2999	1
82672 - COVER, JUNKTION BLOCK
82672-25010	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
82673 - BRACKET, JUNCTION BLOCK
82673-25021	KDY220,230,240,270,280,290,RZY231,281	08/2004 - 08/2007	1
82674B - COVER, JUNCTION BLOCK, LOWER
82674-25010	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
Common parts
82821-10050
88895-95708
90119-06915
90119-08375
90119-08827
90179-04030
90179-06074
90189-04024
91551-80820
91651-60614
91651-60816
91651-B0822
91651-B0825
Linked diagrams
8401

KDY290V-RRMGY (2004)

ILLUST NO. 2 OF 8(0107-1610)

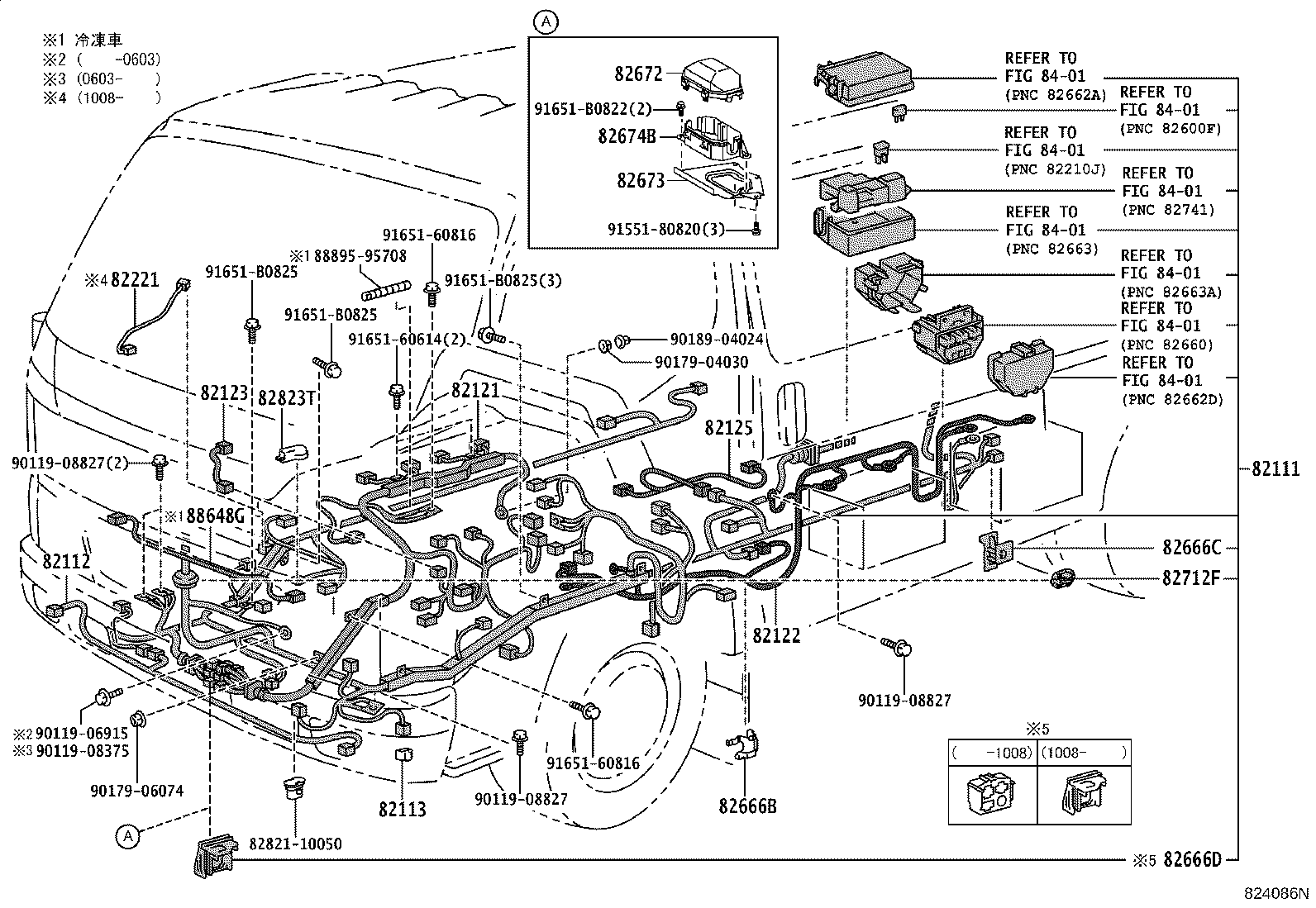

ILLUST NO. 1 OF 8(0408- )KDY24#,290
