KDY290V-RRMGY (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

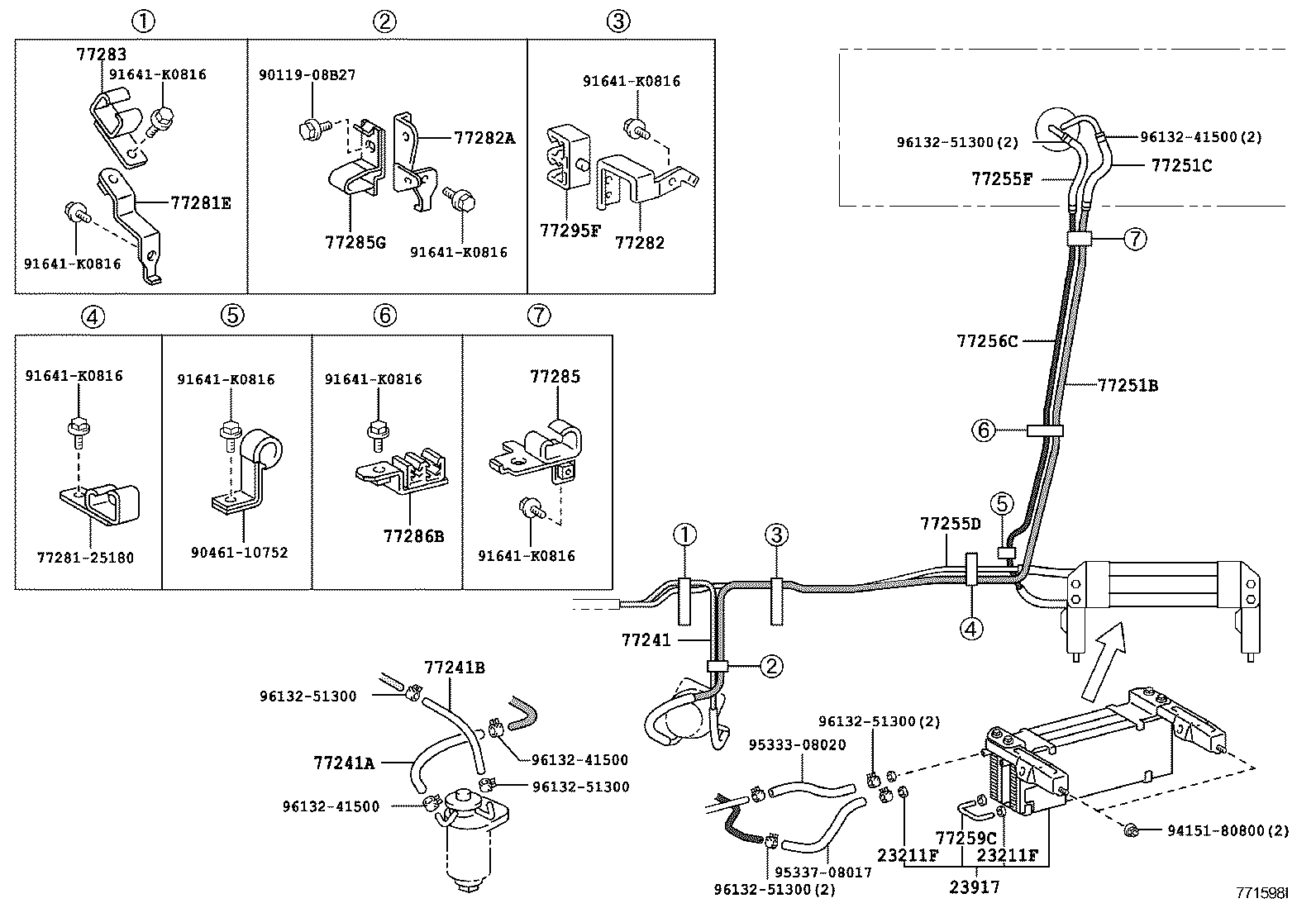

ILLUST NO. 2 OF 2(0408- )KDY24#,290

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 23211F 23211F 23917 77241 77241A 77241B 77251B 77251C 77255D 77255F 77256C 77259C 7728125180 77281E 77282 77282A 77283 77285 77285G 77286B 77295F 9011908B27 9046110752 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 9415180800 9533308020 9533708017 9613241500 9613241500 9613241500 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-25440

KDY24#,290

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08020

KDY24#,290,LY220,230,240,270,280,290..DCR,DSL

*H,L=160,内径=7.6

 1
77256C - TUBE, FUEL RETURN, NO.2
77256-25050

KDY24#,290

 1
77281E - BRACKET, FUEL MAIN TUBE, NO.1
77281-25070

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77281-25080

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
77282A - BRACKET, FUEL MAIN TUBE, NO.2
77281-25060

KDY24#,290,LY240,290

 1
77283 - BRACKET, FUEL TUBE
77281-25160

KDY22#,23#,24#,27#,28#,290

 1
77285 - BRACKET, FUEL TUBE
77281-25170

KDY24#,290

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-25030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-25010

KDY22#,23#,24#,27#,28#,290

 1
77295F - GROMMET, FUEL HOSE
77295-25050

KDY22#,23#,24#,27#,28#,290

 1
Common parts
77281-25180
90119-08B27
90461-10752
91641-K0816
94151-80800
95333-08020
95337-08017
96132-41500
96132-51300
