KDY281-TLPDY3 (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1KDFTV

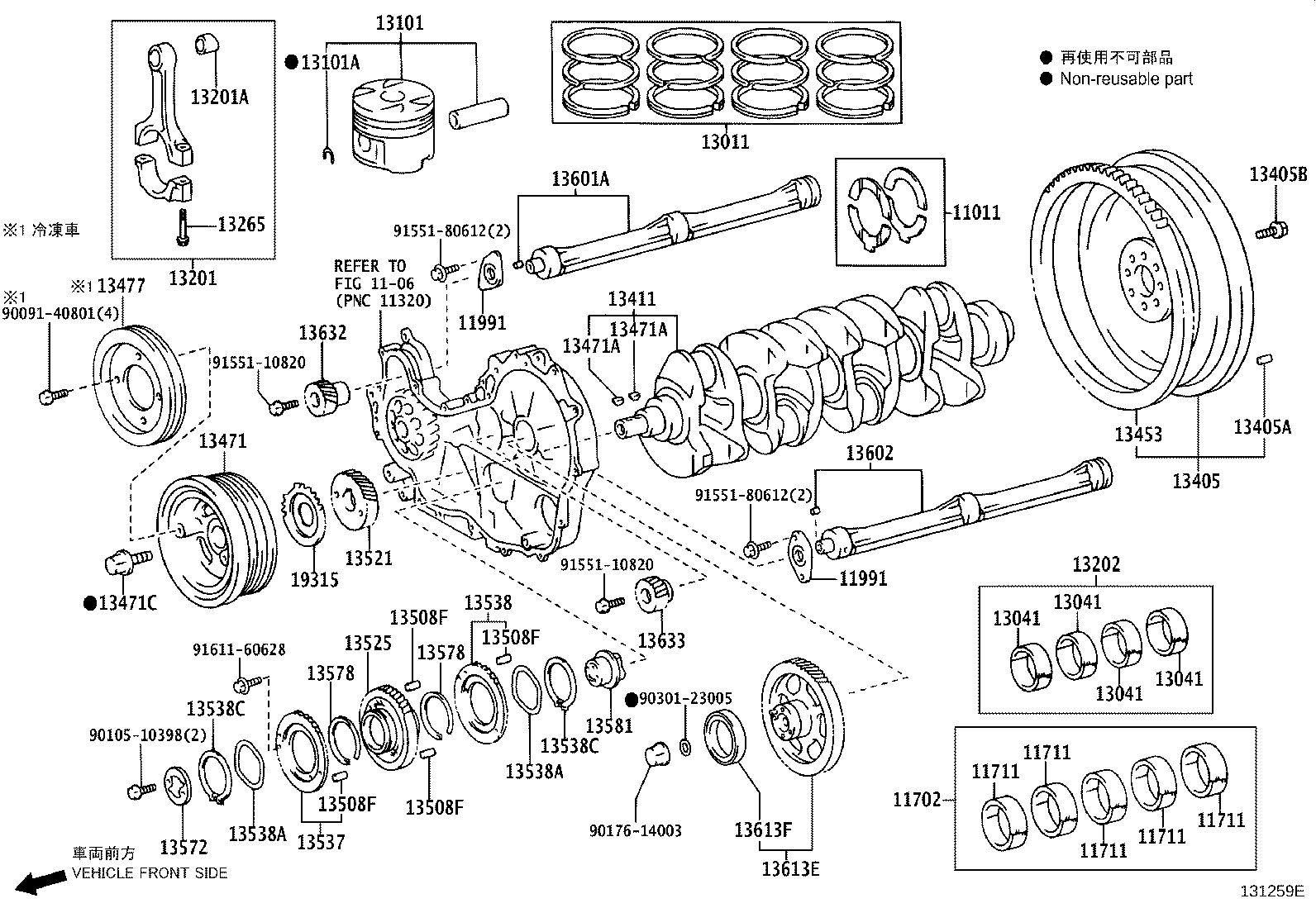

Click highlighted areas on diagram

diagram 11011 1106 11702 11711 11711 11711 11711 11711 11991 11991 13011 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13405 13405A 13405B 13411 13453 13471 13471A 13471A 13471C 13477 13508F 13508F 13508F 13508F 13521 13525 13537 13538 13538A 13538A 13538C 13538C 13572 13578 13578 13581 13601A 13602 13613E 13613F 13632 13633 19315 9009140801 9010510398 9017614003 9030123005 9155110820 9155110820 9155180612 9155180612 9161160628
Part # Description Qty Price
11702 - BEARING SET, CRANKSHAFT
11704-30020

1KDFTV..KDY221,231,241,271,281

U/S 0.25

 1
11705-30020

1KDFTV..KDY221,231,241,271,281

U/S 0.50

 1
11711 - BEARING, CRANKSHAFT
11701-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 5
11701-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 5
11701-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 5
11701-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 5
11701-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 5
11701-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 5
11701-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 5
11701-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 5
11701-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 5
11701-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 5
11701-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 5
11701-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 5
11701-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 5
11701-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 5
11701-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 5
11701-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 5
11701-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 5
11701-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 5
11701-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 5
11701-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 5
11701-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 5
11991 - WASHER, BALANCESHAFT THRUST
11991-67010

1KDFTV..KDY221,231,241,271,281

 2
11991 - WASHER, BALANCESHAFT THRUST
11991-67010

1KDFTV..KDY221,231,241,271,281

 2
13011 - RING SET, PISTON
13014-30090

1KDFTV..KDY221,231,241,271,281

O/S 0.75

 1
13013-30150

1KDFTV..KDY221,231,241,271,281

O/S 0.50

 1
13011-30150

1KDFTV..KDY221,231,241,271,281

STD

 1
13013-30090

1KDFTV..KDY221,231,241,271,281

O/S 0.50

 1
13011-30090

1KDFTV..KDY221,231,241,271,281

STD

 1
13015-30090

1KDFTV..KDY221,231,241,271,281

O/S 1.00

 1
13013-30160

1KDFTV..KDY221,231,241,271,281

O/S 0.50

 1
13014-30160

1KDFTV..KDY221,231,241,271,281

O/S 0.75

 1
13015-30150

1KDFTV..KDY221,231,241,271,281

O/S 1.00

 1
13011-30160

1KDFTV..KDY221,231,241,271,281

STD

 1
13014-30150

1KDFTV..KDY221,231,241,271,281

O/S 0.75

 1
13015-30160

1KDFTV..KDY221,231,241,271,281

O/S 1.00

 1
13041 - BEARING, CONNECTING ROD
13041-3003004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 4
13041-3003002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 4
13041-3003003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 4
13041-3003006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 4
13041-3003005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 4
13041-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 4
13041-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 4
13041-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 4
13041-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 4
13041-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3003004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 4
13041-3003002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 4
13041-3003003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 4
13041-3003006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 4
13041-3003005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 4
13041-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 4
13041-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 4
13041-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 4
13041-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 4
13041-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3003004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 4
13041-3003002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 4
13041-3003003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 4
13041-3003006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 4
13041-3003005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 4
13041-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 4
13041-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 4
13041-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 4
13041-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 4
13041-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3003004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 4
13041-3003002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 4
13041-3003003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 4
13041-3003006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 4
13041-3003005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 4
13041-3002006

1KDFTV..KDY221,231,241,271,281

MARK6,修理書参照

 4
13041-3002004

1KDFTV..KDY221,231,241,271,281

MARK4,修理書参照

 4
13041-3002003

1KDFTV..KDY221,231,241,271,281

MARK3,修理書参照

 4
13041-3002002

1KDFTV..KDY221,231,241,271,281

MARK2,修理書参照

 4
13041-3002005

1KDFTV..KDY221,231,241,271,281

MARK5,修理書参照

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-3013002

1KDFTV..KDY221,231,241,271,281

STD,MARK2,修理書参照

 4
13105-30130

1KDFTV..KDY221,231,241,271,281

O/S 1.00

 4
13103-30170

1KDFTV..KDY221,231,241,271,281

O/S 0.50

 4
13101-3013001

1KDFTV..KDY221,231,241,271,281

STD,MARK1,修理書参照

 4
13103-30130

1KDFTV..KDY221,231,241,271,281

O/S 0.50

 4
13101-3017201

1KDFTV..KDY281;1KDFTV..KDY221..T2,T4;1KDFTV..KDY221..T3..TB;1KDFTV..KDY231,241,271..(T2,T3,T4,TW1,TW2,TW4,VAN)..(03S,TB,TS)

STD,MARK 1,修理書参照

 4
13104-30170

1KDFTV..KDY221,231,241,271,281

O/S 0.75

 4
13105-30170

1KDFTV..KDY221,231,241,271,281

O/S 1.00

 4
13101-3017203

1KDFTV..KDY281;1KDFTV..KDY221..T2,T4;1KDFTV..KDY221..T3..TB;1KDFTV..KDY231,241,271..(T2,T3,T4,TW1,TW2,TW4,VAN)..(03S,TB,TS)

STD,MARK 3,修理書参照

 4
13101-3013003

1KDFTV..KDY221,231,241,271,281

STD,MARK3,修理書参照

 4
13101-3017202

1KDFTV..KDY281;1KDFTV..KDY221..T2,T4;1KDFTV..KDY221..T3..TB;1KDFTV..KDY231,241,271..(T2,T3,T4,TW1,TW2,TW4,VAN)..(03S,TB,TS)

STD,MARK 2,修理書参照

 4
13105-30172

1KDFTV..KDY221,231,241,271,281

O/S 1.00

 4
13103-30172

1KDFTV..KDY221,231,241,271,281

O/S 0.50

 4
13101-3017203

1KDFTV..KDY221,231,241,271,281

STD,MARK 3,修理書参照

 4
13104-30172

1KDFTV..KDY221,231,241,271,281

O/S 0.75

 4
13101-3017202

1KDFTV..KDY221,231,241,271,281

STD,MARK 2,修理書参照

 4
13104-30130

1KDFTV..KDY221,231,241,271,281

O/S 0.75

 4
13101-3017201

1KDFTV..KDY221,231,241,271,281

STD,MARK 1,修理書参照

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-30020

1KDFTV..KDY221,231,241,271,281

 4
13201-30021

1KDFTV..KDY221,231,241,271,281

 4
13201-30051

1KDFTV..KDY221,231,241,271,281

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73143

1KDFTV..KDY221,231,241,271,281

 4
90999-73156

1KDFTV..KDY221,231,241,271,281

 4
13202 - BEARING SET, CONNECTING ROD
13205-30020

1KDFTV..KDY221,231,241,271,281

U/S 0.50

 1
13204-30020

1KDFTV..KDY221,231,241,271,281

U/S 0.25

 1
13411 - CRANKSHAFT
13401-30050

1KDFTV..KDY221,231,241,271,281

 1
13401-30010

1KDFTV..KDY221,231,241,271,281

 1
13471 - PULLEY, CRANKSHAFT
13408-30021

1KDFTV..KDY221,231,241,271,281

 1
13508F - PIN, STRAIGHT(FOR IDLE GEAR)
90250-05027

1KDFTV..KDY221,231,241,271,281

 4
13508F - PIN, STRAIGHT(FOR IDLE GEAR)
90250-05027

1KDFTV..KDY221,231,241,271,281

 4
13508F - PIN, STRAIGHT(FOR IDLE GEAR)
90250-05027

1KDFTV..KDY221,231,241,271,281

 4
13508F - PIN, STRAIGHT(FOR IDLE GEAR)
90250-05027

1KDFTV..KDY221,231,241,271,281

 4
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-30020

1KDFTV..KDY221,231,241,271,281

 1
13525 - GEAR, IDLE, NO.1
13508-67011

1KDFTV..KDY221,231,241,271,281

 1
13537 - GEAR, IDLE SUB, NO.1
13537-67900

1KDFTV..KDY221,231,241,271,281

 1
13538A - WASHER, WAVE
90206-69001

1KDFTV..KDY221,231,241,271,281

 2
13538A - WASHER, WAVE
90206-69001

1KDFTV..KDY221,231,241,271,281

 2
13538C - RING, SHAFT SNAP
90520-58002

1KDFTV..KDY221,231,241,271,281

 2
13538C - RING, SHAFT SNAP
90520-58002

1KDFTV..KDY221,231,241,271,281

 2
13578 - SPRING, IDLE GEAR
13578-67010

1KDFTV..KDY221,231,241,271,281

 2
13578 - SPRING, IDLE GEAR
13578-67010

1KDFTV..KDY221,231,241,271,281

 2
13601A - BALANCESHAFT SUB-ASSY, NO.1
13601-67020

1KDFTV..KDY221,231,241,271,281

 1
13602 - BALANCESHAFT SUB-ASSY, NO.2
13602-67020

1KDFTV..KDY221,231,241,271,281

 1
13632 - GEAR, BALANCESHAFT DRIVEN, NO.1
13632-67010

1KDFTV..KDY221,231,241,271,281

 1
13633 - GEAR, BALANCESHAFT DRIVEN, NO.2
13633-67010

1KDFTV..KDY221,231,241,271,281

 1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-30020

1KDFTV..KDY221,231,241,271,281

 1
Common parts
90091-40801
90105-10398
90176-14003
90301-23005
91551-10820
91551-80612
91611-60628
Linked diagrams
1106
