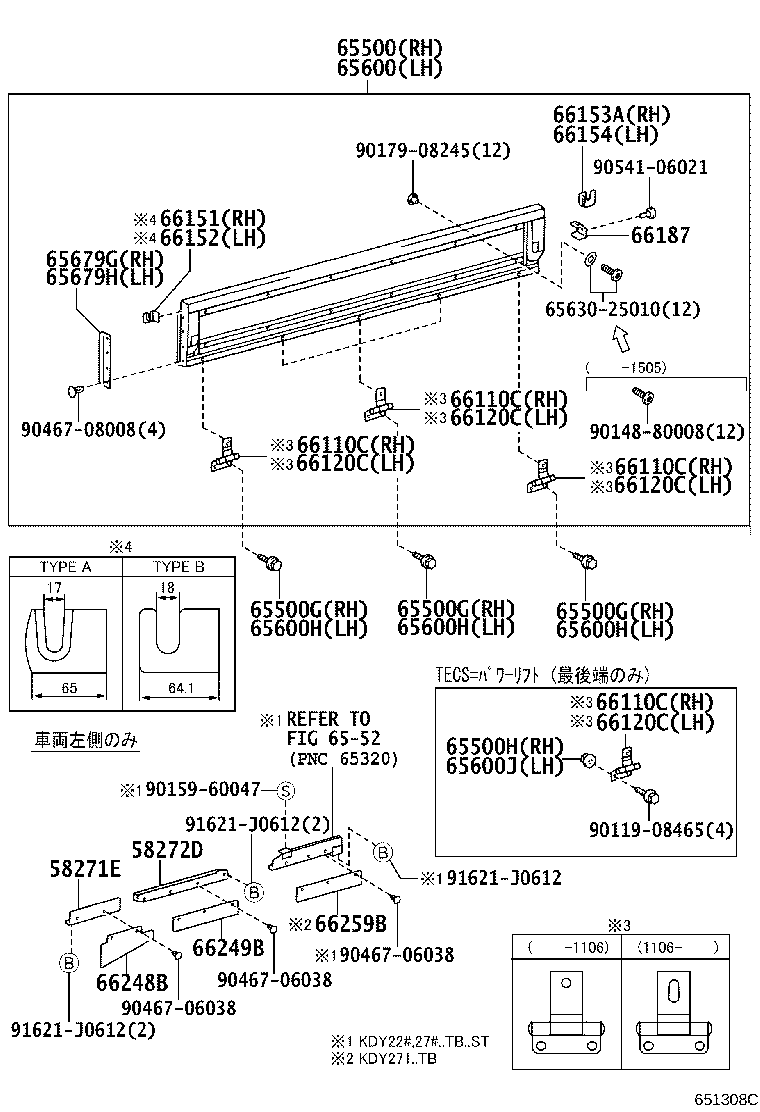

KDY281-TBMDY (2007)
Toyota Dyna/Toyoace
(0807- )TB..CBU ; (0807- )TRY220..T2..ST..IV3 ; (0807- )KDY221..T2..ATM..I
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58271E - PLATE, FLOOR SIDE, NO.1 | ||||
| 58271-25030 |
TRY230..T2..TB..MTM..WT;TRY230..(T3,T4)..MTM..CBU;KDY221,231,271,281,TRY220..(T2,T3,T4)..TB..MTM..CBU |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-3V370 |
KDY23#,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65500-25261 |
KDY231,281,TRY230..(T2,T3,T4)..TB..CBU PNC 66151参照 |
1 | ||
| 65500-25270 |
TRY231,281..CBU |
1 | ||
| 65500-26061 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
1 | ||
| 65500-25271 |
TRY231,281..CBU PNC 66151参照 |
1 | ||
| 65500-25262 |
KDY231,281,TRY230..(T2,T3,T4)..TB..CBU PNC 66151参照 |
1 | ||
| 65500-25272 |
TRY231,281..CBU PNC 66151参照 |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 91551-80820 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 91551-80820 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 91551-80820 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-3V360 |
KDY23#,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TB..(DCR,DSL,EFI)..CBU |
1 | ||
| 65600-25270 |
TRY231,281..CBU |
1 | ||
| 65600-25261 |
KDY231,281,TRY230..(T2,T3,T4)..TB..CBU PNC 66152参照 |
1 | ||
| 65600-26061 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
1 | ||
| 65600-25271 |
TRY231,281..CBU PNC 66152参照 |
1 | ||
| 65600-25272 |
TRY231,281..CBU PNC 66152参照 |
1 | ||
| 65600-25262 |
KDY231,281,TRY230..(T2,T3,T4)..TB..CBU PNC 66152参照 |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 91551-80820 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 91551-80820 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 91551-80820 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
10 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65679-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 65679-37011 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 65010-37042 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
5 | ||
| 66110-95018 |
KDY231,281,TRY230..(T2,T3)..TS..CBU |
6 | ||
| 65040-95A00 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
6 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 65010-37042 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
5 | ||
| 66110-95018 |
KDY231,281,TRY230..(T2,T3)..TS..CBU |
6 | ||
| 65040-95A00 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
6 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 65010-37042 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
5 | ||
| 66110-95018 |
KDY231,281,TRY230..(T2,T3)..TS..CBU |
6 | ||
| 65040-95A00 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
6 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY230,280..(T2,T3,T4)..TB..DSL..CBU;KDY22#,23#,27#,28#,LY220,270,RZY220,230,TRY220,23#,281..(T2,T3,T4)..TB..CBU ### |
3 | ||
| 65010-37042 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..TB..CBU |
5 | ||
| 66110-95018 |
KDY231,281,TRY230..(T2,T3)..TS..CBU |
6 | ||
| 65040-95A00 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
6 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
KDY22#,LY220..TB..ST;KDY22#,281,LY220,RZY220,TRY220,231,281..(T3,T4)..TB..CBU;KDY23#,280,LY230,280,RZY230,TRY230..(T2,T3,T4)..TB..(DCR,DSL,EFI)..CBU ### |
3 | ||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 65010-37042 |
KDY221,TRY220..(T3,T4)..TB..MTM..CBU;KDY231,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
5 | ||
| 66110-95018 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
6 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
KDY22#,LY220..TB..ST;KDY22#,281,LY220,RZY220,TRY220,231,281..(T3,T4)..TB..CBU;KDY23#,280,LY230,280,RZY230,TRY230..(T2,T3,T4)..TB..(DCR,DSL,EFI)..CBU ### |
3 | ||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 65010-37042 |
KDY221,TRY220..(T3,T4)..TB..MTM..CBU;KDY231,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
5 | ||
| 66110-95018 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
6 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
KDY22#,LY220..TB..ST;KDY22#,281,LY220,RZY220,TRY220,231,281..(T3,T4)..TB..CBU;KDY23#,280,LY230,280,RZY230,TRY230..(T2,T3,T4)..TB..(DCR,DSL,EFI)..CBU ### |
3 | ||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 65010-37042 |
KDY221,TRY220..(T3,T4)..TB..MTM..CBU;KDY231,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
5 | ||
| 66110-95018 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
6 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37040 |
KDY22#,LY220..TB..ST;KDY22#,281,LY220,RZY220,TRY220,231,281..(T3,T4)..TB..CBU;KDY23#,280,LY230,280,RZY230,TRY230..(T2,T3,T4)..TB..(DCR,DSL,EFI)..CBU ### |
3 | ||
| 65010-37040 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,27#,LY220,270,RZY220,231,281,TRY220..TB..CBU |
3 | ||
| 65010-37042 |
KDY221,TRY220..(T3,T4)..TB..MTM..CBU;KDY231,281,TRY23#,281..(T2,T3,T4)..TB..CBU |
5 | ||
| 66110-95018 |
KDY231..(T2,T3)..TS..CBU;KDY230,28#,LY230,280,RZY230,TRY230..(T2,T3,T4)..TS..CBU |
6 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-92703 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 66151-92703 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU TECS=ﾊﾟﾜ- ｹﾞ-ﾄ |
1 | ||
| 66151-37030 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 66151-92703 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-92703 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 66152-92703 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU TECS=ﾊﾟﾜ- ｹﾞ-ﾄ |
1 | ||
| 66152-92703 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ |
1 | ||
| 66152-37030 |
TRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
LY230..TB..125T..ST;RZY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,LY230,280,RZY220,230,TRY231,281..TB..(DCR,EFI,LPG)..CBU |
1 | ||
| 66153-26010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66154-26010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU |
1 | ||
| 66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2 | ||||
| 66187-37010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66187-37011 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66187-25010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU |
2 | ||
| 66248B - PROTECTOR, REAR BODY SIDE PANEL, RH | ||||
| 66248-25050 |
TRY230..T2..TB..MTM..WT;TRY230..(T3,T4)..MTM..CBU;KDY221,231,271,281,TRY220..(T2,T3,T4)..TB..MTM..CBU |
1 | ||
| Common parts | ||||
| 65630-25010 | ||||
| 90119-08465 | ||||
| 90148-80008 | ||||
| 90159-60047 | ||||
| 90179-08245 | ||||
| 90467-06038 | ||||
| 90467-08008 | ||||
| 90541-06021 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 6552 | ||||
