KDY281-PSMDY (2007)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0107-1610)
ﾌﾛﾝﾄ(ﾏﾆﾕｱﾙ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37190 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 87138-0K090 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87480A - AMPLIFIER ASSY, HEATER | ||||
| 87480-25030 |
KDY221,231,241,271,281 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37110 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88501-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-37030 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88502-37050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-37190 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-37180 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-37190 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-37180 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-37030 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88515-12130 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88539-37080 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-37140 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-37150 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88840-37250 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88710-37340 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88710J - TUBE, AIR CONDITIONER CONNECTOR | ||||
| 88710-37350 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 55767-25020 | ||||
| 87116-14010 | ||||
| 88469-37060 | ||||
| 88626-28010 | ||||
| 88895-37150 | ||||
| 88899-37020 | ||||
| 90080-82005 | ||||
| 90099-00968 | ||||
| 90099-04493 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06939 | ||||
| 90159-60096 | ||||
| 91554-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0107-1610)
ﾌﾛﾝﾄ(ｵ-ﾄ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-32010 |
KDY271,281;KDY221..T2;KDY221,231..T4..TB;TRY220,230..125T,15T;KDY231..T2,T3,TW2,TW4 |
1 | ||
| 87480A - AMPLIFIER ASSY, HEATER | ||||
| 87480-25030 |
KDY221,231,241,271,281 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37110 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88501-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-37030 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88502-37050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-37190 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-37180 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-37190 |
KDY221,23#..T4..TB;KDY221,23#..T2,T3,TW1,TW2,TW3,TW4;KDY220,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-37180 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-37030 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88515-12130 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88539-37080 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-37130 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-37140 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-37150 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88840-37250 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88710-37340 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88710J - TUBE, AIR CONDITIONER CONNECTOR | ||||
| 88710-37350 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 55767-25020 | ||||
| 87116-14010 | ||||
| 88469-37060 | ||||
| 88626-28010 | ||||
| 88895-37150 | ||||
| 88899-37020 | ||||
| 90080-82005 | ||||
| 90099-00968 | ||||
| 90099-04493 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06939 | ||||
| 90159-60096 | ||||
| 91554-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

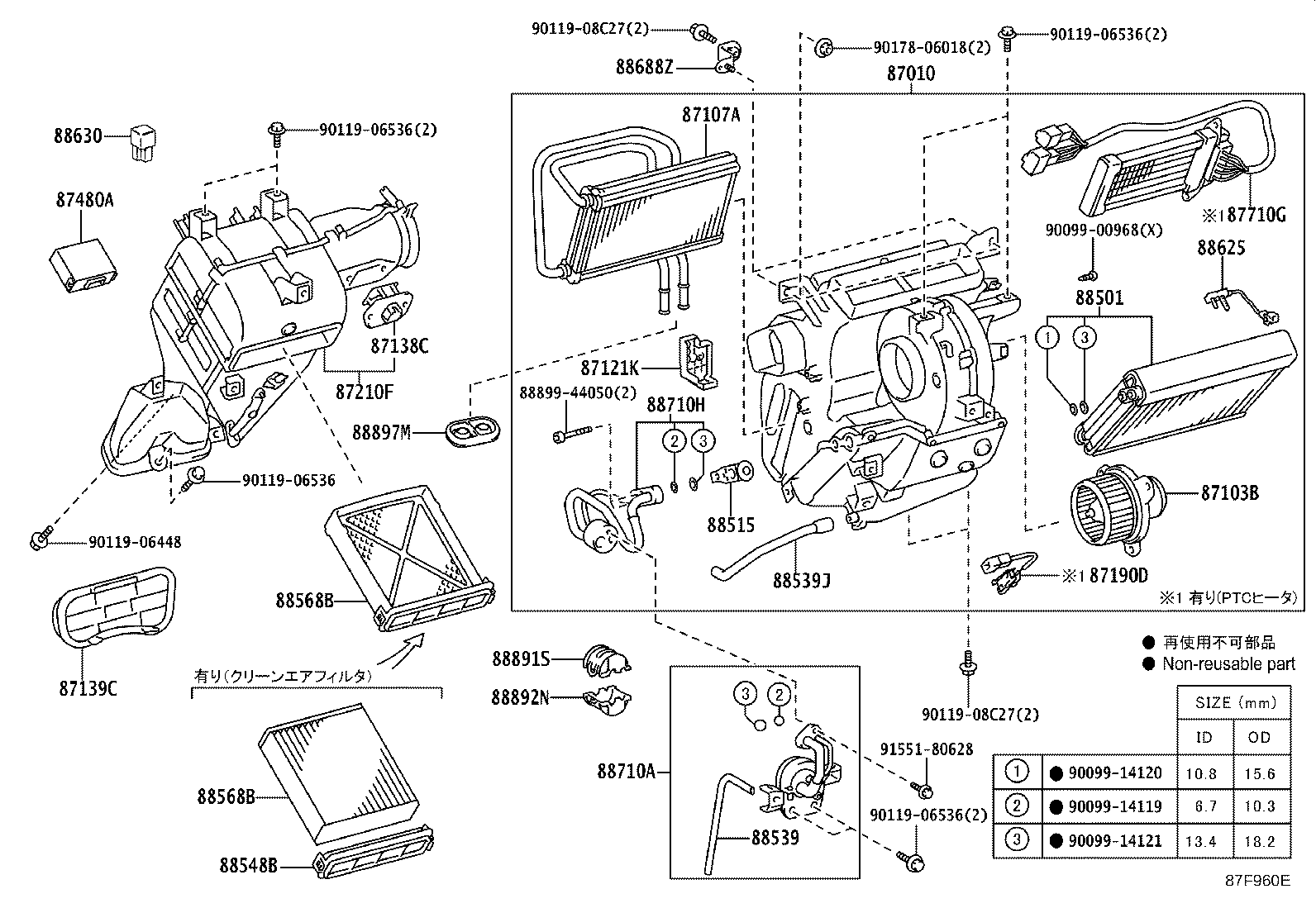

ILLUST NO. 1 OF 2(1610- )
ﾌﾛﾝﾄ(ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-25010 |
KDY221,231,241,271,281 |
1 | ||
| 87010-37230 |
TRY220,23#,281 |
1 | ||
| 87010-25030 |
TRY220,23#,281 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-37030 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-37110 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-37310 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37190 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 87138-0K090 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87441-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87190D - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-25020 |
KDY221,231,241,271,281 |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-37100 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87480A - AMPLIFIER ASSY, HEATER | ||||
| 87480-25030 |
KDY221,231,241,271,281 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87700-25050 |
KDY221,231,241,271,281 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37110 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88501-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-37030 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88515-12130 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-37060 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-37060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88539-37080 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-37010 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ｸﾘ-ﾝｴｱﾌｲﾙﾀ) |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37010 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| 88568-37020 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ｸﾘ-ﾝｴｱﾌｲﾙﾀ) |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37010 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| 88568-37020 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ｸﾘ-ﾝｴｱﾌｲﾙﾀ) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-37N90 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-25510 |
KDY221..T2,T3;KDY231,271,281;KDY221..T4..TB ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 88710-37760 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88840-37250 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88710-37340 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-37081 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 88899-44050 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06448 | ||||
| 90119-06536 | ||||
| 90119-08C27 | ||||
| 90178-06018 | ||||
| 91551-80628 | ||||

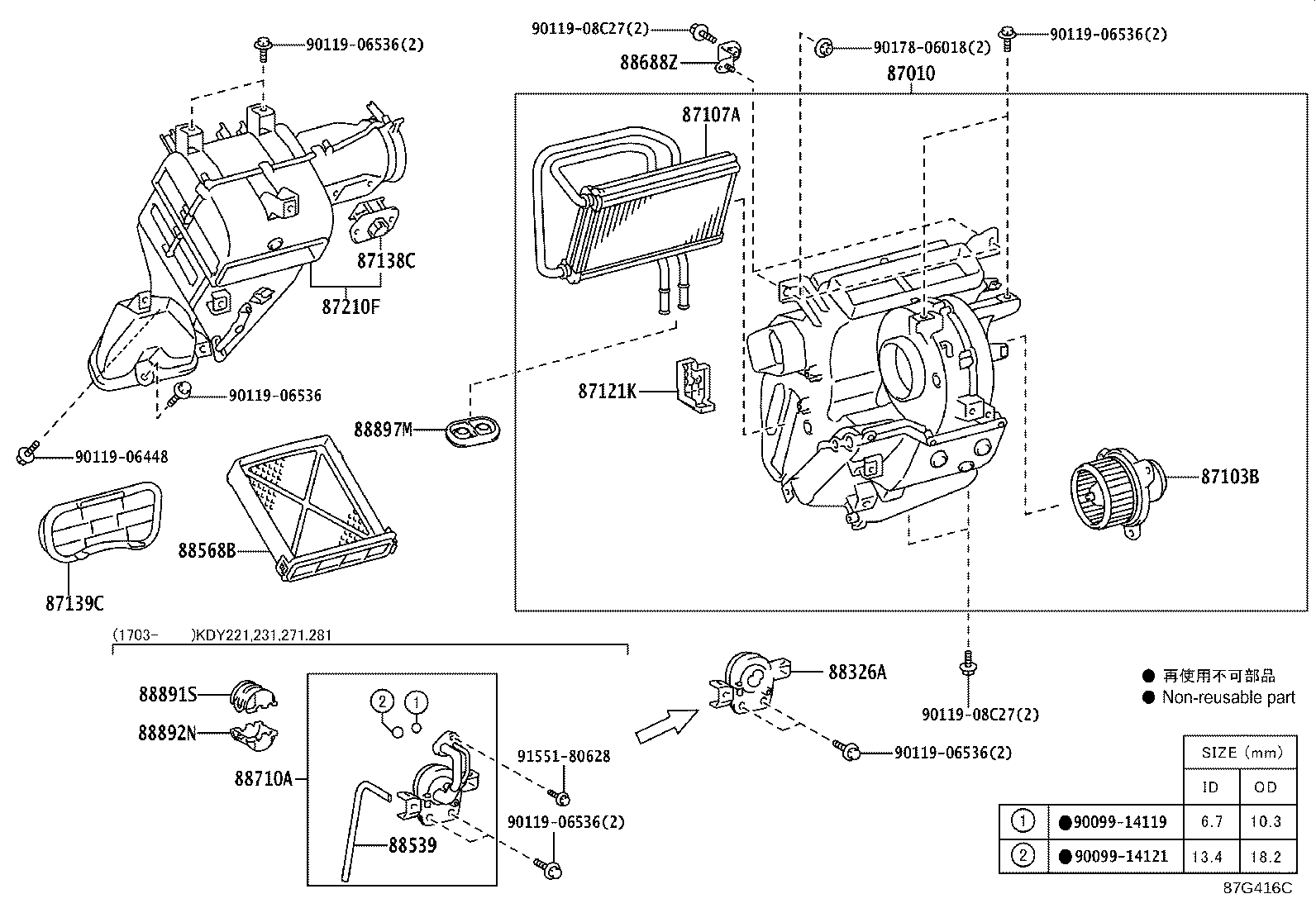

ILLUST NO. 1 OF 2(1610- )
ﾌﾛﾝﾄ(ﾋｰﾀﾉﾐ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-25010 |
KDY221,231,241,271,281 |
1 | ||
| 87010-37230 |
TRY220,23#,281 |
1 | ||
| 87010-25030 |
TRY220,23#,281 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-37030 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-37110 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-37310 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37190 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 87138-0K090 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87441-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-37100 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-37020 |
KDY221..T2,T3;KDY231,271,281;KDY221..T4..TB |
1 | ||
| 88326-37020 |
KDY241,TRY220,23#,281 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-37060 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37010 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| 88568-37020 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ｸﾘ-ﾝｴｱﾌｲﾙﾀ) |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-37N90 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-25510 |
KDY221..T2,T3;KDY231,271,281;KDY221..T4..TB ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 88710-37760 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-37081 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90119-06448 | ||||
| 90119-06536 | ||||
| 90119-08C27 | ||||
| 90178-06018 | ||||
| 91551-80628 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
