KDY281-PSMDY (2007)
Toyota Dyna/Toyoace
Production
Sep 2007
-
Sep 9999
Engine
1KDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0107-1610)

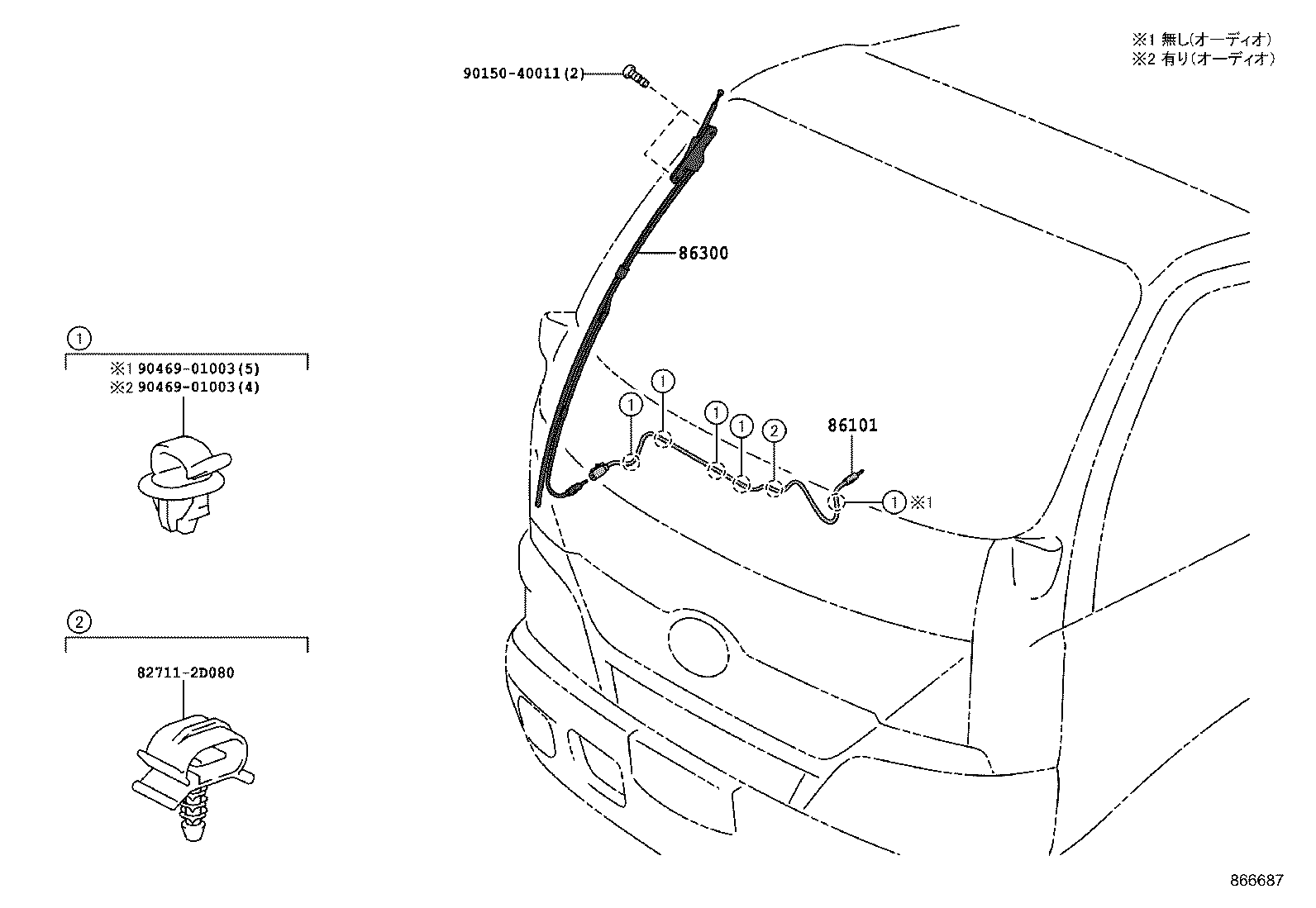

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-37110 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| Common parts | ||||
| 82711-2D080 | ||||
| 90150-40011 | ||||
(1610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-37060 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-37110 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| Common parts | ||||
| 82711-2D080 | ||||
| 90150-40011 | ||||
| 90469-01003 | ||||
