KDY281-PSMDY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999

Engine 1KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

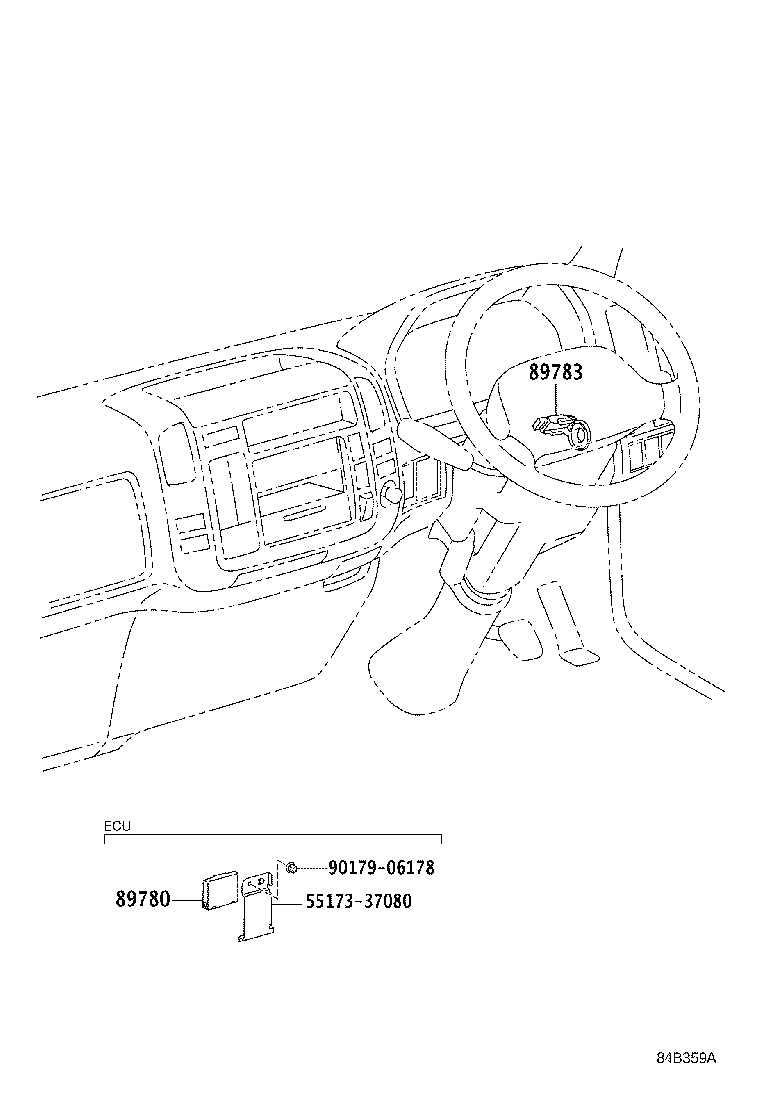

(1008-1610)KDY221,231,241,271,281,TRY220,230

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-25010	KDY221,231,241,271,281,TRY220,230	08/2010 - 12/2999	1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-37031	KDY221,231,241,271,281,TRY220,230	10/2016 - 02/2017	1
89783-37033	KDY221,231,241,271,281,TRY220,230	08/2019 - 12/2999	1
89783-37032	KDY221,231,241,271,281,TRY220,230	03/2017 - 07/2019	1
89783-37010	KDY221,231,241,271,281,TRY220,230	08/2010 - 10/2016	1
Common parts
55173-37080
90179-06178

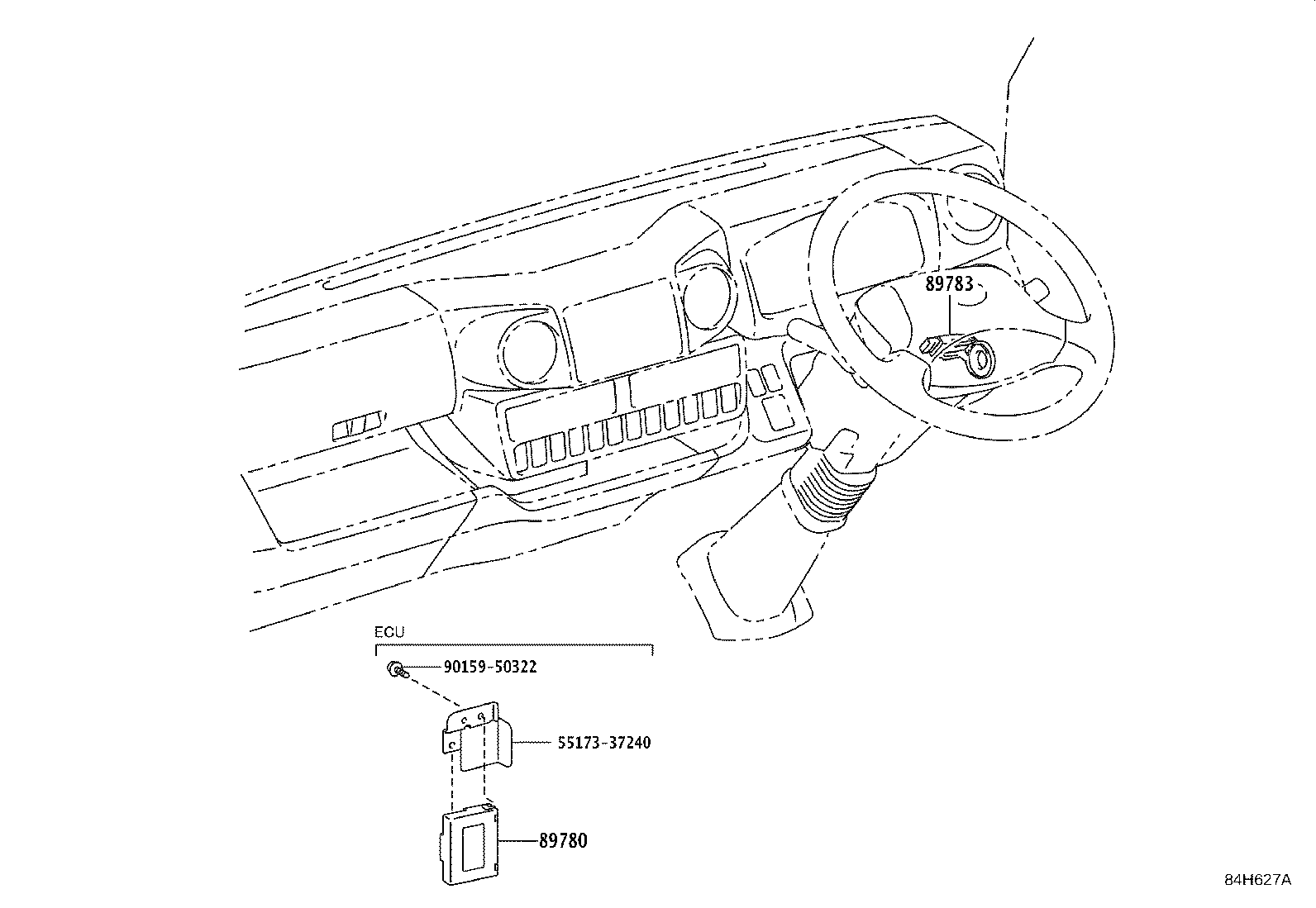

(1610- )KDY221,231,241,271,281,TRY220,230

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-25010	KDY221,231,241,271,281,TRY220,230	08/2010 - 12/2999	1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-37031	KDY221,231,241,271,281,TRY220,230	10/2016 - 02/2017	1
89783-37033	KDY221,231,241,271,281,TRY220,230	08/2019 - 12/2999	1
89783-37032	KDY221,231,241,271,281,TRY220,230	03/2017 - 07/2019	1
89783-37010	KDY221,231,241,271,281,TRY220,230	08/2010 - 10/2016	1
Common parts
55173-37240
90159-50322
