KDY281-PSMDY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999

Engine 1KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

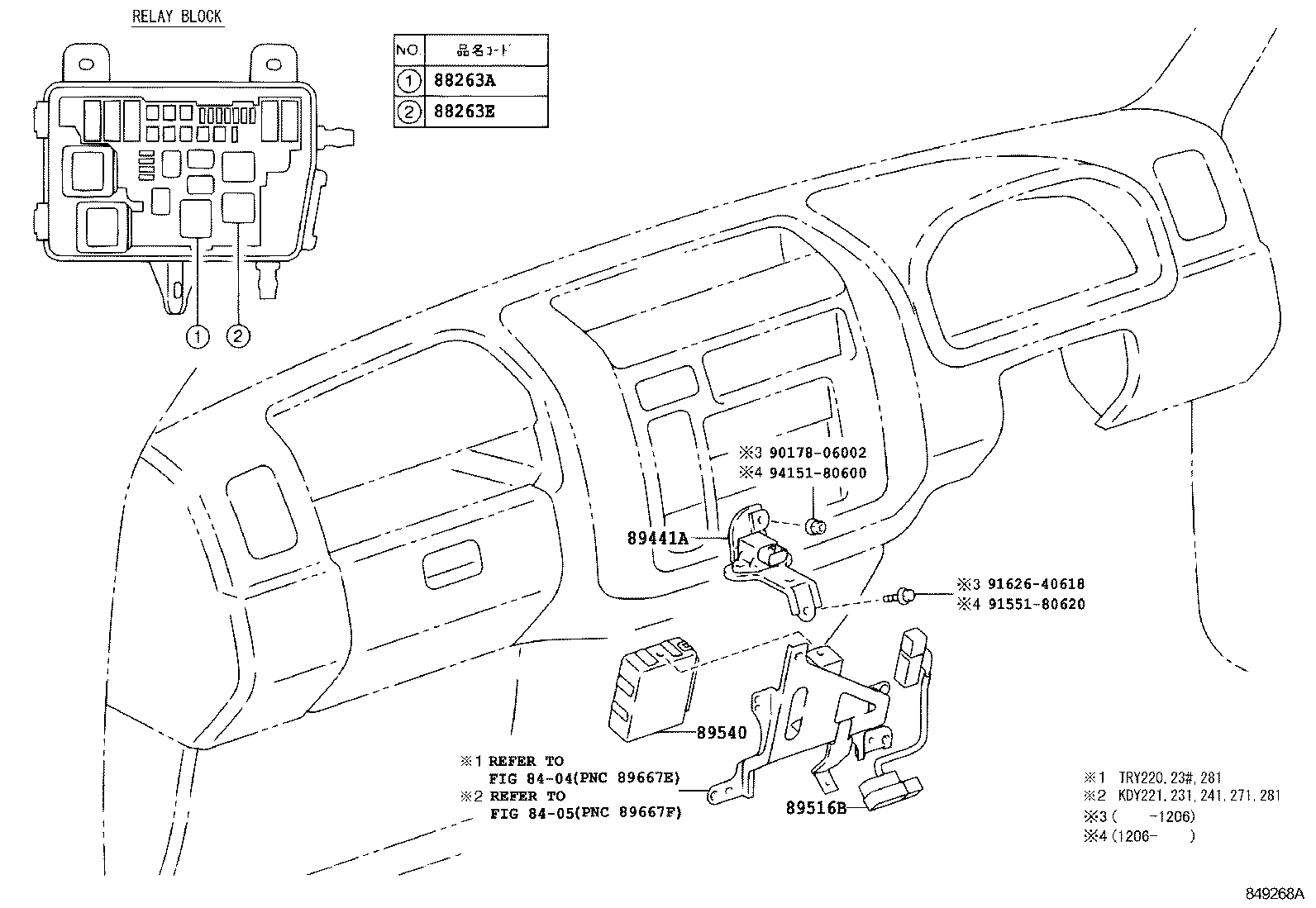

ILLUST NO. 1 OF 2(0709-1610)

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
88263A - RELAY, SKID CONTROL
88263-37010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
88263E - RELAY, SKID CONTROL NO.2
88263-37020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
89441A - SENSOR, DECELERATION
89440-37010	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 05/2012	1
89440-37011	KDY271,281,TRY281	06/2012 - 10/2016	1
89441-60030	KDY271,281,TRY281	10/2016 - 12/2999	1
89516B - WIRE, SKID CONTROL SENSOR
89516-25050	KDY271,281,TRY281	09/2007 - 10/2016	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-25050	KDY271,281,TRY281	09/2007 - 10/2016	1
89540-25070	KDY271,281,TRY281	10/2016 - 12/2999	1
Common parts
90178-06002
91551-80620
91626-40618
94151-80600
Linked diagrams
8404
8405

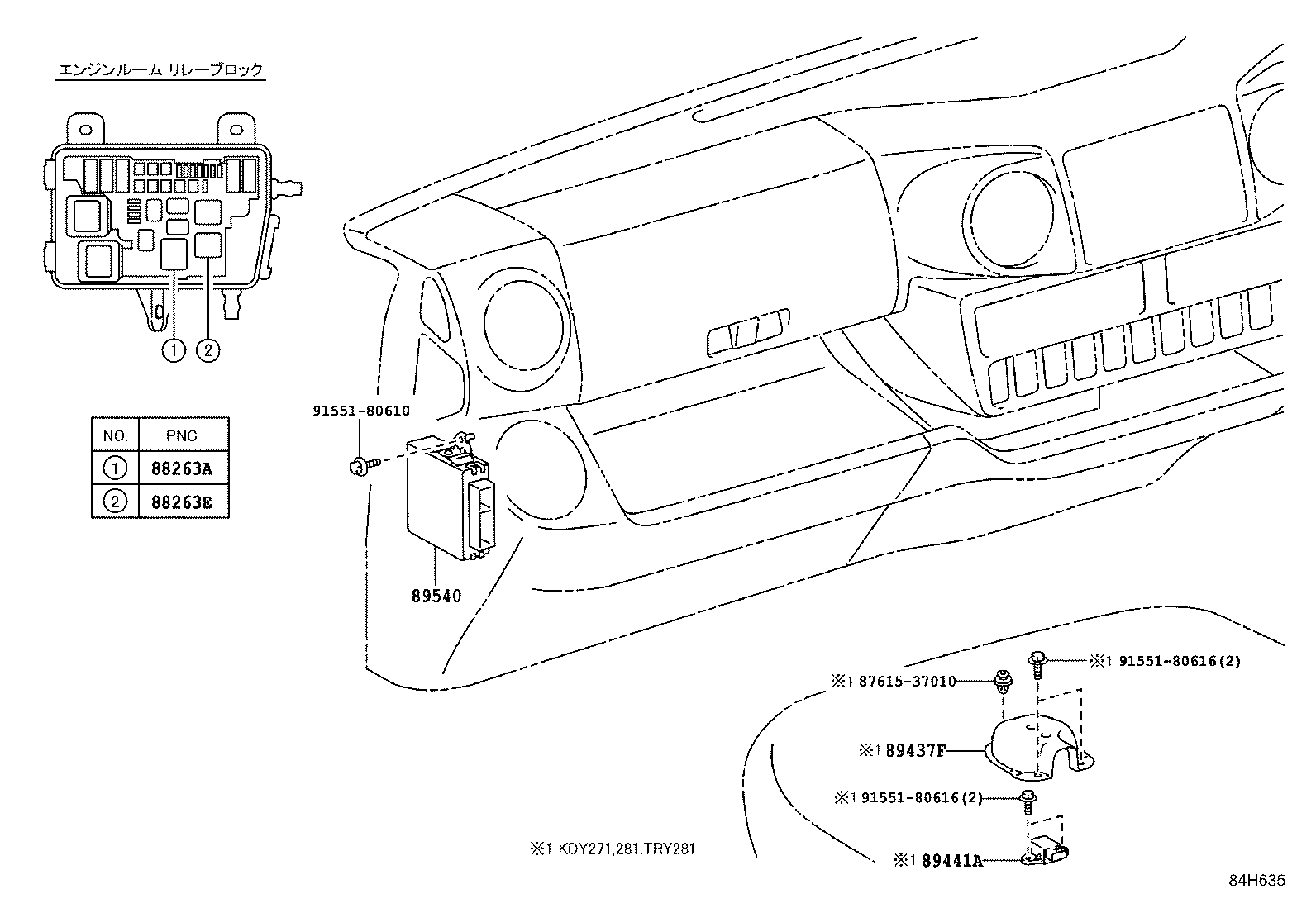

ILLUST NO. 1 OF 2(1610- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
88263A - RELAY, SKID CONTROL
88263-37010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
88263E - RELAY, SKID CONTROL NO.2
88263-37020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
89437F - COVER, SENSOR
89437-37021	KDY271,281,TRY281	10/2016 - 12/2999	1
89441A - SENSOR, DECELERATION
89440-37010	KDY27#,28#,290,LY270,280,290,RZY281,TRY281	07/2001 - 05/2012	1
89440-37011	KDY271,281,TRY281	06/2012 - 10/2016	1
89441-60030	KDY271,281,TRY281	10/2016 - 12/2999	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-25050	KDY271,281,TRY281	09/2007 - 10/2016	1
89540-25070	KDY271,281,TRY281	10/2016 - 12/2999	1
Common parts
87615-37010
91551-80610
91551-80616
