Toyota Dyna/toyoace KDY281 ELECTRONIC CONTROLED DIESEL (ECD)

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
KDY281-PSMDY (2007)
8405 - ELECTRONIC CONTROLED DIESEL (ECD)

KDY281-PSMDY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999

Engine 1KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

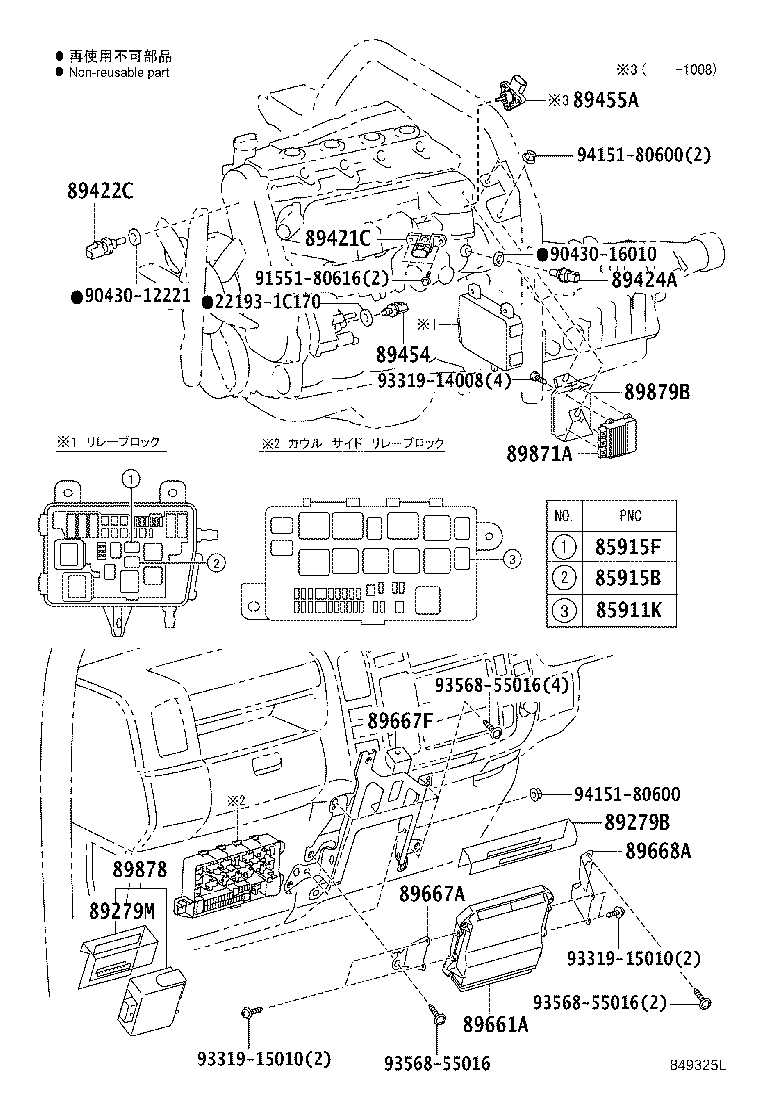

(0709-1610)KDY221,231,241,271,281

Click highlighted areas on diagram

Part #	Description	Period	Qty
85911K - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR)
90987-02027	KDY221,231,241,271,281	09/2007 - 12/2999	1
85915F - RELAY, SPILL VALVE
90987-02027	KDY221,231,241,271,281	09/2007 - 12/2999	1
89279B - COVER, DIESEL ENGINE CONTROL COMPUTOR
89279-25020	KDY221,231,241,271,281	09/2007 - 10/2016	1
89279M - COVER
89279-25040	KDY221,231,241,271,281	09/2007 - 08/2010	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	KDY221,231,241,271,281	09/2007 - 12/2999	1
89661A - COMPUTER, ENGINE CONTROL
89661-25350	KDY271,281..MTM DENSO	08/2010 - 05/2012	1
89661-25410	KDY271,281..MTM DENSO	06/2012 - 05/2015	1
89661-25240	KDY271,281..MTM DENSO	09/2007 - 08/2010	1
89661-25510	KDY271,281..MTM DENSO	05/2015 - 10/2016	1
89661-25511	KDY271,281..MTM DENSO	10/2016 - 12/2999	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-25150	KDY221,231,241,271,281	10/2016 - 12/2999	1
89667-25050	KDY221,231,241,271,281	09/2007 - 10/2016	1
89667F - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-25080	KDY221,231,241,271,281	09/2007 - 10/2016	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-25140	KDY221,231,241,271,281	10/2016 - 12/2999	1
89668-25060	KDY221,231,241,271,281	09/2007 - 10/2016	1
89871A - DRIVER, INJECTOR
89871-25010	KDY221,231,241,271,281	09/2007 - 08/2010	1
89871-20080	KDY221,231,241,271,281	08/2010 - 12/2999	1
89878 - DRIVER, TURBO MOTOR
89878-25030	KDY221,231,241,271,281	09/2007 - 04/2009	1
89878-25040	KDY221,231,241,271,281	05/2009 - 08/2010	1
89879B - BRACKET, INJECTOR DRIVER
89879-25040	KDY221,231,241,271,281..TW1,TW2,TW3,TW4,VAN	08/2010 - 12/2999	1
Common parts
22193-1C170
90430-12221
90430-16010
91551-80616
93319-14008
93319-15010
93568-55016
94151-80600

(1610- )KDY221,231,241,271,281

Click highlighted areas on diagram

Part #	Description	Period	Qty
85911K - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR)
90987-02027	KDY221,231,241,271,281	09/2007 - 12/2999	1
85915F - RELAY, SPILL VALVE
90987-02027	KDY221,231,241,271,281	09/2007 - 12/2999	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	KDY221,231,241,271,281	09/2007 - 12/2999	1
89661A - COMPUTER, ENGINE CONTROL
89661-25350	KDY271,281..MTM DENSO	08/2010 - 05/2012	1
89661-25410	KDY271,281..MTM DENSO	06/2012 - 05/2015	1
89661-25240	KDY271,281..MTM DENSO	09/2007 - 08/2010	1
89661-25510	KDY271,281..MTM DENSO	05/2015 - 10/2016	1
89661-25511	KDY271,281..MTM DENSO	10/2016 - 12/2999	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-25150	KDY221,231,241,271,281	10/2016 - 12/2999	1
89667-25050	KDY221,231,241,271,281	09/2007 - 10/2016	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-25140	KDY221,231,241,271,281	10/2016 - 12/2999	1
89668-25060	KDY221,231,241,271,281	09/2007 - 10/2016	1
89871A - DRIVER, INJECTOR
89871-25010	KDY221,231,241,271,281	09/2007 - 08/2010	1
89871-20080	KDY221,231,241,271,281	08/2010 - 12/2999	1
89879B - BRACKET, INJECTOR DRIVER
89879-25040	KDY221,231,241,271,281..TW1,TW2,TW3,TW4,VAN	08/2010 - 12/2999	1
Common parts
22193-1C170
90159-50386
90430-12221
90430-16010
91551-80610
91551-80616
93319-14008
94151-80600
Linked diagrams
8202

KDY281-PSMDY (2007)

(0709-1610)KDY221,231,241,271,281

(1610- )KDY221,231,241,271,281
