KDY281-PSMDY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

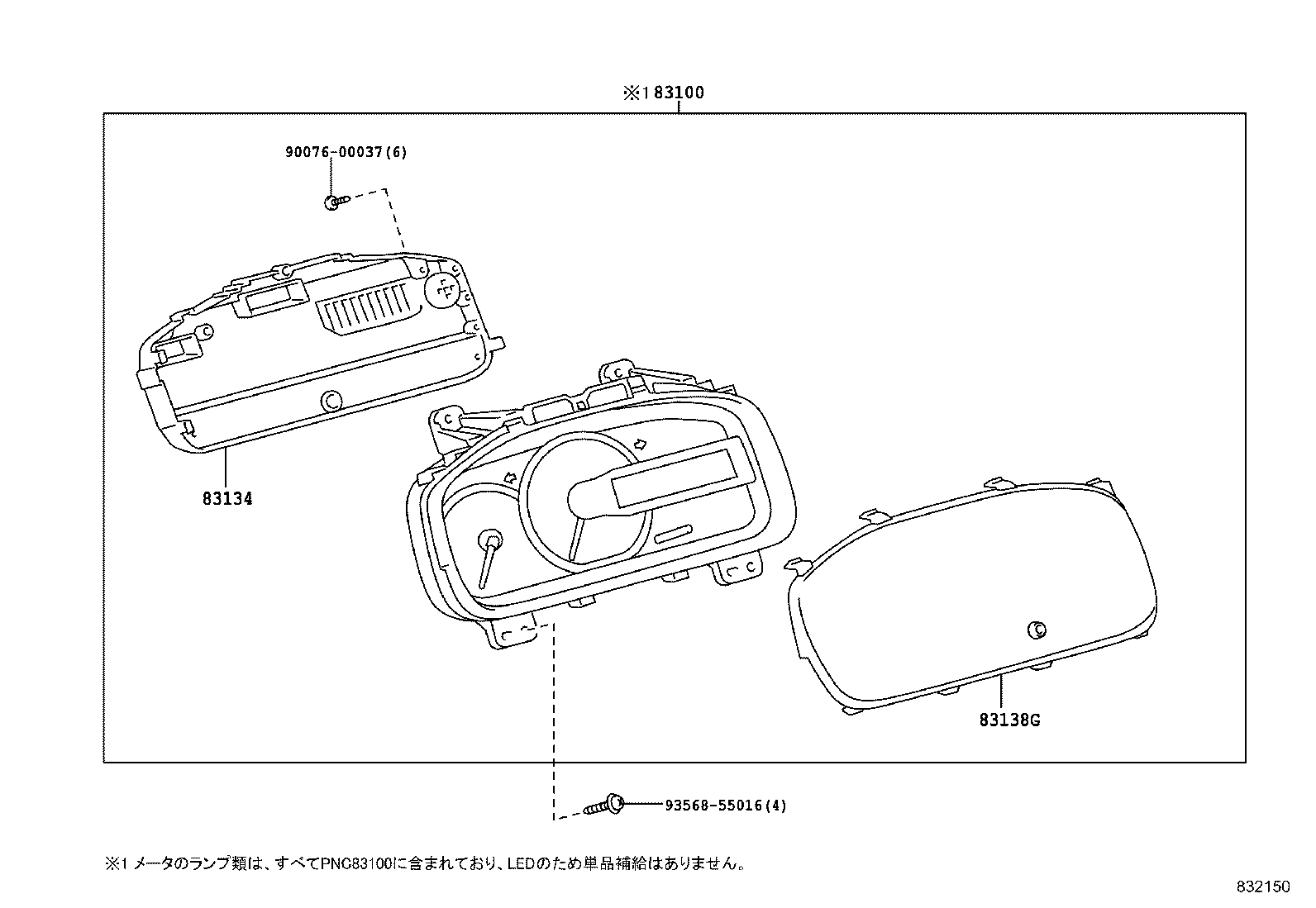

ILLUST NO. 1 OF 2(1610- )

Click highlighted areas on diagram

ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ

diagram 83100 83134 83138G 9007600037 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-25680

KDY221,231,241,271,281..(TW1,TW2,TW3,TW4,VAN)..MTM

YAZAKI

 1
83800-25850

KDY221,231,241,271,281..(TW1,TW2,TW3,TW4,VAN)..MTM

YAZAKI

 1
83800-25720

TRY231,281..MTM

YAZAKI

 1
83800-25A90

KDY221,231,241,271,281..(TW1,TW2,TW3,TW4,VAN)..MTM

YAZAKI

 1
83800-25890

TRY231,281..MTM

YAZAKI

 1
83800-25D00

TRY231,281..MTM

YAZAKI

 1
83800-25C20

KDY231,241,271,281..(TW1,TW2,TW3,TW4,VAN)..MTM

YAZAKI

 1
83134 - COVER, COMBINATION METER, NO.1
83821-37M10

KDY221,231,241,271,281,TRY220,23#,281

 1
83138G - GLASS, COMBINATION METER
83852-37250

KDY230..TS..ATM..WT;KDY220,230,270,280..(T2,T3,T4)..MTM;KDY221,231,241,271,281,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
83852-37M10

KDY221,231,241,271,281,TRY220,23#,281

 1
Common parts
90076-00037
93568-55016
