KDY281-PSMDY (2007)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 8(0107-1610)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-25F20 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25F20 |
1 | ||
| 82131-25F00 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25F00 |
1 | ||
| 82131-25G60 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25G60 |
1 | ||
| 82131-25L70 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25L70 |
1 | ||
| 82131-25L50 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25L50 |
1 | ||
| 82131-25N10 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25N10 |
1 | ||
| 82131-25P20 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25P20 |
1 | ||
| 82131-25P40 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25P40 |
1 | ||
| 82131-25S20 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25S20 |
1 | ||
| 82131-25T40 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25T40 |
1 | ||
| 82131-25U60 |
TRY220,23#,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25U60 |
1 | ||
| 82131-25T20 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25T20 |
1 | ||
| 82131-25U50 |
TRY220,23#,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25U50 |
1 | ||
| 82131-25V10 |
KDY221,231,271,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25V10 |
1 | ||
| 82131-25U70 |
TRY220,23#,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25U70 |
1 | ||
| 82131-25V00 |
KDY221,231,271,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25V00 |
1 | ||
| 82131-25V20 |
KDY221,231,271,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25V20 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-25190 |
KDY221,231,241,271,281,TRY220,23#,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25190 |
1 | ||
| 82141-25200 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25200 |
1 | ||
| 82141-25350 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25350 |
1 | ||
| 82141-25280 |
KDY221,231,241,271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25280 |
1 | ||
| 82141-25360 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25360 |
1 | ||
| 82141-25291 |
KDY221,231,241,271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25291 |
1 | ||
| 82141-25290 |
KDY221,231,241,271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25290 |
1 | ||
| 82141-25361 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25361 |
1 | ||
| 82141-25281 |
KDY221,231,241,271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25281 |
1 | ||
| 82141-25351 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25351 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-37080 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-37090 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-37120 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-37370 |
KDY221,231,241,271,281,TRY220,230 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 82817-37330 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 82817-37330 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 89794 - WIRE, TRANSPONDER KEY | ||||
| 89794-25010 |
KDY221,231,241,271,281,TRY220,230 |
1 | ||
| Common parts | ||||
| 82712-37010 | ||||
| 88578-25070 | ||||
| 88578-25110 | ||||
| 88578-30360 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

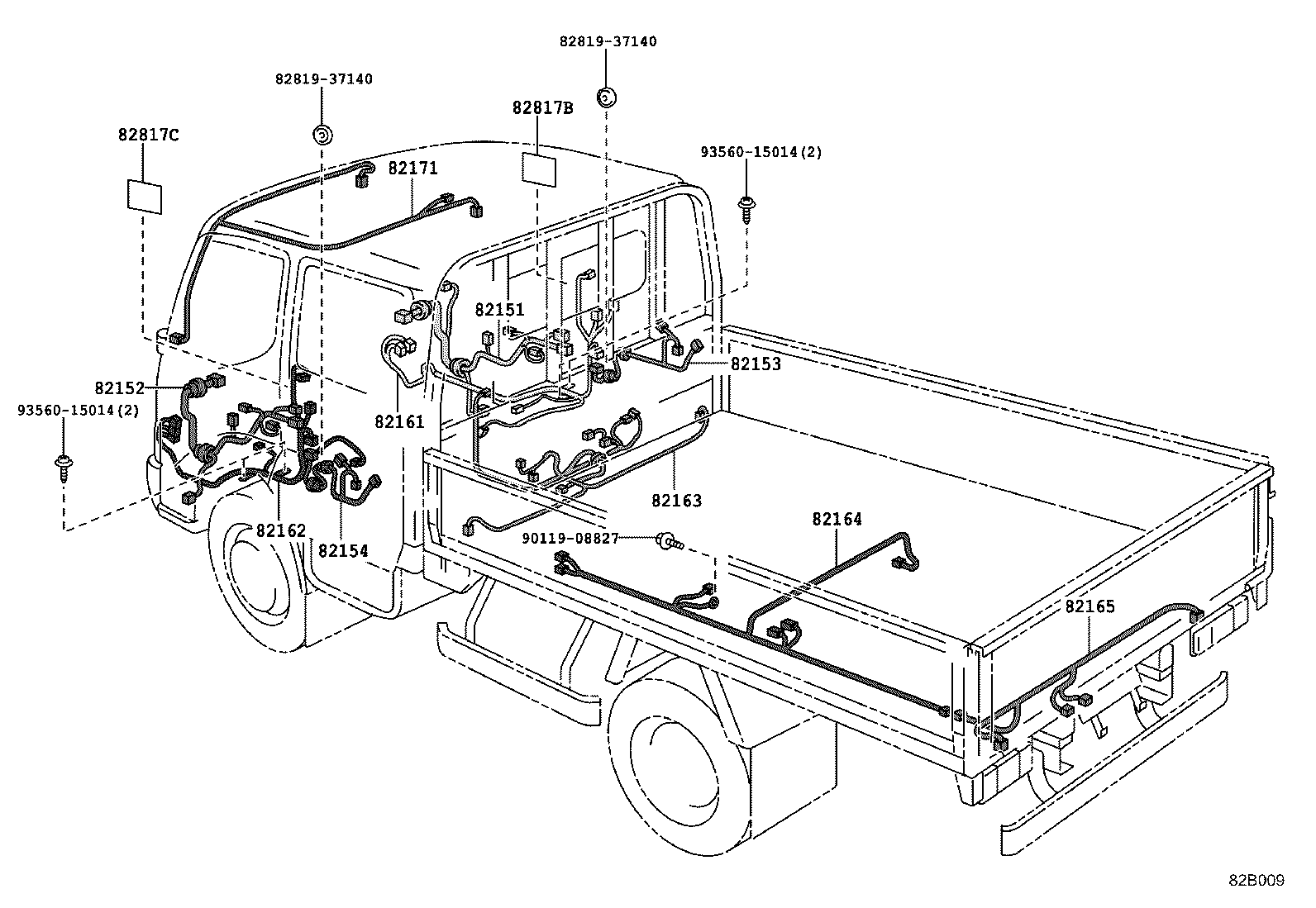

ILLUST NO. 3 OF 8(0107-1610)TW1,TW2,TW3,TW4
ﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-25410 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25440 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝｶｸﾐﾗｰ) |
1 | ||
| 82151-25400 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25510 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25500 |
KDY221..T4..TB;KDY231..T4..CBU;KDY231..T4..TB..IV3;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾃﾞﾝｶｸﾐﾗｰ) |
1 | ||
| 82151-25480 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝｶｸﾐﾗｰ) |
1 | ||
| 82151-25490 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-37700 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜｰ ﾄﾞｱﾛｯｸ) |
1 | ||
| 82151-25550 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25460 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷﾉﾐ)) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25520 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25560 |
KDY221..T4..TB;KDY221..T2,T3,TW1;KDY231,241,271,281,TRY220,23#,281 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25600 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25450 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25530 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25580 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-37720 |
KDY221..T4..TB;KDY221..T2,T3,TW1;KDY231,241,271,281,TRY220,23#,281 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25570 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25540 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜｰ ﾄﾞｱﾛｯｸ) |
1 | ||
| 82151-37710 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25590 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷﾉﾐ)) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25630 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25620 |
KDY221..T4..TB;KDY231..T4..CBU;KDY231..T4..TB..IV3;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ))) |
1 | ||
| 82151-25650 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37B11 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ) & ﾅｼ(ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-25640 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37A82 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25610 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-37B31 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37B82 |
KDY221..T2,T3;KDY221..T4..TB;KDY231,241,271,281,TRY220,23#,281 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37A30 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37B72 |
KDY221..T2,T3;KDY221..T4..TB;KDY231,241,271,281,TRY220,23#,281 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) & ﾅｼ(ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-25220 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) |
1 | ||
| 82152-25420 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25370 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-37670 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25380 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-25460 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25520 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-25470 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-37680 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25510 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)) |
1 | ||
| 82152-37850 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25450 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37A10 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25480 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾘﾔ ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82153-25030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82153-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾘﾔ ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153-25030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-25220 |
KDY231,281,TRY230..TW1,TW2,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25220 |
1 | ||
| 82161-25221 |
KDY231,281,TRY230..TW1,TW2,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25221 |
1 | ||
| 82161-25610 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25610 |
1 | ||
| 82161-37J20 |
KDY231,281,TRY230..TW1,TW2,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-37J20 |
1 | ||
| 82161-25620 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25620 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 82162-25040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｸ-ﾗ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82162-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82162-25050 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｸ-ﾗ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82162-25260 |
KDY271,281..TW1,TW3 |
1 | ||
| 82162-25280 |
KDY271,281..TW1,TW3 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-2E092 |
KDY231,281,TRY230..ST |
1 | ||
| 82164-25A70 |
KDY231,281,TRY230..ST |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-25030 |
KDY22#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1..CBU |
1 | ||
| 82165-25130 |
KDY221,271,281,TRY220,230..TW1..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37791 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 82171-25340 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 |
1 | ||
| Common parts | ||||
| 82712-25020 | ||||
| 82819-37140 | ||||
| 90119-08827 | ||||
| 93560-15014 | ||||

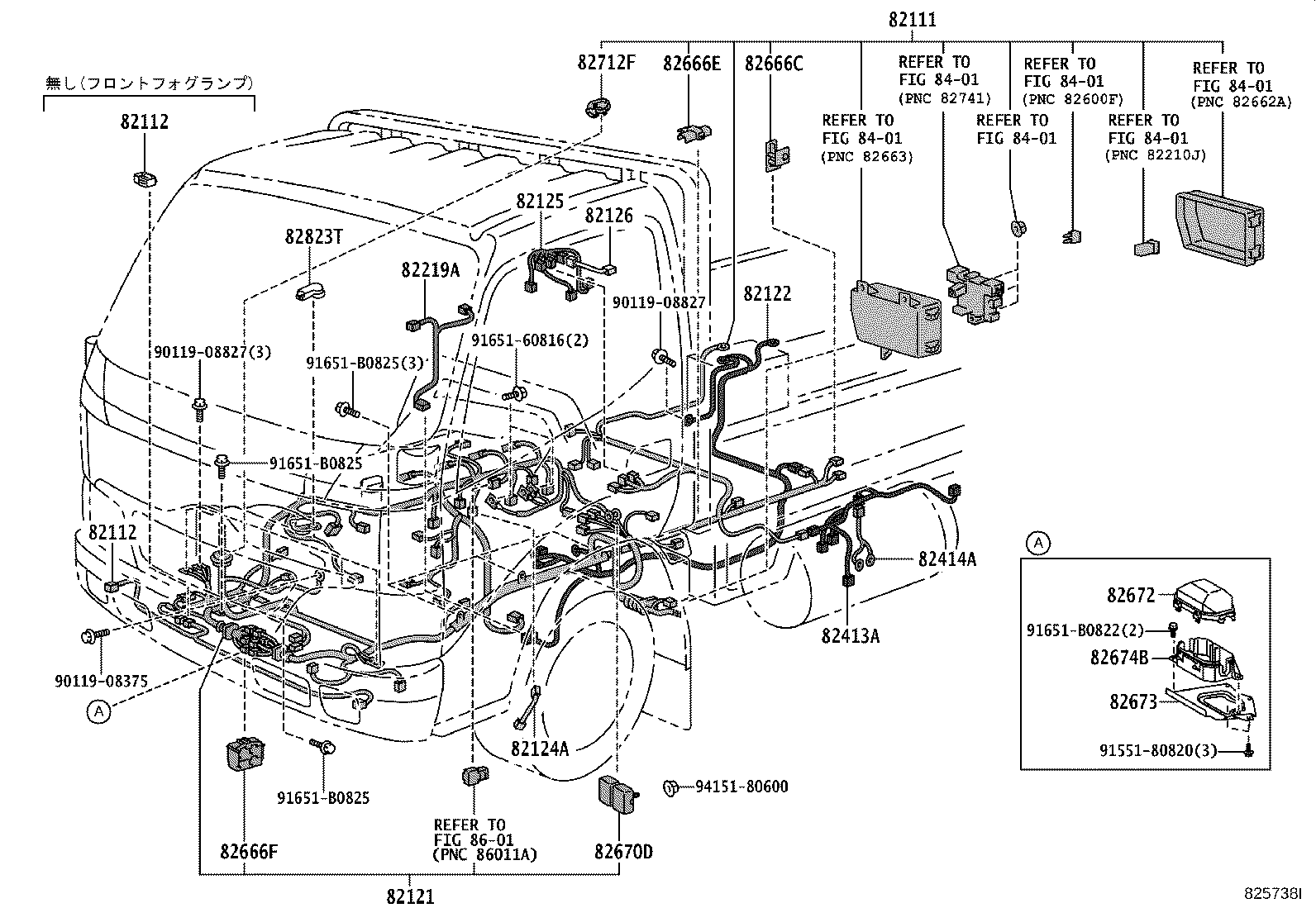

ILLUST NO. 1 OF 8(0712- )TRY231,281
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-25J10 |
TRY231,281..MTM ｱﾘ(ABS) |
1 | ||
| 82111-25F20 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM |
1 | ||
| 82111-25F30 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM ｱﾘ(ABS) |
1 | ||
| 82111-25F31 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM ｱﾘ(ABS) |
1 | ||
| 82111-25F21 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM |
1 | ||
| 82111-25J00 |
TRY231,281..MTM |
1 | ||
| 82111-25P00 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM |
1 | ||
| 82111-25P10 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM ｱﾘ(ABS) |
1 | ||
| 82111-25J11 |
TRY231,281..MTM ｱﾘ(ABS) |
1 | ||
| 82111-25J01 |
TRY231,281..MTM |
1 | ||
| 82111-25P11 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM ｱﾘ(ABS) |
1 | ||
| 82111-25P01 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM |
1 | ||
| 82111-25J12 |
TRY231,281..MTM ｱﾘ(ABS) |
1 | ||
| 82111-25J02 |
TRY231,281..MTM |
1 | ||
| 82111-25P02 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM |
1 | ||
| 82111-25P12 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM ｱﾘ(ABS) |
1 | ||
| 82111-25L30 |
KDY231,271,281..(TW1,TW2,TW3,TW4)..MTM |
1 | ||
| 82111-25Q90 |
TRY231,281..MTM |
1 | ||
| 82111-25L31 |
KDY231,271,281..(TW1,TW2,TW3,TW4)..MTM |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-25070 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82112-25040 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82114-37220 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 82112-25060 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-25070 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82112-25040 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82114-37220 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 82112-25060 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-25550 |
KDY221,231,241,271,281 |
1 | ||
| 82121-25571 |
TRY231,281 |
1 | ||
| 82121-25570 |
TRY231,281 |
1 | ||
| 82121-25580 |
KDY221,231,241,271,281 |
1 | ||
| 82121-25600 |
KDY221,231,241,271,281 |
1 | ||
| 82121-25620 |
TRY231,281 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-25540 |
KDY221,231,271,281..MTM |
1 | ||
| 82122-25560 |
KDY221,231,271,281..MTM ｱﾘ(ﾊﾞﾂﾃﾘ=85D26L X 2) |
1 | ||
| 82122-25670 |
KDY221,231,271,281..(TW1,TW2,TW3,TW4)..MTM |
1 | ||
| 82122-25650 |
KDY221..T3..TS..MTM;KDY231..TW2..TB..MTM;KDY221..(T2,T4,TW1)..MTM;KDY231,271,281..(T2,T3,T4,TW1,TW3,TW4)..MTM ｱﾘ(ﾊﾞﾂﾃﾘ=85D26L X 2) |
1 | ||
| 82122-25640 |
TRY231,281 |
1 | ||
| 82122-25750 |
KDY221,231,271,281..MTM |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-43010 |
TRY231,281 |
1 | ||
| 82124-43011 |
TRY231,281 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-25130 |
KDY281..15T;KDY281..TW1 |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-25010 |
TRY231,281 |
1 | ||
| 82414A - WIRE, FUEL TANK, NO.2 | ||||
| 82414-25010 |
TRY231,281 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-25030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-25010 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-25022 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 82674B - COVER, JUNCTION BLOCK, LOWER | ||||
| 82674-25010 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 82712F - SUPPORT, WIRING HARNESS | ||||
| 82712-37510 |
TRY231,281 |
1 | ||
| 82712-37510 |
KDY221,231,241,271,281,TRY220,230 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 91551-80820 | ||||
| 91651-60816 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 2 OF 5(1610- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-25F20 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25F20 |
1 | ||
| 82131-25F00 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25F00 |
1 | ||
| 82131-25G60 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25G60 |
1 | ||
| 82131-25L70 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25L70 |
1 | ||
| 82131-25L50 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25L50 |
1 | ||
| 82131-25N10 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25N10 |
1 | ||
| 82131-25P20 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25P20 |
1 | ||
| 82131-25P40 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25P40 |
1 | ||
| 82131-25S20 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25S20 |
1 | ||
| 82131-25T40 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25T40 |
1 | ||
| 82131-25U60 |
TRY220,23#,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25U60 |
1 | ||
| 82131-25T20 |
KDY271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25T20 |
1 | ||
| 82131-25U50 |
TRY220,23#,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25U50 |
1 | ||
| 82131-25V10 |
KDY221,231,271,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25V10 |
1 | ||
| 82131-25U70 |
TRY220,23#,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25U70 |
1 | ||
| 82131-25V00 |
KDY221,231,271,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25V00 |
1 | ||
| 82131-25V20 |
KDY221,231,271,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25V20 |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-25030 |
KDY221,231,241,271,281..MTM |
1 | ||
| 82132-37220 |
TRY220,23#,281;KDY221,231,281..ATM |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-37060 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-25190 |
KDY221,231,241,271,281,TRY220,23#,281 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25190 |
1 | ||
| 82141-25200 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25200 |
1 | ||
| 82141-25350 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25350 |
1 | ||
| 82141-25280 |
KDY221,231,241,271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25280 |
1 | ||
| 82141-25360 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25360 |
1 | ||
| 82141-25291 |
KDY221,231,241,271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25291 |
1 | ||
| 82141-25290 |
KDY221,231,241,271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25290 |
1 | ||
| 82141-25361 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25361 |
1 | ||
| 82141-25281 |
KDY221,231,241,271,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25281 |
1 | ||
| 82141-25351 |
TRY231,281..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25351 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-25110 |
KDY271,281..TW1,TW3 |
1 | ||
| 82142-25040 |
TRY231,281 |
1 | ||
| 82142-25111 |
KDY271,281..TW1,TW3 |
1 | ||
| 82142-25041 |
TRY231,281 |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-25020 |
KDY221,231,241,271,281 |
1 | ||
| 82213-25100 |
TRY231,281 |
1 | ||
| 82213-25040 |
KDY221..T2,T3;KDY221..T4..TB;KDY231,241,271,281 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 82213-25110 |
TRY231,281 ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-37420 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 82712C - SUPPORT, WIRING HARNESS, NO.1 | ||||
| 82712-37401 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 82817-37330 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 82817-37330 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 88578-25070 | ||||
| 88578-25110 | ||||
| 88578-30360 | ||||
| 89539-37062 | ||||
| 89539-37070 | ||||
| 90119-06923 | ||||
| 90159-50322 | ||||
| 90467-07041P5 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
ILLUST NO. 3 OF 8(1610- )TW1,TW2,TW3,TW4
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-25410 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25440 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝｶｸﾐﾗｰ) |
1 | ||
| 82151-25400 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25510 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25500 |
KDY221..T4..TB;KDY231..T4..CBU;KDY231..T4..TB..IV3;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾃﾞﾝｶｸﾐﾗｰ) |
1 | ||
| 82151-25480 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝｶｸﾐﾗｰ) |
1 | ||
| 82151-25490 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-37700 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜｰ ﾄﾞｱﾛｯｸ) |
1 | ||
| 82151-25550 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25460 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷﾉﾐ)) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25520 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25560 |
KDY221..T4..TB;KDY221..T2,T3,TW1;KDY231,241,271,281,TRY220,23#,281 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25600 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25450 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25530 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25580 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-37720 |
KDY221..T4..TB;KDY221..T2,T3,TW1;KDY231,241,271,281,TRY220,23#,281 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25570 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) |
1 | ||
| 82151-25540 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜｰ ﾄﾞｱﾛｯｸ) |
1 | ||
| 82151-37710 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25590 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷﾉﾐ)) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25630 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-25620 |
KDY221..T4..TB;KDY231..T4..CBU;KDY231..T4..TB..IV3;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ))) |
1 | ||
| 82151-25650 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37B11 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ) & ﾅｼ(ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-25640 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37A82 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-25610 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ)) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82151-37B31 |
KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37B82 |
KDY221..T2,T3;KDY221..T4..TB;KDY231,241,271,281,TRY220,23#,281 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37A30 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82151-37B72 |
KDY221..T2,T3;KDY221..T4..TB;KDY231,241,271,281,TRY220,23#,281 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) & ﾅｼ(ﾃﾞﾝｶｸﾘﾓｺﾝﾐﾗｰ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-25220 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) |
1 | ||
| 82152-25420 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25370 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-37670 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25380 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-25460 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25520 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-25470 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82152-37680 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25510 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) & ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)) |
1 | ||
| 82152-37850 |
KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25450 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37A10 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-25480 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾘﾔ ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82153-25030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82153-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾘﾔ ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153-25030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-25220 |
KDY231,281,TRY230..TW1,TW2,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25220 |
1 | ||
| 82161-25221 |
KDY231,281,TRY230..TW1,TW2,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25221 |
1 | ||
| 82161-25610 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25610 |
1 | ||
| 82161-37J20 |
KDY231,281,TRY230..TW1,TW2,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-37J20 |
1 | ||
| 82161-25620 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-25620 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-25010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 82162-25040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｸ-ﾗ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82162-25020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82162-25050 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ｸ-ﾗ & ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82162-25260 |
KDY271,281..TW1,TW3 |
1 | ||
| 82162-25280 |
KDY271,281..TW1,TW3 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-25060 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ & ﾘﾔ ｸ-ﾗ) |
1 | ||
| 82163-25070 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 |
1 | ||
| 82163-25080 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 ﾅｼ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-2E092 |
KDY231,281,TRY230..ST |
1 | ||
| 82164-25A70 |
KDY231,281,TRY230..ST |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-25030 |
KDY22#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1..CBU |
1 | ||
| 82165-25130 |
KDY221,271,281,TRY220,230..TW1..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37791 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 82171-25340 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12400 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12400 |
KDY231,271,281,TRY230..TW1,TW2,TW3,TW4 |
1 | ||
| Common parts | ||||
| 82819-37140 | ||||
| 90119-08827 | ||||
| 93560-15014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
