Toyota Dyna/toyoace KDY281 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
KDY281-PSMDY (2007)
5252 - FRONT BUMPER & BUMPER STAY

KDY281-PSMDY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999

Engine 1KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1206-1610)

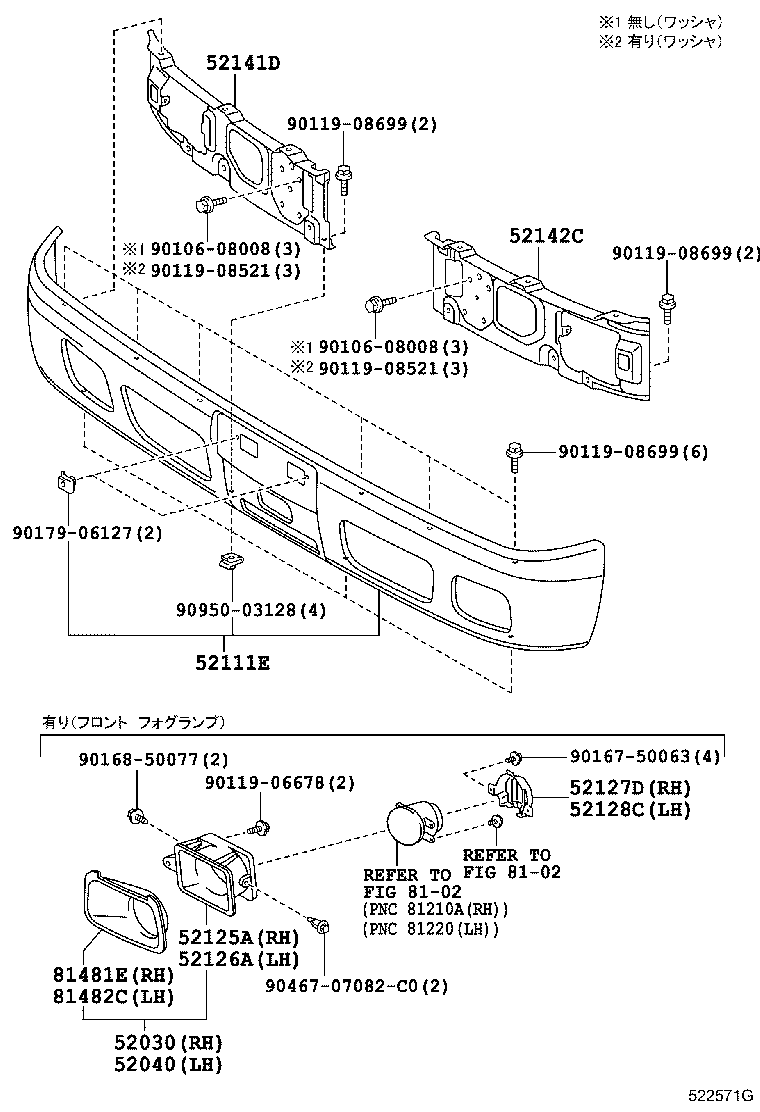

Click highlighted areas on diagram

Part #	Description	Period	Qty
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52030-25010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 塗装不要	10/2016 - 12/2999	1
52030-37010	KDY221,231,241,271,281,TRY220,23#,281 塗装不要	06/2012 - 10/2016	1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52040-37010	KDY221,231,241,271,281,TRY220,23#,281 塗装不要	06/2012 - 10/2016	1
52040-25010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 塗装不要	10/2016 - 12/2999	1
52111E - BAR, FRONT BUMPER
52111-37500H0	KDY221,231,241,271,281,TRY220,23#,281 TURQUOISE,766	06/2012 - 07/2012	1
52111-37501A0	KDY221,231,241,271,281,TRY220,23#,281 WHITE,058	08/2012 - 10/2016	1
52111-37500A0	KDY221,231,241,271,281,TRY220,23#,281 WHITE,058	06/2012 - 07/2012	1
52101-37A70A0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 WHITE,058	10/2016 - 05/2020	1
52111-37501J0	KDY221,231,241,271,281,TRY220,23#,281 BLUE,8P0	08/2012 - 10/2016	1
52101-37A70A0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) WHITE,058	10/2016 - 05/2020	1
52101-37A50	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) 塗装なし	10/2016 - 05/2020	1
52111-37500J0	KDY221,231,241,271,281,TRY220,23#,281 BLUE,8P0	06/2012 - 07/2012	1
52101-37A70H0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 TURQUOISE,766	10/2016 - 05/2020	1
52111-37501H0	KDY221,231,241,271,281,TRY220,23#,281 TURQUOISE,766	08/2012 - 10/2016	1
52111-37501B1	KDY271,281;KDY221,231,TRY220,23#,281..125T,15T SILVER ME.,199	08/2012 - 10/2016	1
52101-37A70J0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) BLUE,8P0	10/2016 - 05/2020	1
52101-37A70J0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 BLUE,8P0	10/2016 - 05/2020	1
52111-37550A0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),WHITE,058	10/2016 - 05/2020	1
52101-37A52	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) 塗装不要,塗装なし	05/2020 - 12/2999	1
52101-37A72H0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 TURQUOISE,766	05/2020 - 12/2999	1
52101-37A72A0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 WHITE,058	05/2020 - 12/2999	1
52101-37A70H0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) TURQUOISE,766	10/2016 - 05/2020	1
52111-37552A0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),WHITE,058	05/2020 - 12/2999	1
52111-37550H0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),TURQUOISE,766	10/2016 - 05/2020	1
52111-37550J0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),BLUE,8P0	10/2016 - 05/2020	1
52101-37A72J0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 BLUE,8P0	05/2020 - 12/2999	1
52111-37552H0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),TURQUOISE,766	05/2020 - 12/2999	1
52111-37550B1	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),SILVER ME.,199	10/2016 - 05/2020	1
52111-37552J0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),BLUE,8P0	05/2020 - 12/2999	1
52111-37552B1	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),SILVER ME.,199	05/2020 - 12/2999	1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-37030	KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3)	06/2012 - 10/2016	1
52126A - BRACKET, FOG LAMP MOUNTING, LH
52126-37030	KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3)	06/2012 - 10/2016	1
52127D - COVER, FRONT BUMPER HOLE, RH
81610-37180	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
52128C - COVER, FRONT BUMPER HOLE, LH
81620-37180	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
52141D - STAY, FRONT BUMPER, RH
52011-37052	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 07/2012	1
52011-37070	KDY221,231,241,271,281,TRY220,23#,281	10/2016 - 06/2018	1
52011-37170	KDY221,231,241,271,281,TRY220,23#,281	05/2019 - 12/2999	1
52011-37071	KDY221,231,241,271,281,TRY220,23#,281	07/2018 - 12/2018	1
52011-37072	KDY221,231,241,271,281,TRY220,23#,281	01/2019 - 05/2019	1
52011-37053	KDY221,231,241,271,281,TRY220,23#,281	08/2012 - 10/2016	1
52142C - STAY, FRONT BUMPER, LH
52012-37051	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 07/2012	1
52012-37070	KDY221,231,241,271,281,TRY220,23#,281	10/2016 - 06/2018	1
52012-37052	KDY221,231,241,271,281,TRY220,23#,281	08/2012 - 10/2016	1
52012-37170	KDY221,231,241,271,281,TRY220,23#,281	05/2019 - 12/2999	1
52012-37072	KDY221,231,241,271,281,TRY220,23#,281	01/2019 - 05/2019	1
52012-37071	KDY221,231,241,271,281,TRY220,23#,281	07/2018 - 12/2018	1
81481E - COVER, FOG LAMP, RH
81481-37040	KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
52127-37010	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81482C - COVER, FOG LAMP, LH
81482-37040	KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
52128-37010	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
Common parts
90106-08008
90119-06678
90119-08521
90119-08699
90167-50063
90168-50077
90179-06127
90467-07082C0
90950-03128
Linked diagrams
8102

(1610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52030-25010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 塗装不要	10/2016 - 12/2999	1
52030-37010	KDY221,231,241,271,281,TRY220,23#,281 塗装不要	06/2012 - 10/2016	1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52040-37010	KDY221,231,241,271,281,TRY220,23#,281 塗装不要	06/2012 - 10/2016	1
52040-25010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 塗装不要	10/2016 - 12/2999	1
52111E - BAR, FRONT BUMPER
52111-37500H0	KDY221,231,241,271,281,TRY220,23#,281 TURQUOISE,766	06/2012 - 07/2012	1
52111-37501A0	KDY221,231,241,271,281,TRY220,23#,281 WHITE,058	08/2012 - 10/2016	1
52111-37500A0	KDY221,231,241,271,281,TRY220,23#,281 WHITE,058	06/2012 - 07/2012	1
52101-37A70A0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 WHITE,058	10/2016 - 05/2020	1
52111-37501J0	KDY221,231,241,271,281,TRY220,23#,281 BLUE,8P0	08/2012 - 10/2016	1
52101-37A70A0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) WHITE,058	10/2016 - 05/2020	1
52101-37A50	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) 塗装なし	10/2016 - 05/2020	1
52111-37500J0	KDY221,231,241,271,281,TRY220,23#,281 BLUE,8P0	06/2012 - 07/2012	1
52101-37A70H0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 TURQUOISE,766	10/2016 - 05/2020	1
52111-37501H0	KDY221,231,241,271,281,TRY220,23#,281 TURQUOISE,766	08/2012 - 10/2016	1
52111-37501B1	KDY271,281;KDY221,231,TRY220,23#,281..125T,15T SILVER ME.,199	08/2012 - 10/2016	1
52101-37A70J0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) BLUE,8P0	10/2016 - 05/2020	1
52101-37A70J0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 BLUE,8P0	10/2016 - 05/2020	1
52111-37550A0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),WHITE,058	10/2016 - 05/2020	1
52101-37A52	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) 塗装不要,塗装なし	05/2020 - 12/2999	1
52101-37A72H0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 TURQUOISE,766	05/2020 - 12/2999	1
52101-37A72A0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 WHITE,058	05/2020 - 12/2999	1
52101-37A70H0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) TURQUOISE,766	10/2016 - 05/2020	1
52111-37552A0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),WHITE,058	05/2020 - 12/2999	1
52111-37550H0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),TURQUOISE,766	10/2016 - 05/2020	1
52111-37550J0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),BLUE,8P0	10/2016 - 05/2020	1
52101-37A72J0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 BLUE,8P0	05/2020 - 12/2999	1
52111-37552H0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),TURQUOISE,766	05/2020 - 12/2999	1
52111-37550B1	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),SILVER ME.,199	10/2016 - 05/2020	1
52111-37552J0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),BLUE,8P0	05/2020 - 12/2999	1
52111-37552B1	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),SILVER ME.,199	05/2020 - 12/2999	1
52111E - BAR, FRONT BUMPER
52111-37500H0	KDY221,231,241,271,281,TRY220,23#,281 TURQUOISE,766	06/2012 - 07/2012	1
52111-37501A0	KDY221,231,241,271,281,TRY220,23#,281 WHITE,058	08/2012 - 10/2016	1
52111-37500A0	KDY221,231,241,271,281,TRY220,23#,281 WHITE,058	06/2012 - 07/2012	1
52101-37A70A0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 WHITE,058	10/2016 - 05/2020	1
52111-37501J0	KDY221,231,241,271,281,TRY220,23#,281 BLUE,8P0	08/2012 - 10/2016	1
52101-37A70A0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) WHITE,058	10/2016 - 05/2020	1
52101-37A50	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) 塗装なし	10/2016 - 05/2020	1
52111-37500J0	KDY221,231,241,271,281,TRY220,23#,281 BLUE,8P0	06/2012 - 07/2012	1
52101-37A70H0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 TURQUOISE,766	10/2016 - 05/2020	1
52111-37501H0	KDY221,231,241,271,281,TRY220,23#,281 TURQUOISE,766	08/2012 - 10/2016	1
52111-37501B1	KDY271,281;KDY221,231,TRY220,23#,281..125T,15T SILVER ME.,199	08/2012 - 10/2016	1
52101-37A70J0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) BLUE,8P0	10/2016 - 05/2020	1
52101-37A70J0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 BLUE,8P0	10/2016 - 05/2020	1
52111-37550A0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),WHITE,058	10/2016 - 05/2020	1
52101-37A52	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) 塗装不要,塗装なし	05/2020 - 12/2999	1
52101-37A72H0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 TURQUOISE,766	05/2020 - 12/2999	1
52101-37A72A0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 WHITE,058	05/2020 - 12/2999	1
52101-37A70H0	KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3) TURQUOISE,766	10/2016 - 05/2020	1
52111-37552A0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),WHITE,058	05/2020 - 12/2999	1
52111-37550H0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),TURQUOISE,766	10/2016 - 05/2020	1
52111-37550J0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),BLUE,8P0	10/2016 - 05/2020	1
52101-37A72J0	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 BLUE,8P0	05/2020 - 12/2999	1
52111-37552H0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),TURQUOISE,766	05/2020 - 12/2999	1
52111-37550B1	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),SILVER ME.,199	10/2016 - 05/2020	1
52111-37552J0	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),BLUE,8P0	05/2020 - 12/2999	1
52111-37552B1	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾗﾝｽﾊﾟﾈﾙ),SILVER ME.,199	05/2020 - 12/2999	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-37250	KDY221,231,241,271,281,TRY220,23#,281	10/2016 - 12/2999	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-37250	KDY221,231,241,271,281,TRY220,23#,281	10/2016 - 12/2999	1
52127C - COVER, FRONT BUMPER HOLE
52127-37020	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
52141D - STAY, FRONT BUMPER, RH
52011-37052	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 07/2012	1
52011-37070	KDY221,231,241,271,281,TRY220,23#,281	10/2016 - 06/2018	1
52011-37170	KDY221,231,241,271,281,TRY220,23#,281	05/2019 - 12/2999	1
52011-37071	KDY221,231,241,271,281,TRY220,23#,281	07/2018 - 12/2018	1
52011-37072	KDY221,231,241,271,281,TRY220,23#,281	01/2019 - 05/2019	1
52011-37053	KDY221,231,241,271,281,TRY220,23#,281	08/2012 - 10/2016	1
52142C - STAY, FRONT BUMPER, LH
52012-37051	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 07/2012	1
52012-37070	KDY221,231,241,271,281,TRY220,23#,281	10/2016 - 06/2018	1
52012-37052	KDY221,231,241,271,281,TRY220,23#,281	08/2012 - 10/2016	1
52012-37170	KDY221,231,241,271,281,TRY220,23#,281	05/2019 - 12/2999	1
52012-37072	KDY221,231,241,271,281,TRY220,23#,281	01/2019 - 05/2019	1
52012-37071	KDY221,231,241,271,281,TRY220,23#,281	07/2018 - 12/2018	1
53901B - PANEL SUB-ASSY, FRONT VALANCE
53901-37030	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ﾒｯｷ	10/2016 - 12/2999	1
75392 - RETAINER, OUTSIDE MOULDING
75392-35220	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281	10/2016 - 12/2999	10
75392 - RETAINER, OUTSIDE MOULDING
75392-35220	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281	10/2016 - 12/2999	10
75392 - RETAINER, OUTSIDE MOULDING
75392-35220	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281	10/2016 - 12/2999	10
75392 - RETAINER, OUTSIDE MOULDING
75392-35220	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281	10/2016 - 12/2999	10
75392 - RETAINER, OUTSIDE MOULDING
75392-35220	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281	10/2016 - 12/2999	10
81481E - COVER, FOG LAMP, RH
81481-37040	KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
52127-37010	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81482C - COVER, FOG LAMP, LH
81482-37040	KDY221,231..T4..TB;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3);KDY241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
52128-37010	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
Common parts
90106-08008
90109-06396
90119-06678
Linked diagrams
8102

KDY281-PSMDY (2007)

(1206-1610)

(1610- )
