Toyota Dyna/toyoace KDY281 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
KDY281-PSMDY (2007)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

KDY281-PSMDY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999

Engine 1KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

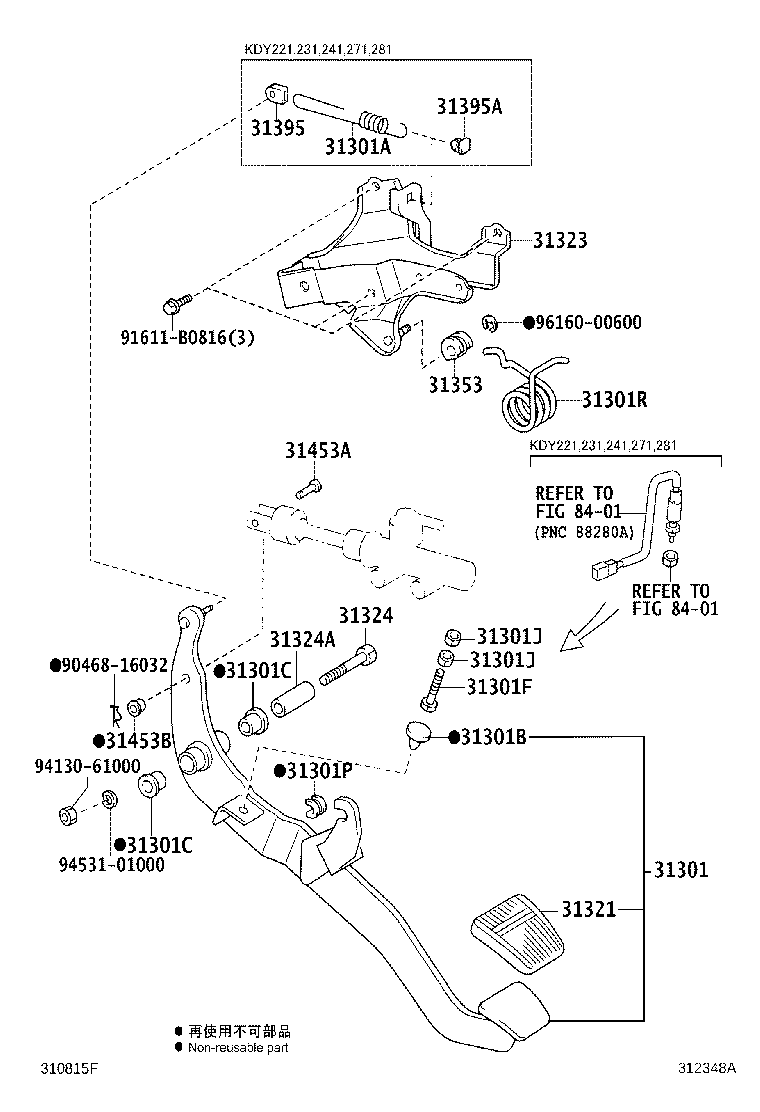

ILLUST NO. 1 OF 3(0107-1008)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31310-25070	KDY221,231,241,271,281,TRY220,23#,281..MTM	04/2009 - 10/2016	1
31301-25090	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31301 - PEDAL SUB-ASSY, CLUTCH
31310-25070	KDY221,231,241,271,281,TRY220,23#,281..MTM	04/2009 - 10/2016	1
31301-25090	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	4
90541-06036	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	2
90386-13015	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	2
90386-13015	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91111-41035	TRY220,23#,281..MTM	03/2009 - 10/2016	1
91551-80825	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
90101-08052	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
91111-41035	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	1
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91111-41035	TRY220,23#,281..MTM	03/2009 - 10/2016	1
91551-80825	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
90101-08052	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
91111-41035	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..(T2,T4)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,241,271,281,TRY220,23#,281..(T2,T3,T4,TW1,TW3,TW4,VAN)..MTM	10/2016 - 12/2999	1
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
94130-60800	KDY221,231,241,271,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
94120-41000	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	2
94120-41000	TRY220,23#,281..MTM	03/2009 - 10/2016	2
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..(T2,T4)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,241,271,281,TRY220,23#,281..(T2,T3,T4,TW1,TW3,TW4,VAN)..MTM	10/2016 - 12/2999	1
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
94130-60800	KDY221,231,241,271,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
94120-41000	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	2
94120-41000	TRY220,23#,281..MTM	03/2009 - 10/2016	2
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..(T2,T4)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,241,271,281,TRY220,23#,281..(T2,T3,T4,TW1,TW3,TW4,VAN)..MTM	10/2016 - 12/2999	1
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
94130-60800	KDY221,231,241,271,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
94120-41000	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	2
94120-41000	TRY220,23#,281..MTM	03/2009 - 10/2016	2
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017	LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
90389-06055	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03108	LY230,280..MTM..DSL;LY220,240,270,290,RZY220,230,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31316-25030	TRY220,23#,281..MTM	10/2016 - 12/2999	1
31316-25020	KDY221,231,241,271,281..MTM	10/2016 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-52020	KDY221,231,241,271,281,TRY220,23#,281..MTM	04/2017 - 12/2999	1
31321-14020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2017	1
31323 - BRACKET, CLUTCH PEDAL
55107-25040	KDY221..(T2,T4)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY241,271,281,TRY231,281..(03S,TB,TS)..MTM;KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..MTM..(125T,15T)	03/2009 - 12/2999	1
55107-25030	KDY221,231,241,271,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
31324 - SHAFT, CLUTCH PEDAL
91112-61070	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
91552-81060	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
90387-10003	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-35010	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31353-14010	LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM 長さ=23.5	07/2001 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
Common parts
90468-16032
91611-B0816
94130-61000
94531-01000
96160-00600

ILLUST NO. 1 OF 3(1008-1610)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31310-25070	KDY221,231,241,271,281,TRY220,23#,281..MTM	04/2009 - 10/2016	1
31301-25090	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	4
90541-06036	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	2
90386-13015	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	2
90386-13015	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91111-41035	TRY220,23#,281..MTM	03/2009 - 10/2016	1
91551-80825	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
90101-08052	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
91111-41035	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..(T2,T4)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,241,271,281,TRY220,23#,281..(T2,T3,T4,TW1,TW3,TW4,VAN)..MTM	10/2016 - 12/2999	1
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
94130-60800	KDY221,231,241,271,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
94120-41000	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	2
94120-41000	TRY220,23#,281..MTM	03/2009 - 10/2016	2
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..(T2,T4)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,241,271,281,TRY220,23#,281..(T2,T3,T4,TW1,TW3,TW4,VAN)..MTM	10/2016 - 12/2999	1
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
94130-60800	KDY221,231,241,271,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
94120-41000	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	2
94120-41000	TRY220,23#,281..MTM	03/2009 - 10/2016	2
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017	LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
90389-06055	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03108	LY230,280..MTM..DSL;LY220,240,270,290,RZY220,230,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31316-25030	TRY220,23#,281..MTM	10/2016 - 12/2999	1
31316-25020	KDY221,231,241,271,281..MTM	10/2016 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-52020	KDY221,231,241,271,281,TRY220,23#,281..MTM	04/2017 - 12/2999	1
31321-14020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2017	1
31323 - BRACKET, CLUTCH PEDAL
55107-25040	KDY221..(T2,T4)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY241,271,281,TRY231,281..(03S,TB,TS)..MTM;KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..MTM..(125T,15T)	03/2009 - 12/2999	1
55107-25030	KDY221,231,241,271,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
31324 - SHAFT, CLUTCH PEDAL
91112-61070	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
91552-81060	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
90387-10003	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-35010	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31353-14010	LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM 長さ=23.5	07/2001 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
Common parts
90468-16032
91611-B0816
94130-61000
94531-01000
96160-00600
Linked diagrams
8401

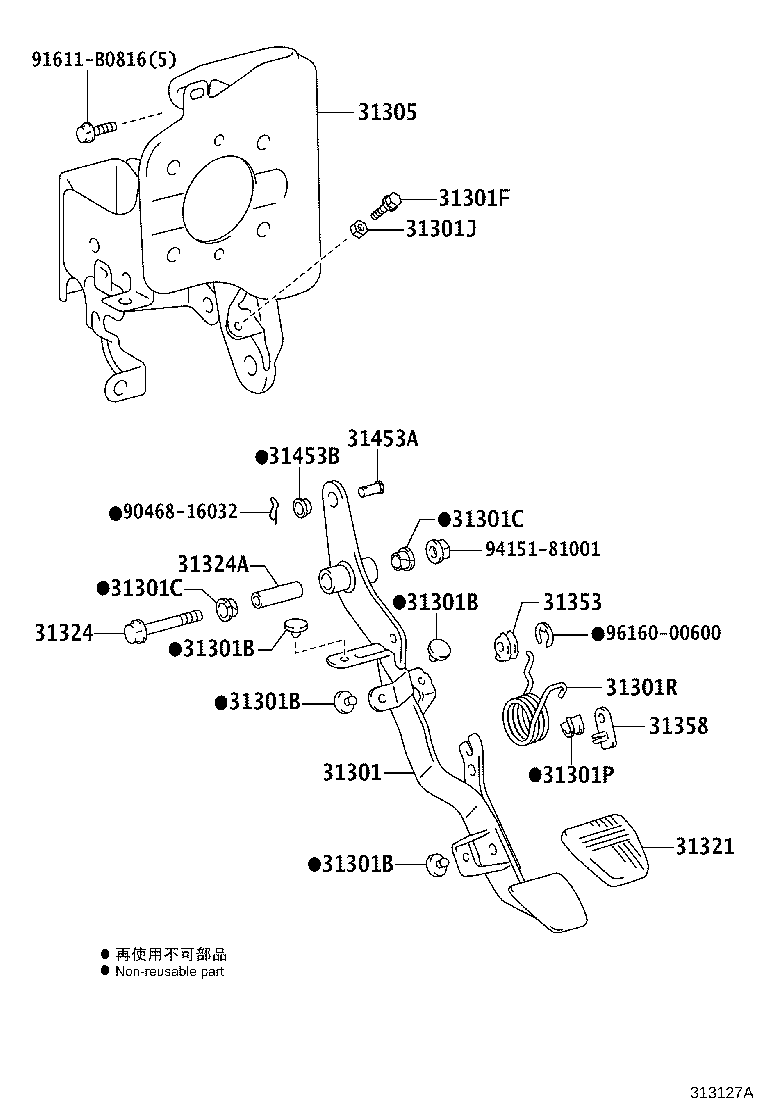

ILLUST NO. 1 OF 3(1610- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31310-25070	KDY221,231,241,271,281,TRY220,23#,281..MTM	04/2009 - 10/2016	1
31301-25090	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	4
90541-06036	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	4
90541-06036	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	4
90541-06036	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	4
90541-06036	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	2
90386-13015	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	2
90386-13015	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91111-41035	TRY220,23#,281..MTM	03/2009 - 10/2016	1
91551-80825	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
90101-08052	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
91111-41035	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-60800	KDY221..(T2,T4)..MTM;KDY231,TRY230..TW2..TB..MTM;KDY231,241,271,281,TRY220,23#,281..(T2,T3,T4,TW1,TW3,TW4,VAN)..MTM	10/2016 - 12/2999	1
94130-60800	KDY221..T3..TB..MTM;KDY231,TRY230..TS..MTM..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..MTM	07/2001 - 12/2999	1
94130-60800	KDY221,231,241,271,281,TRY220,23#,281..MTM	07/2001 - 03/2009	1
94120-41000	KDY221,231,241,271,281..MTM	03/2009 - 08/2010	2
94120-41000	TRY220,23#,281..MTM	03/2009 - 10/2016	2
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017	LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
90389-06055	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03108	LY230,280..MTM..DSL;LY220,240,270,290,RZY220,230,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31316-25030	TRY220,23#,281..MTM	10/2016 - 12/2999	1
31316-25020	KDY221,231,241,271,281..MTM	10/2016 - 12/2999	1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
31305-25010	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-52020	KDY221,231,241,271,281,TRY220,23#,281..MTM	04/2017 - 12/2999	1
31321-14020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 03/2017	1
31324 - SHAFT, CLUTCH PEDAL
91112-61070	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
91552-81060	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
90387-10003	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-35010	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31353-14010	LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 10/2016	1
31358 - CAP, OVER CENTER SPRING
31358-42010	KDY221,231,241,271,281,TRY220,23#,281..MTM	10/2016 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM 長さ=23.5	07/2001 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM	07/2001 - 12/2999	1
Common parts
90468-16032
91611-B0816
94151-81001
96160-00600

KDY281-PSMDY (2007)

ILLUST NO. 1 OF 3(0107-1008)MTM

ILLUST NO. 1 OF 3(1008-1610)MTM

ILLUST NO. 1 OF 3(1610- )MTM

Part Price Details
