KDY281-PSMDY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1008)1KDFTV

Click highlighted areas on diagram

diagram 1701 26100G 26171 9017908040 9155180825
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-30080

1KDFTV..KDY221,231,241,271,281

 1
Common parts
90179-08040
91551-80825
Linked diagrams
1701

(1008- )1KDFTV

Click highlighted areas on diagram

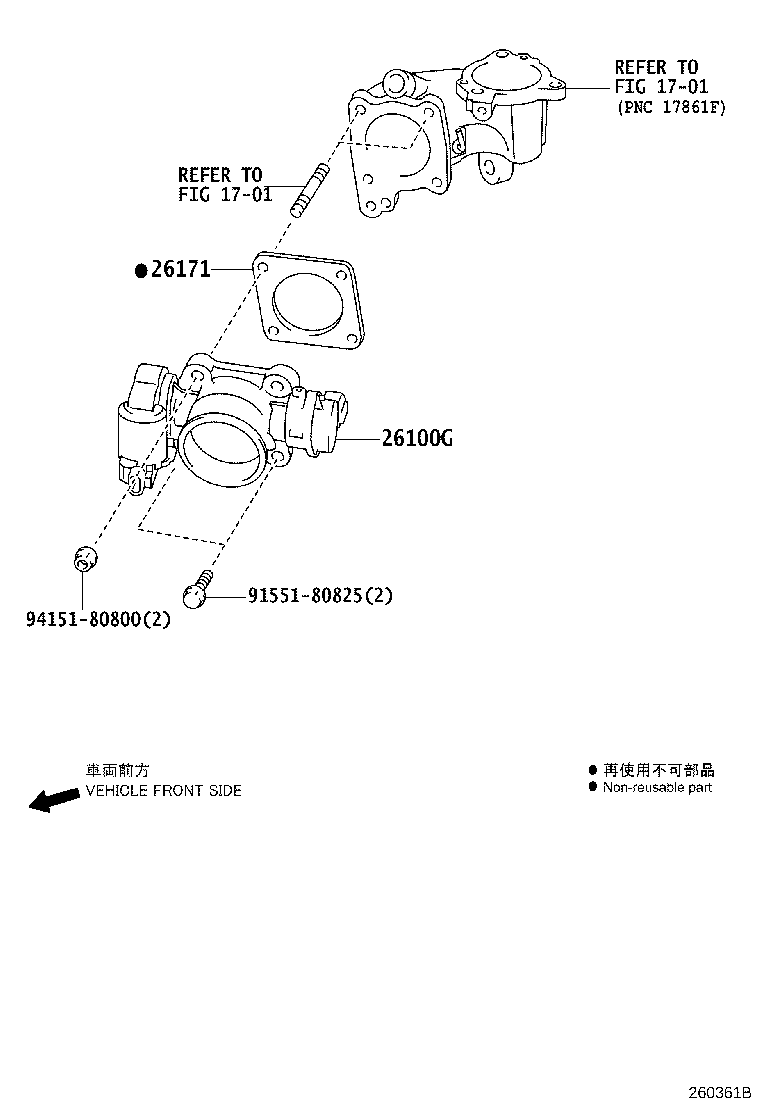

diagram 1701 1701 26100G 26171 9155180825 9415180800
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-30080

1KDFTV..KDY221,231,241,271,281

 1
Common parts
91551-80825
94151-80800
Linked diagrams
1701
