KDY281-PSMDY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1KDFTV

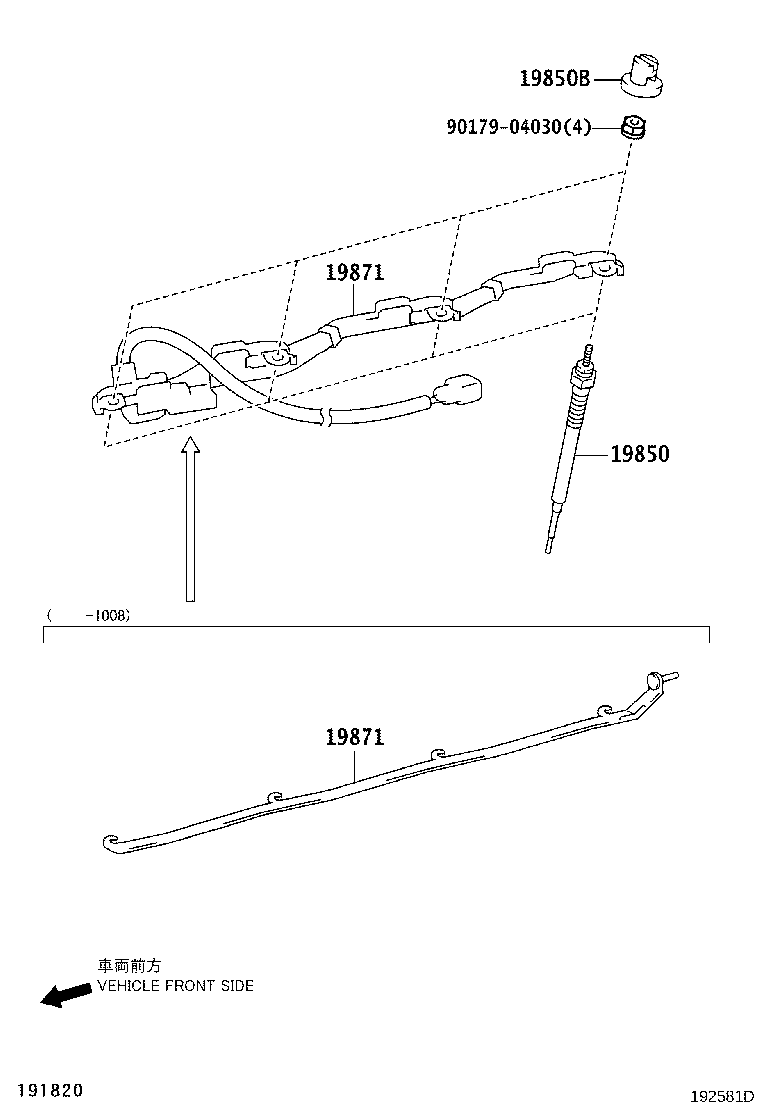

Click highlighted areas on diagram

diagram 19850 19850B 19871 19871 9017904030
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-30040

1KDFTV..KDY221,231,241,271,281

*BV−GV=12V−11V

 4
19850-30020

1KDFTV..KDY221,231,241,271,281

*BV−GV=12V−11V

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-30050

1KDFTV..KDY221,231,241,271,281

 1
19871-30080

1KDFTV..KDY221,231,241,271,281

 1
19871-30081

1KDFTV..KDY221,231,241,271,281

 1
19871 - CONNECTOR, GLOW PLUG NO.1
19871-30050

1KDFTV..KDY221,231,241,271,281

 1
19871-30080

1KDFTV..KDY221,231,241,271,281

 1
19871-30081

1KDFTV..KDY221,231,241,271,281

 1
Common parts
90179-04030
