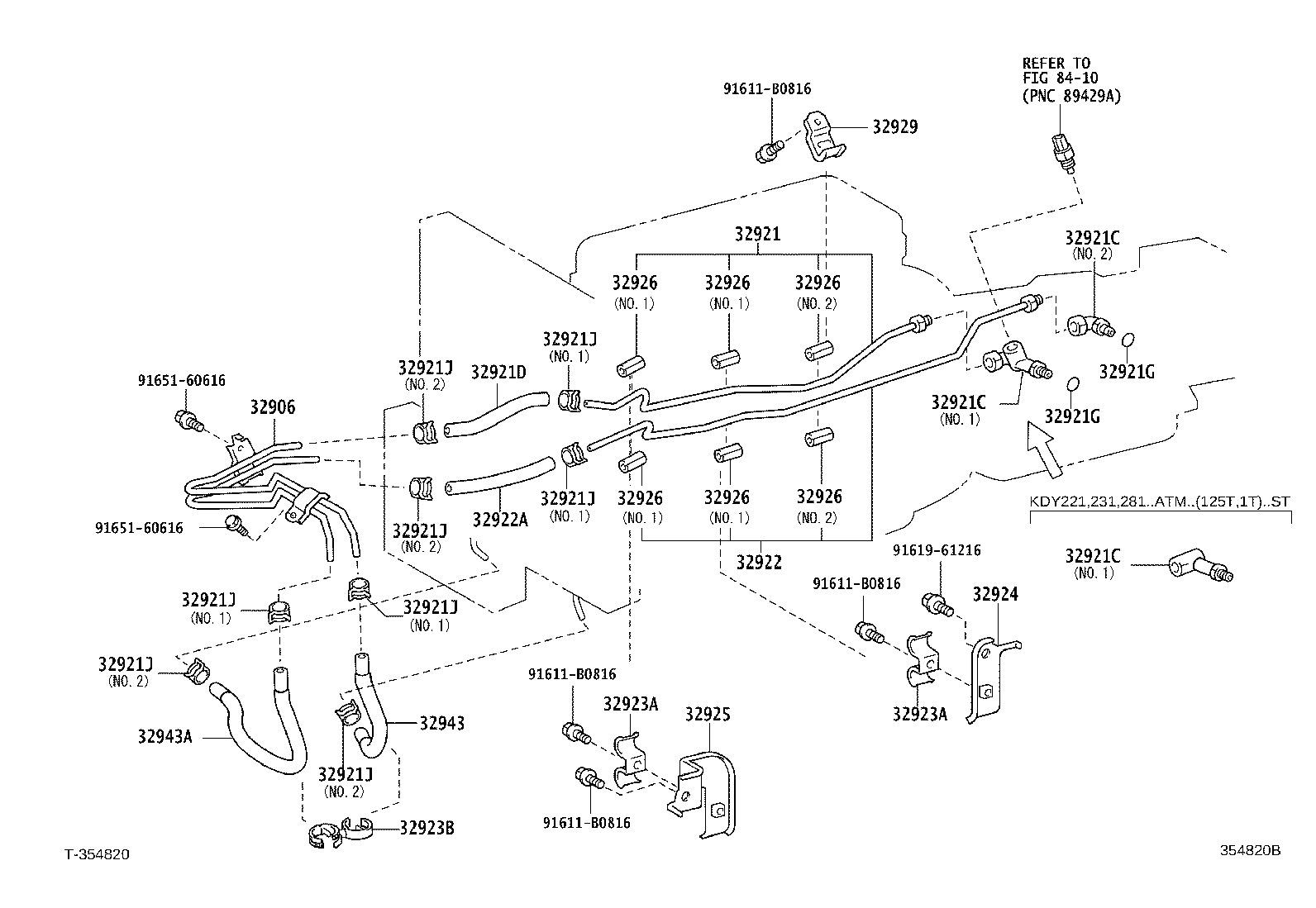

KDY280-TLPDY3 (2004)
Toyota Dyna/Toyoace
(0408- )KDY230,280..TB..ATM ; (0605- )KDY230..TS..ATM..WT ; (0709- )ATM..1
A442E,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32907-25040 |
KDY220,230,280..ATM |
1 | ||
| 32907-25030 |
LY220,230,280,RZY220,23#,281,TRY220,230..ATM |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-25150 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDY220,230,280..TS..ATM..ST NO.1 |
1 | ||
| 90407-16009 |
KDY22#,23#,28#..ATM..(125T,1T)..ST NO.2 |
1 | ||
| 90407-16010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDY220,230,280..TS..ATM..ST NO.1 |
1 | ||
| 90407-16009 |
KDY22#,23#,28#..ATM..(125T,1T)..ST NO.2 |
1 | ||
| 90407-16010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17077 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 90301-11006 |
LY230,280..TB..ATM;KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,RZY231,281,TRY231,281..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 90301-11006 |
LY230,280..TB..ATM;KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,RZY231,281,TRY231,281..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-25140 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17103 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12076 |
KDY23#,280..TS..ATM..ST;KDY22#,281,TRY231,281..ATM;LY230,280,TRY230..TB..ATM..(DSL,EFI) |
2 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12076 |
KDY23#,280..TS..ATM..ST;KDY22#,281,TRY231,281..ATM;LY230,280,TRY230..TB..ATM..(DSL,EFI) |
2 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12076 |
KDY23#,280..TS..ATM..ST;KDY22#,281,TRY231,281..ATM;LY230,280,TRY230..TB..ATM..(DSL,EFI) |
2 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12076 |
KDY23#,280..TS..ATM..ST;KDY22#,281,TRY231,281..ATM;LY230,280,TRY230..TB..ATM..(DSL,EFI) |
2 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90949-01993 |
KDY22#,23#,28#..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-25050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-25070 |
KDY22#,23#,28#..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-24060 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-25040 |
KDY22#,23#,28#..ATM |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-25050 |
KDY22#,23#,28#..ATM |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 8410 | ||||

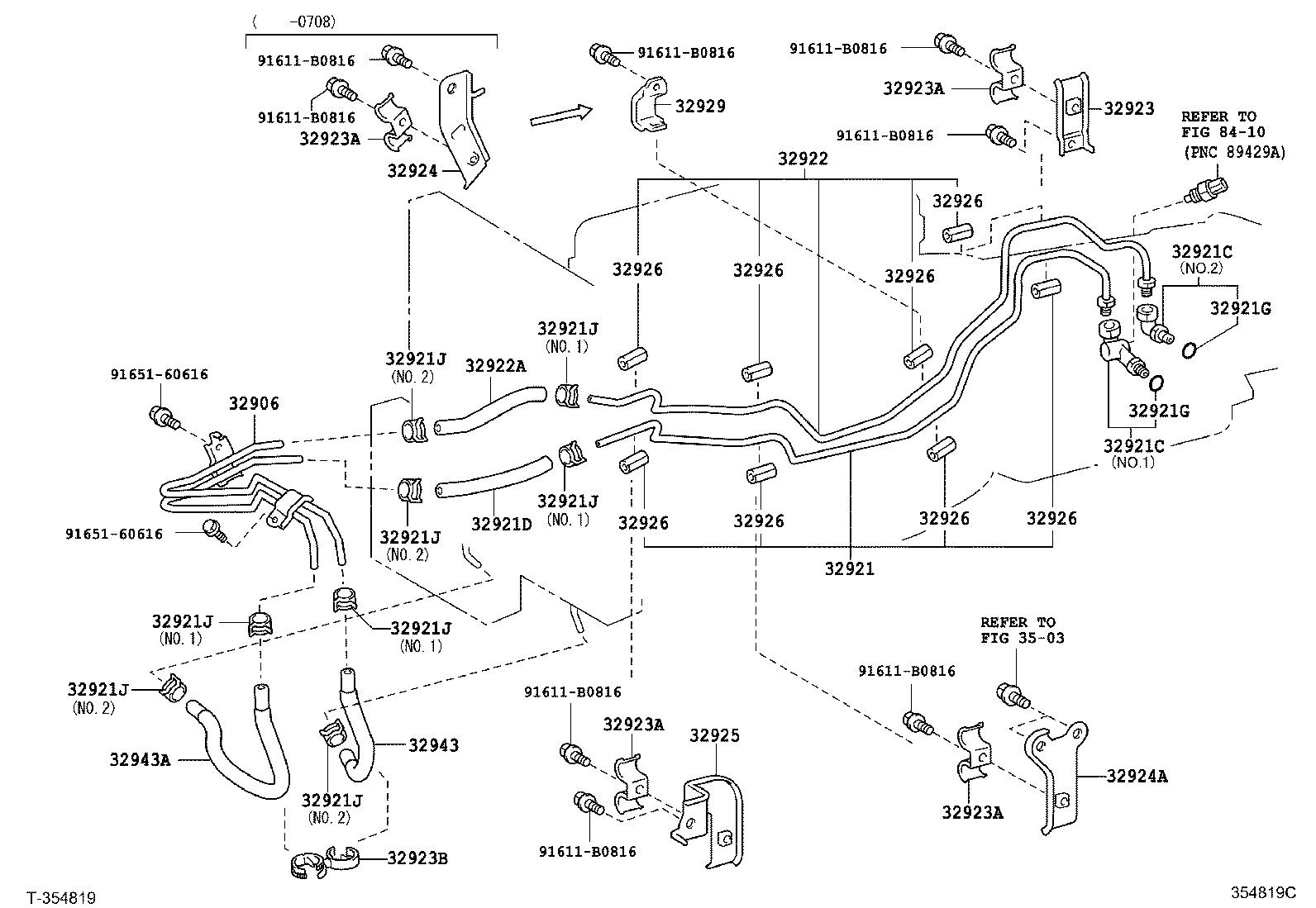

(0408- )KDY22#,23#,28#..ATM..125T,1T..ST
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32907-25040 |
KDY220,230,280..ATM |
1 | ||
| 32907-25030 |
LY220,230,280,RZY220,23#,281,TRY220,230..ATM |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-25150 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDY220,230,280..TS..ATM..ST NO.1 |
1 | ||
| 90407-16009 |
KDY22#,23#,28#..ATM..(125T,1T)..ST NO.2 |
1 | ||
| 90407-16010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDY220,230,280..TS..ATM..ST NO.1 |
1 | ||
| 90407-16009 |
KDY22#,23#,28#..ATM..(125T,1T)..ST NO.2 |
1 | ||
| 90407-16010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
KDY220,230,280..TS..ATM..ST NO.1 |
1 | ||
| 90407-16009 |
KDY22#,23#,28#..ATM..(125T,1T)..ST NO.2 |
1 | ||
| 90407-16010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17077 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 90301-11006 |
LY230,280..TB..ATM;KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,RZY231,281,TRY231,281..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 90301-11006 |
LY230,280..TB..ATM;KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,RZY231,281,TRY231,281..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
LY220,230,280,RZY231,281,TRY220,230..ATM |
3 | ||
| 90467-16022 |
KDY220,230,280..ATM NO.2 |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-25140 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17103 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12076 |
KDY23#,280..TS..ATM..ST;KDY22#,281,TRY231,281..ATM;LY230,280,TRY230..TB..ATM..(DSL,EFI) |
2 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12076 |
KDY23#,280..TS..ATM..ST;KDY22#,281,TRY231,281..ATM;LY230,280,TRY230..TB..ATM..(DSL,EFI) |
2 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90949-01993 |
KDY22#,23#,28#..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-25050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-25070 |
KDY22#,23#,28#..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KDY220,230,280,LY280..TS..ATM..ST 長さ=35,内径=10,NO.2 |
2 | ||
| 32926-60020 |
KDY220,230,280..TS..ATM..ST 長さ=45,内径=10,NO.1 |
4 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-24060 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-25040 |
KDY22#,23#,28#..ATM |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-25050 |
KDY22#,23#,28#..ATM |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 91619-61216 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
