KDY280-TLMDY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

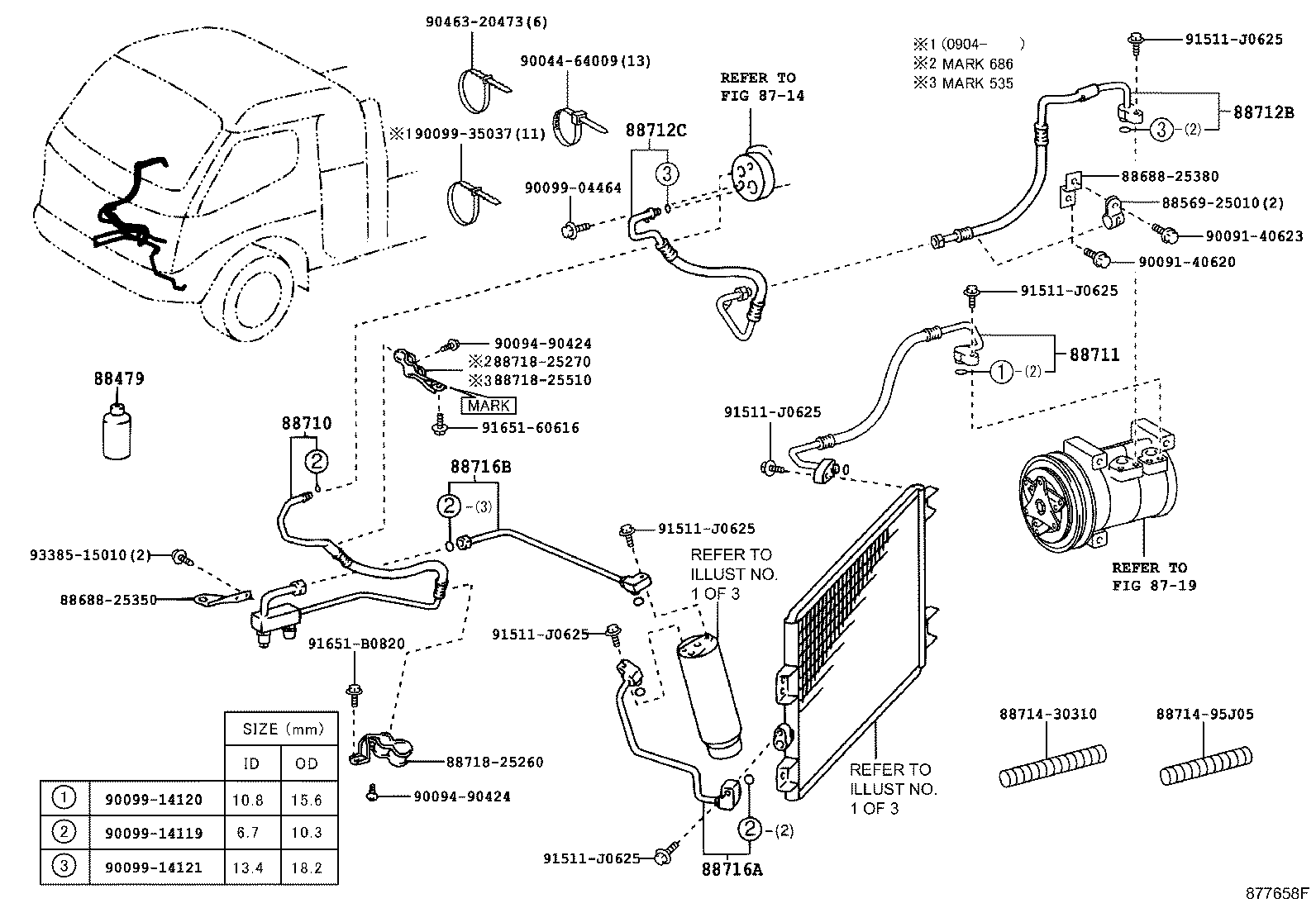

ILLUST NO. 1 OF 3(0408- )KDY220,230,240,270,280

Click highlighted areas on diagram

ﾚｲﾄｳｼｬ

diagram 8714 8719 88479 8856925010 8868825350 8868825380 88710 88711 88712B 88712C 8871430310 8871495J05 88716A 88716B 8871825260 8871825270 8871825510 9004464009 9009140620 9009140623 9009490424 9009490424 9009904464 9009914119 9009914120 9009914121 9009935037 9046320473 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9165160616 91651B0820 9338515010
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25450

KDY220,230,240,270,280,290

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25230

LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-25260

KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
Common parts
88569-25010
88688-25350
88688-25380
88714-30310
88714-95J05
88718-25260
88718-25270
88718-25510
90044-64009
90091-40620
90091-40623
90094-90424
90099-04464
90099-14119
90099-14120
90099-14121
90099-35037
90463-20473
91511-J0625
91651-60616
91651-B0820
93385-15010
