KDY280-TLMDY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0708)2KDFTV ; (0709- )1KDFTV

Click highlighted areas on diagram

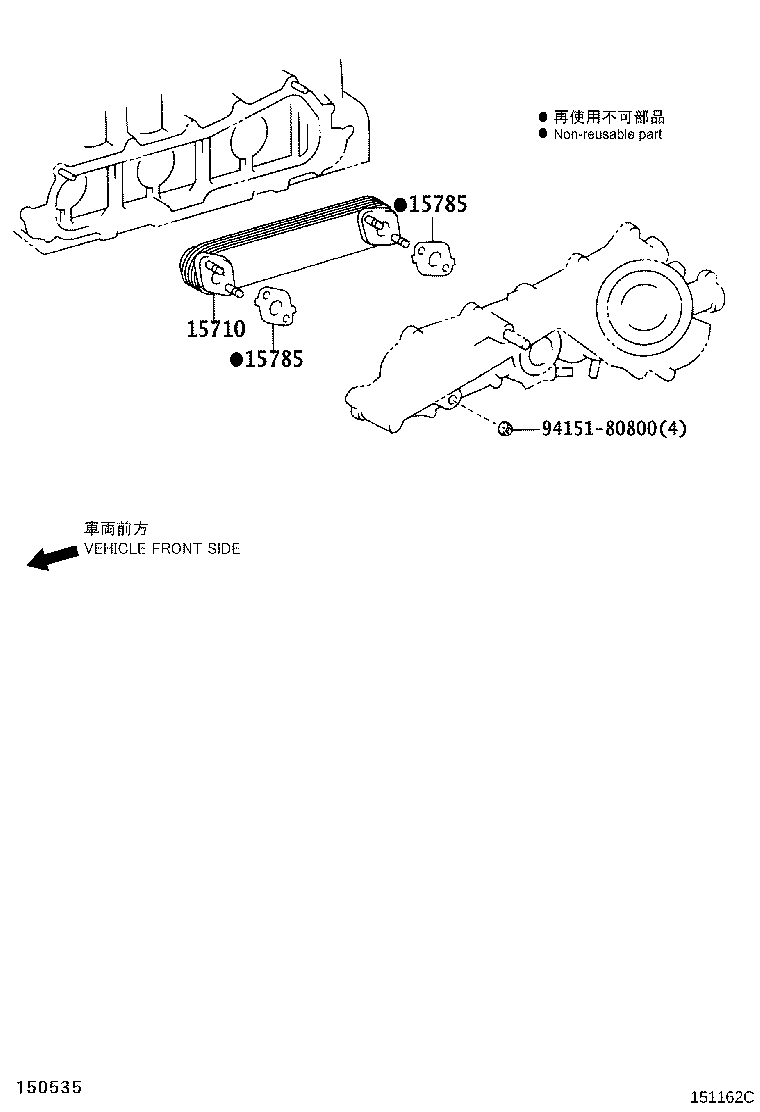

diagram 15710 15785 15785 9415180800
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-30020

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
15785 - GASKET, OIL COOLER
15785-30010

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 2
15785 - GASKET, OIL COOLER
15785-30010

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 2
Common parts
94151-80800
