Toyota Dyna/toyoace KDY280 AIR CLEANER

KDY280-TKPFY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007

Engine 2KDFTV

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

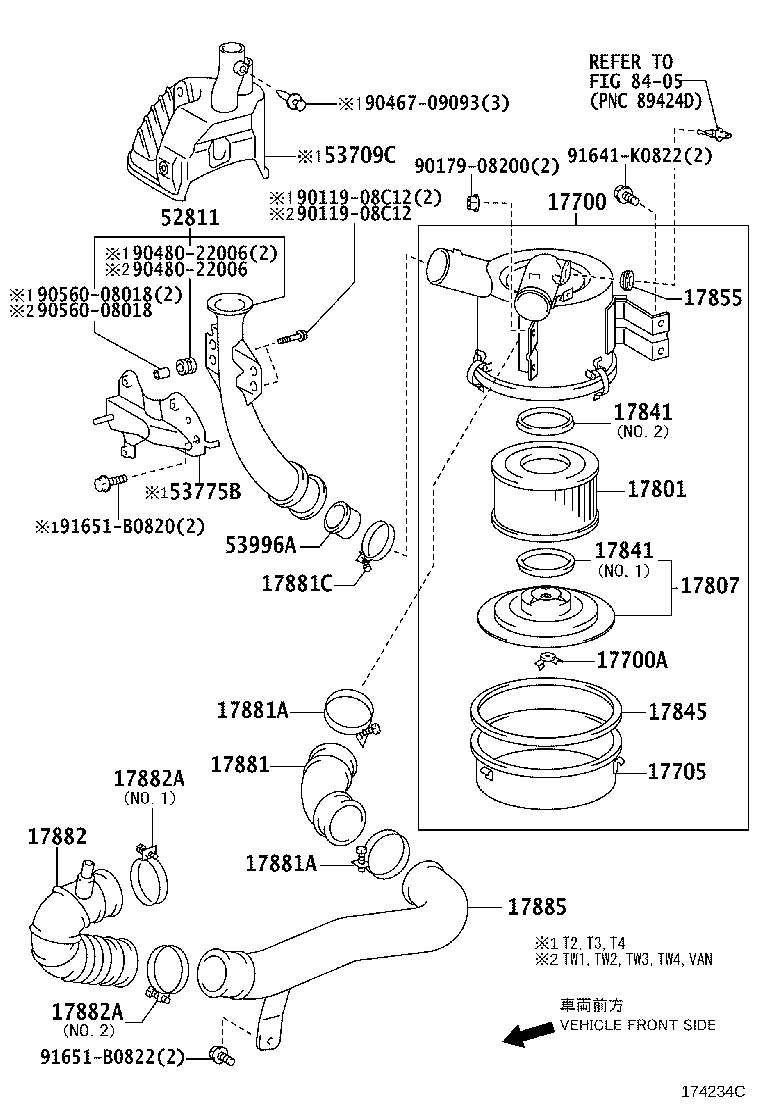

ILLUST NO. 1 OF 2(0408-0708)2KDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-30170	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54490	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68030	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-58020	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
17841 - GASKET, FILTER ELEMENT
17841-68010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 NO.1	08/2004 - 12/2999	1
17841-30030	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 NO.2	08/2004 - 12/2999	1
17841 - GASKET, FILTER ELEMENT
17841-68010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 NO.1	08/2004 - 12/2999	1
17841-30030	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 NO.2	08/2004 - 12/2999	1
17845 - GASKET, AIR CLEANER CAP
17845-54030	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
17855 - GASKET, AIR INLET DUCT, NO.1
17855-67010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17881 - HOSE, AIR CLEANER, NO.1
17881-30040	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	2
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17882 - HOSE, AIR CLEANER, NO.2
17882-30030	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10650	2KDFTV..KDY220,230,240,270,280,290 NO.1	08/2004 - 08/2007	1
96111-10750	2KDFTV..KDY220,230,240,270,280,290 NO.2	08/2004 - 08/2007	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10650	2KDFTV..KDY220,230,240,270,280,290 NO.1	08/2004 - 08/2007	1
96111-10750	2KDFTV..KDY220,230,240,270,280,290 NO.2	08/2004 - 08/2007	1
17885 - PIPE, AIR CLEANER
17885-30010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
52811 - DUCT, COOL AIR INTAKE, NO.1
52811-25010	KDY220,230,270,280..T2,T3,T4	08/2004 - 08/2007	1
53709C - COVER SUB-ASSY, AIR CLEANER INLET
53767-25040	KDY22#,23#,27#,28#..T2,T3,T4	08/2004 - 12/2999	1
53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING
53775-25010	KDY22#,23#,27#,28#..T2,T3,T4	08/2004 - 12/2999	1
53996A - PACKING, AIR CLEANER INLET PIPE
53996-25020	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
Common parts
90119-08C12
90179-08200
90467-09093
90480-22006
90560-08018
91641-K0822
91651-B0820
91651-B0822
Linked diagrams
8405

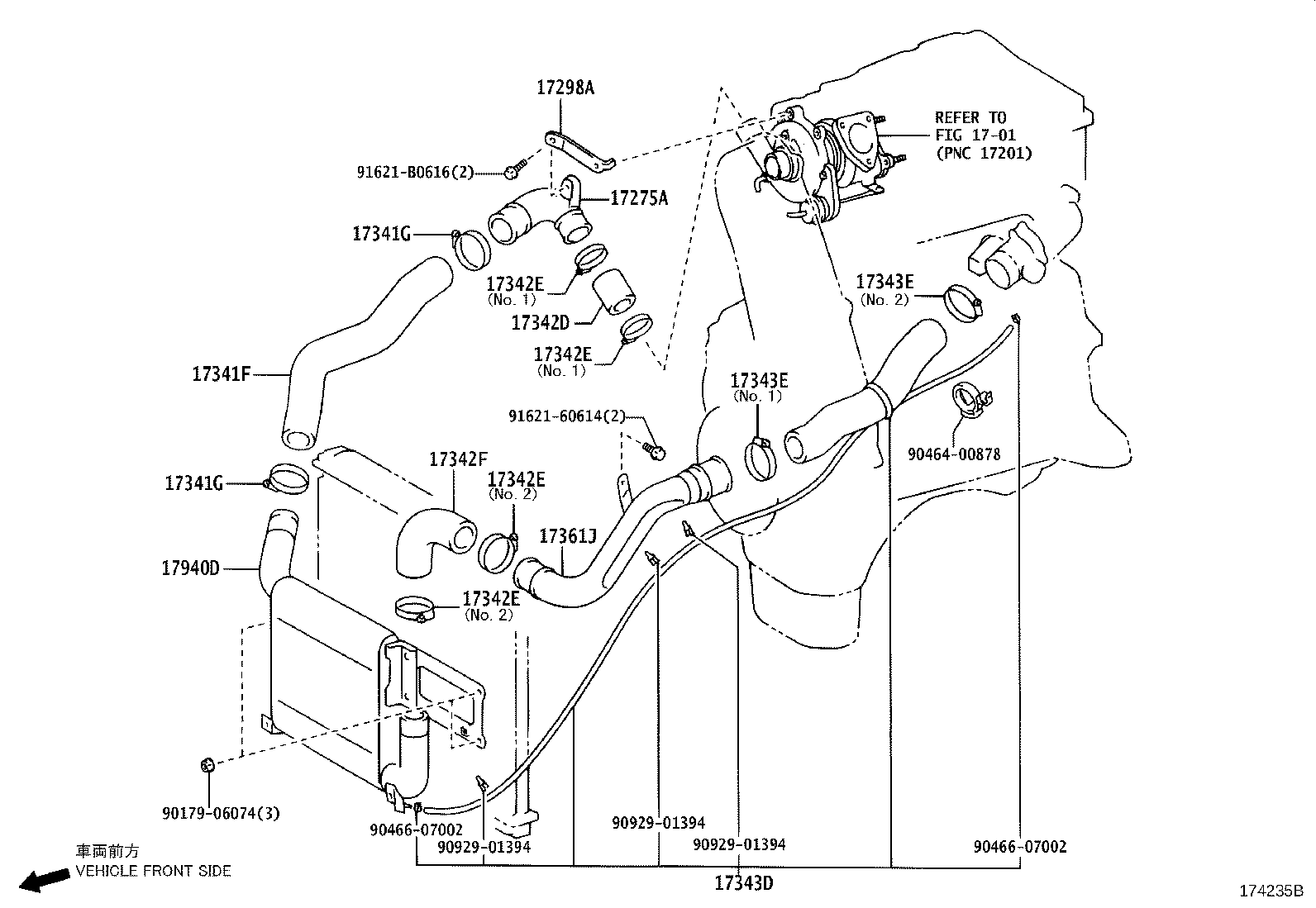

ILLUST NO. 2 OF 2(0408-0708)2KDFTV

Click highlighted areas on diagram

Part #	Description	Period	Qty
17275A - ELBOW, COMPRESSOR OUTLET
17275-30010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17298A - STAY, COMPRESSOR ELBOW
17298-30010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17341F - HOSE, AIR, NO.1
17341-30021	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17342D - HOSE, AIR, NO.2
17342-30050	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-57005	2KDFTV..KDY220,230,240,270,280,290 NO.1	08/2004 - 08/2007	2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-57005	2KDFTV..KDY220,230,240,270,280,290 NO.1	08/2004 - 08/2007	2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-57005	2KDFTV..KDY220,230,240,270,280,290 NO.1	08/2004 - 08/2007	2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-57005	2KDFTV..KDY220,230,240,270,280,290 NO.1	08/2004 - 08/2007	2
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-30021	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
17343D - HOSE, AIR, NO.3
17343-30030	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-80006	1KDFTV..KDY221..T3..TB;1KDFTV..KDY231..WT..IV6;1KDFTV..KDY231..TS..125T..WT;2KDFTV..KDY220,230,240,270,280,290 NO.2	08/2004 - 12/2999	1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-80006	1KDFTV..KDY221..T3..TB;1KDFTV..KDY231..WT..IV6;1KDFTV..KDY231..TS..125T..WT;2KDFTV..KDY220,230,240,270,280,290 NO.2	08/2004 - 12/2999	1
17361J - TUBE, AIR, NO.1
17361-30010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
17940D - INTERCOOLER ASSY
17940-30060	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
Common parts
90179-06074
90464-00878
90466-07002
90929-01394
91621-60614
91621-B0616
Linked diagrams
1701
