KDY280-TGMFY3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 4 OF 8(0107-1610)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
2KDFTV,3RZFPE..KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-25100 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ﾏｰｸ=81980−25100 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08274 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 120A,ｵｽ端子,白 |
1 | ||
| 90982-08203 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08281 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08223 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08280 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08228 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 50A,ｵｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09013 |
LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
LY220,230,270,280..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY220,23#,281,TRY220,23#,281 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-25122 |
KDY220,230,270,280,RZY231,281,TRY220,230 MARK 25122 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02025 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02012 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85930A - RELAY ASSY, POWER WINDOW, NO.1 | ||||
| 90987-02009 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 85930A - RELAY ASSY, POWER WINDOW, NO.1 | ||||
| 90987-02009 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-25060 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 88650H - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-37230 |
KDY221,270..T3..IV3;KDY23#..15T..WT..IV3;KDY230..T3..15T..IV3;KDY280..T3..MTM..125T..IV3;KDY220,271..(125T,15T)..IV3;KDY221,280..(T3,T4)..TB..IV3;KDY221,281..(T2,T3)..15T..IV3;KDY240,LY230,280,RZY231,281..(03S,TB)..(DCR,LPG) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=88650-37230 |
1 | ||
| Common parts | ||||
| 90099-00930 | ||||
| 90159-50322 | ||||
| 91551-80814 | ||||
| 91554-80614 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 5 OF 8(0107-1610)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84270F - BULB, MIRROR HEATER SWITCH ASSY | ||||
| 84999-10310 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 14V 0.91W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-25060 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 14V 0.91W |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60010 |
KDY220,230,240,270,280,290 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-16010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 14V 0.065A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37060 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
KDY220,230,240,270,280,290,RZY231,281 14V 1.4W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01154 |
KDY220,230,240,270,280,290,RZY231,281 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01015 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-47010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 8302 | ||||
| 8420 | ||||
ILLUST NO. 6 OF 8(0107-1610)
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80222 |
KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80221 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37340 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,RZY231,281..CBU,IV3 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 84310-37330 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-37320 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-37370 |
KDY230..T2,T3;KDY230..T4..TB;KDY220,270,280,RZY231,281..T2,T3,T4 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ & ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84310-37360 |
KDY230..T2,T3;KDY230..T4..TB;KDY220,270,280,RZY231,281..T2,T3,T4 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ & ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84310-37350 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,RZY231,281..CBU,IV3 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37060 |
KDY220,230,240,270,280,290,RZY231,281 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 84329-37070 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37220 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84652-37230 |
KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82716-37241 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 91611-G0612 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 8(0107-1610)KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281
ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDY221..(T2,T4)..TB;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221..(T2,T3,TW1)..TS;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,231,281 ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ ｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
2 | ||
| 84231-60070 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDY221..(T2,T4)..TB;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221..(T2,T3,TW1)..TS;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,231,281 ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ ｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
2 | ||
| 84231-60070 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDY221..(T2,T4)..TB;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221..(T2,T3,TW1)..TS;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3);KDY220,230,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,231,281 ｱﾘ(ｶ-ﾃｼ ﾗﾝﾌﾟ ｽｲﾂﾁ=ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
2 | ||
| 84231-60070 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37021 |
TRY230..IV6;KDY231..WT..IV6;KDY221,TRY220..ST;KDY231..TS..(125T,1T);KDY281..(T2,T3,TW3)..(125T,1T);TRY230..(T2,T3,TW2,TW3)..TS..(125T,1T)..(CBU,IV3);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37021 |
TRY230..IV6;KDY231..WT..IV6;KDY221,TRY220..ST;KDY231..TS..(125T,1T);KDY281..(T2,T3,TW3)..(125T,1T);TRY230..(T2,T3,TW2,TW3)..TS..(125T,1T)..(CBU,IV3);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90159-30027 | ||||
| 90159-50386 | ||||
| 90164-30009 | ||||
| 90168-40061 | ||||
| 90468-04147 | ||||
| 90901-48003 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8715 | ||||

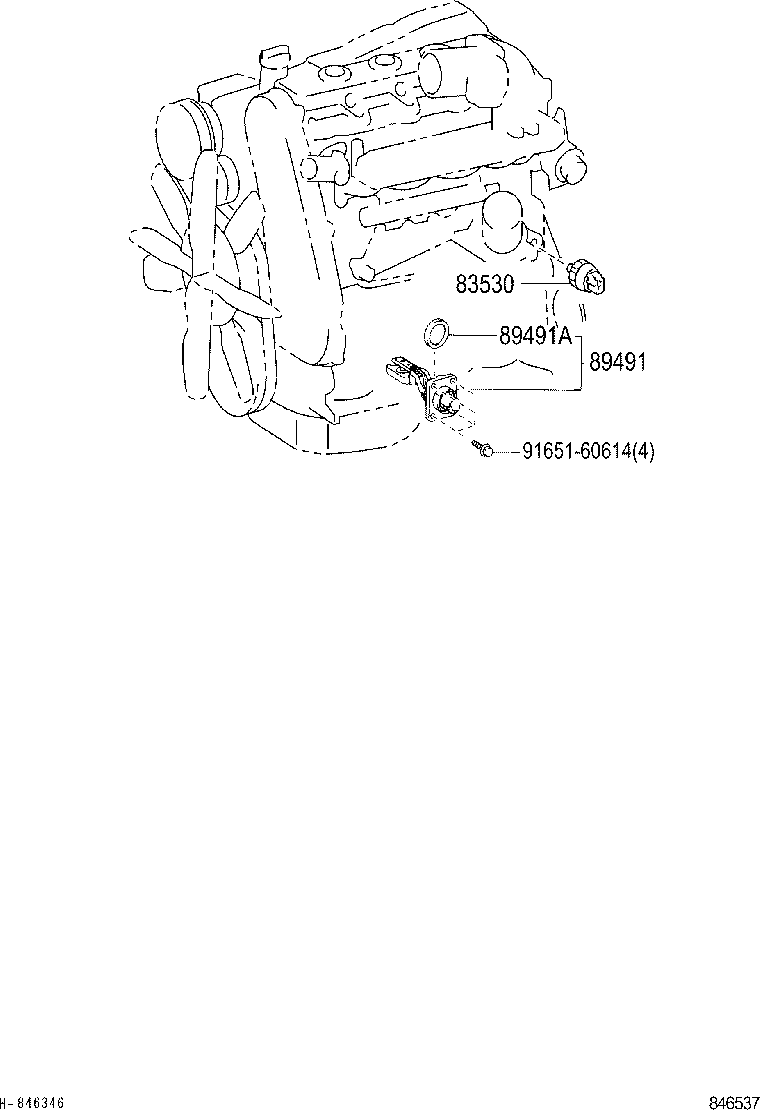

ILLUST NO. 1 OF 8(0408-0708)KDY220,230,240,270,280,290
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26170 |
KDY220,230,240,270,280,290 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDY221..T3..TB;KDY231..WT..IV6;KDY231..TS..125T..WT;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 91651-60614 | ||||
