KDY280-TBPDY6 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007

Engine 2KDFTV

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0107-0505)

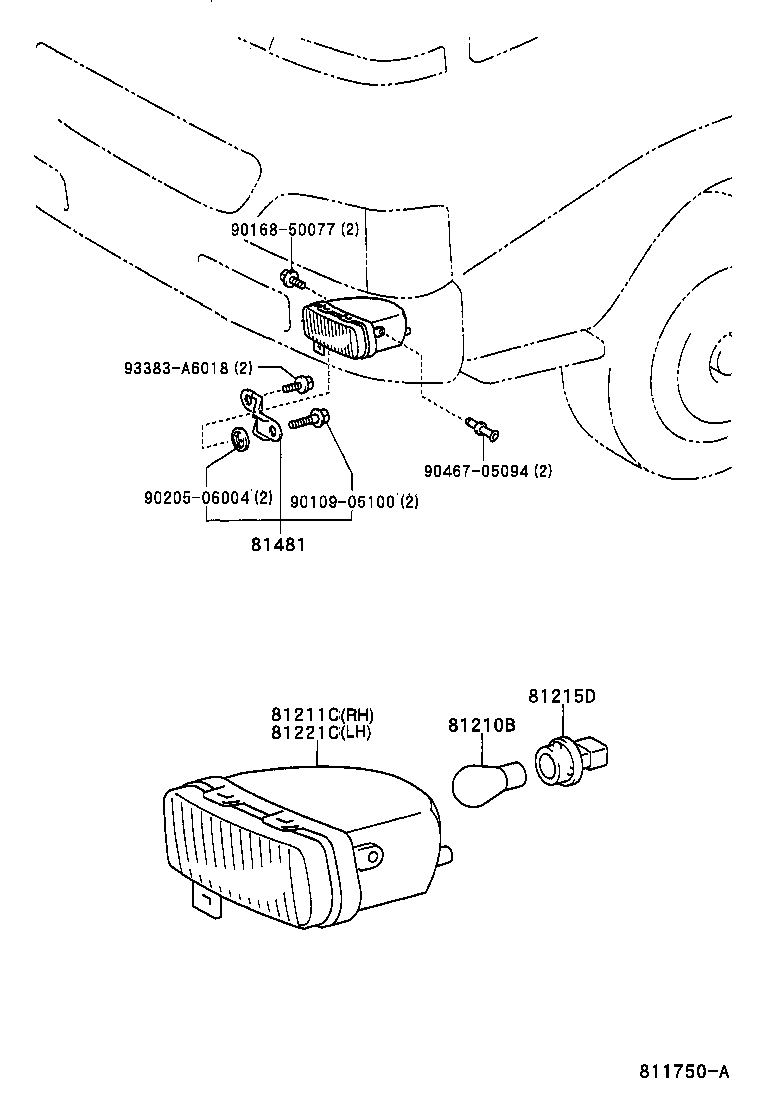

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81210B - BULB, FOG LAMP
99132-11270	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 12V 27W	07/2001 - 05/2005	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-37070	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 05/2005	1
81215D - FOG LAMP SOCKET PLUG ASSY
90075-99092	KDY220,230,240,270,280,290,RZY231,281,TRY220,230	07/2001 - 05/2005	2
81215-37100	KDY220,230,240,270,280,290,RZY231,281	05/2005 - 08/2007	2
81221C - LAMP UNIT, FOG LAMP, LH
81221-37040	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 05/2005	1
81481 - BRACKET, FOG LAMP
81481-37010	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	2
Common parts
90109-05100
90168-50077
90205-06004
90467-05094
93383-A6018
