KDY280-TBPDY6 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDY22#,23#,24#,27#,28#,290

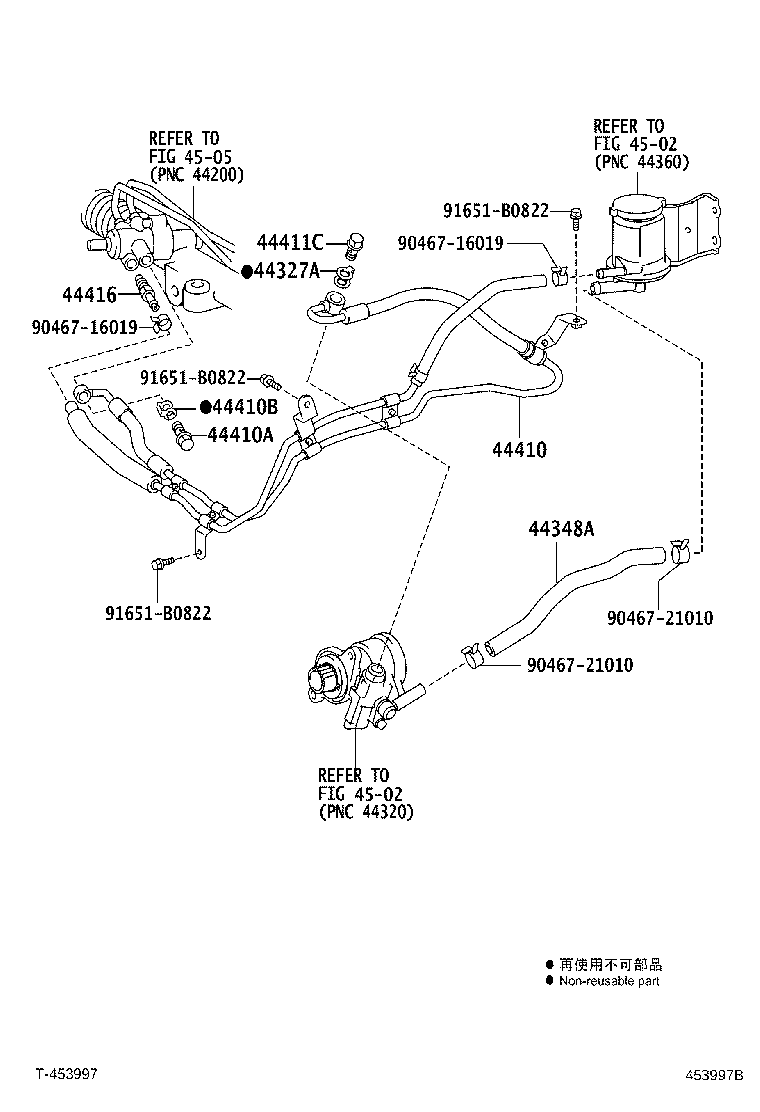

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44410A 44410B 44411C 44416 4502 4502 4505 9046716019 9046716019 9046721010 9046721010 91651B0822 91651B0822 91651B0822
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-25080

KDY27#,28#,290

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-25161

KDY27#,28#,290

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
44327-30030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60370

KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281

 1
44416-26080

KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230

 1
Common parts
90467-16019
90467-21010
91651-B0822
Linked diagrams
4502
4505
