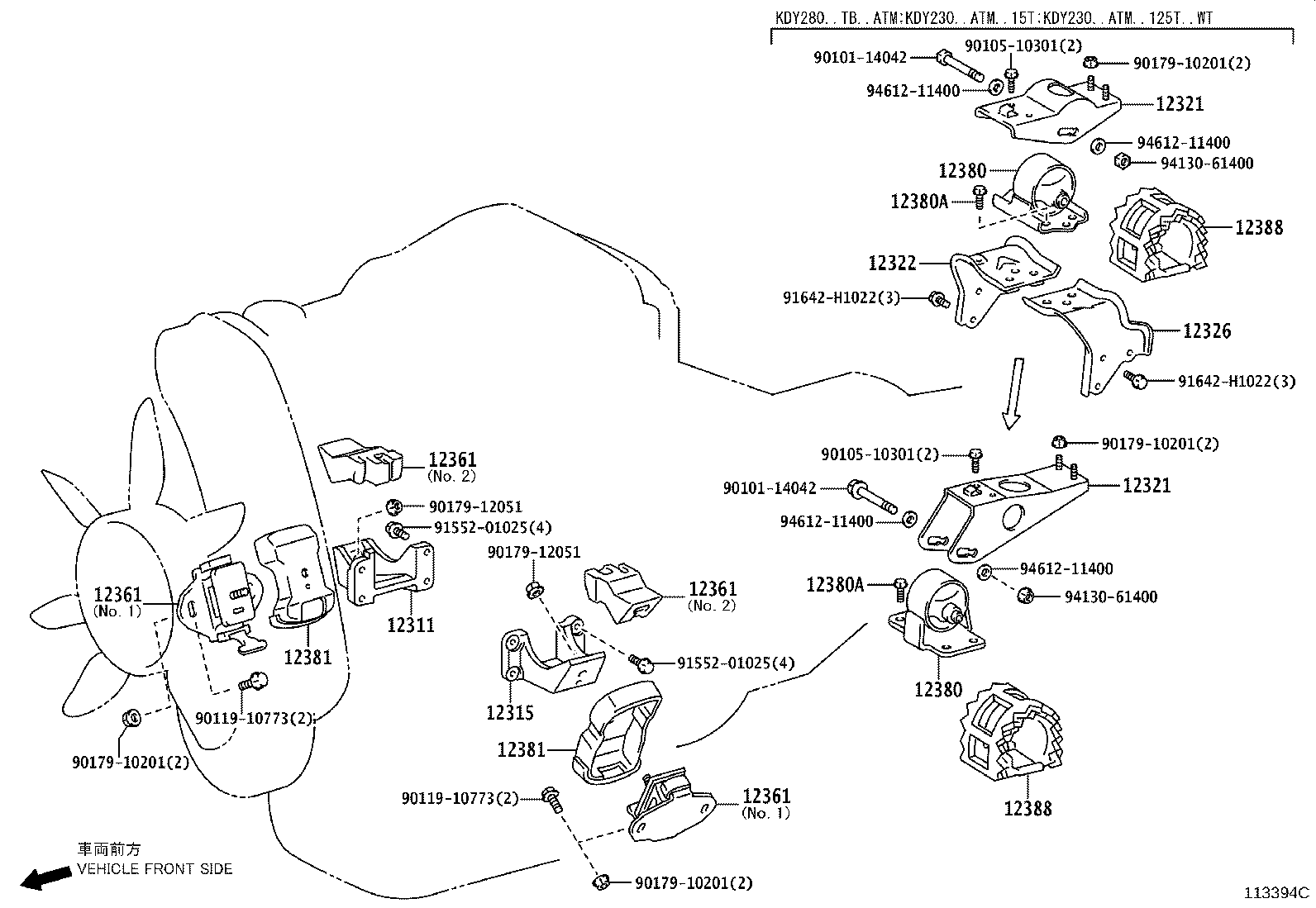

KDY280-TBPDY3 (2004)
Toyota Dyna/Toyoace
(0408-0708)2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-67021 |
2KDFTV..KDY220,230,240,270,280,290 |
1 | ||
| 12311-30090 |
2KDFTV..KDY220,230,240,270,280,290 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-30090 |
2KDFTV..KDY220,230,240,270,280,290 |
1 | ||
| 12315-67011 |
2KDFTV..KDY220,230,240,270,280,290 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-54130 |
2KDFTV..KDY280..TB..ATM;1KDFTV,2KDFTV..KDY23#..ATM..15T;1KDFTV,2KDFTV..KDY23#..ATM..125T..WT |
1 | ||
| 12321-30070 |
2KDFTV..KDY280..TS..ATM |
1 | ||
| 12321-30071 |
1KDFTV,2KDFTV..KDY28#..ATM..(125T,1T)..ST |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-54130 |
2KDFTV..KDY280..TB..ATM;1KDFTV,2KDFTV..KDY23#..ATM..15T;1KDFTV,2KDFTV..KDY23#..ATM..125T..WT |
1 | ||
| 12321-30070 |
2KDFTV..KDY280..TS..ATM |
1 | ||
| 12321-30071 |
1KDFTV,2KDFTV..KDY28#..ATM..(125T,1T)..ST |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-30020 |
2KDFTV..KDY280..TB..ATM |
1 | ||
| 12326 - BRACKET, ENGINE MOUNTING STAY | ||||
| 12326-30020 |
2KDFTV..KDY280..TB..ATM |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-54241 |
2KDFTV..KDY220,230,240,270,280,290 NO.1 |
2 | ||
| 12361-30070 |
2KDFTV..KDY220,230,240,270,280,290 NO.2 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-54241 |
2KDFTV..KDY220,230,240,270,280,290 NO.1 |
2 | ||
| 12361-30070 |
2KDFTV..KDY220,230,240,270,280,290 NO.2 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-54241 |
2KDFTV..KDY220,230,240,270,280,290 NO.1 |
2 | ||
| 12361-30070 |
2KDFTV..KDY220,230,240,270,280,290 NO.2 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-54241 |
2KDFTV..KDY220,230,240,270,280,290 NO.1 |
2 | ||
| 12361-30070 |
2KDFTV..KDY220,230,240,270,280,290 NO.2 |
2 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-54060 |
2KDFTV..KDY280..MTM;2KDFTV..KDY280..TS..ATM;1KDFTV,2KDFTV..KDY27#,281,290 |
1 | ||
| 12380-54100 |
2KDFTV..KDY280..TB..ATM |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-54060 |
2KDFTV..KDY280..MTM;2KDFTV..KDY280..TS..ATM;1KDFTV,2KDFTV..KDY27#,281,290 |
1 | ||
| 12380-54100 |
2KDFTV..KDY280..TB..ATM |
1 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90105-10514 |
2KDFTV..KDY280..TB..ATM;1KDFTV,2KDFTV..KDY23#..ATM..15T;1KDFTV,2KDFTV..KDY23#..ATM..125T..WT |
6 | ||
| 90105-08157 |
2KDFTV..KDY280,290..MTM;2KDFTV..KDY280..TS..ATM;1KDFTV,2KDFTV..KDY23#..TS..ST;1KDFTV,2KDFTV..KDY22#,27#,281..ST |
4 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90105-10514 |
2KDFTV..KDY280..TB..ATM;1KDFTV,2KDFTV..KDY23#..ATM..15T;1KDFTV,2KDFTV..KDY23#..ATM..125T..WT |
6 | ||
| 90105-08157 |
2KDFTV..KDY280,290..MTM;2KDFTV..KDY280..TS..ATM;1KDFTV,2KDFTV..KDY23#..TS..ST;1KDFTV,2KDFTV..KDY22#,27#,281..ST |
4 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-54051 |
2KDFTV..KDY220,230,240,270,280,290 |
2 | ||
| 12381-54050 |
2KDFTV..KDY220,230,240,270,280,290 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-54051 |
2KDFTV..KDY220,230,240,270,280,290 |
2 | ||
| 12381-54050 |
2KDFTV..KDY220,230,240,270,280,290 |
2 | ||
| 12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR | ||||
| 12388-67011 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR | ||||
| 12388-67011 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
1 | ||
| Common parts | ||||
| 90101-14042 | ||||
| 90105-10301 | ||||
| 90119-10773 | ||||
| 90179-10201 | ||||
| 90179-12051 | ||||
| 91552-01025 | ||||
| 91642-H1022 | ||||
| 94130-61400 | ||||
| 94612-11400 | ||||
