KDY271-TBMDY (2007)
Toyota Dyna/Toyoace
(1004- )KDY221,271,TRY220..T3..TS..CBU
ｽﾁｰﾙﾃﾞｯｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

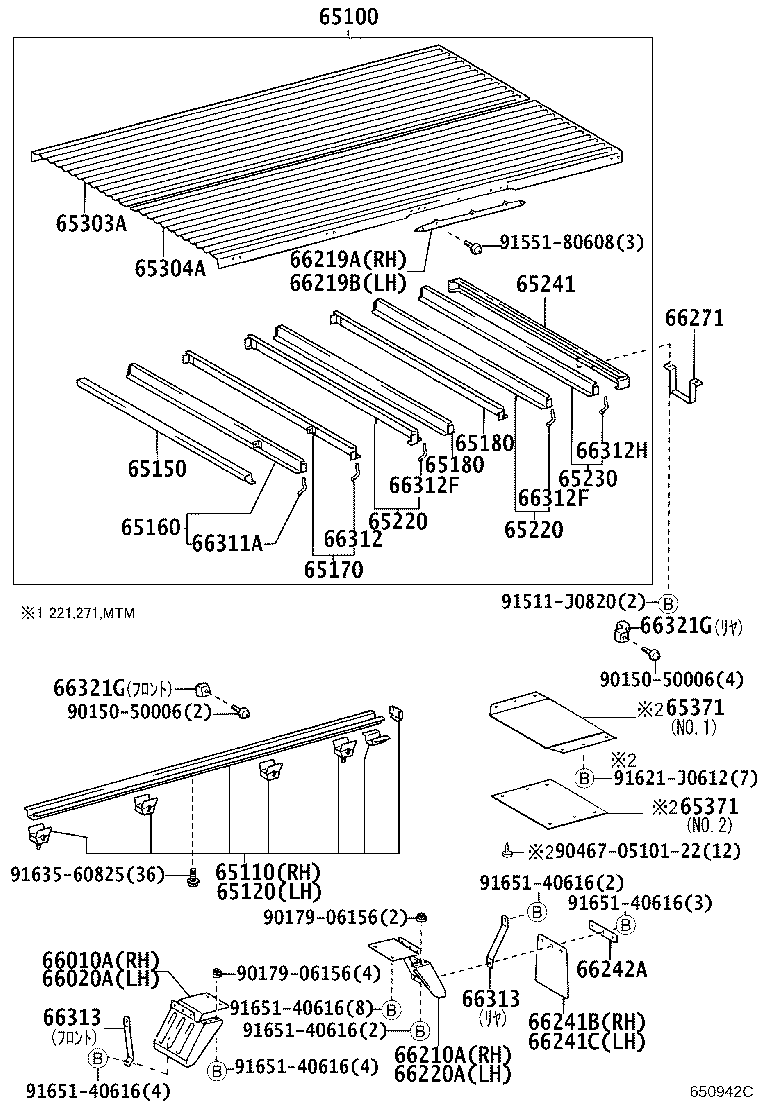

| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-2E470 |
KDY221,27#,LY270..T3..TS..MTM..CBU *** |
1 | ||
| 65100-2E050 |
KDY27#,LY270..T3..TB *** |
1 | ||
| 65100-25B60 |
KDY221,271..T3..TS..MTM..CBU *** |
1 | ||
| 65100-25B80 |
KDY221,271..T3..TS..MTM..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65100-2E051 |
KDY221,271..T3..TB..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-25190 |
KDY22#,27#,LY220,270,RZY220,TRY220..T3..TS..CBU |
1 | ||
| 65110-25180 |
KDY221,27#,LY270..T3..TB..CBU |
1 | ||
| 65110-25191 |
KDY221,271,TRY220..T3..TS..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-25250 |
KDY221,27#,LY270..T3..TS..MTM..CBU |
1 | ||
| 65120-25230 |
KDY221,27#,LY270..T3..TB..CBU |
1 | ||
| 65120-25251 |
KDY221,271..T3..TS..MTM..CBU |
1 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65150-25410 |
KDY28#,LY280..T3..TS..CBU;KDY221,27#,LY270..T3..TS..MTM..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-25380 |
KDY28#,LY280..T3..TS..CBU;KDY221,27#,LY270..T3..TS..MTM..CBU NO.1 |
1 | ||
| 65160-25310 |
KDY221,27#,LY270..T3..TB..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-25230 |
KDY221,27#,LY270..T3..TS..MTM..CBU |
1 | ||
| 65180-25110 |
KDY221,27#,LY270..T3..TB..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-25120 |
KDY221,27#,LY270..T3..TB..CBU |
1 | ||
| 65180-95A07 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-25120 |
KDY221,27#,LY270..T3..TB..CBU |
1 | ||
| 65180-95A07 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU |
2 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65230-25060 |
KDY221,27#,LY270..T3..TB..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65230-25060 |
KDY221,27#,LY270..T3..TB..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65230-95A03 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65241-95A10 |
KDY281..T3..TS..ATM..CBU;KDY22#,271,LY220,RZY220,TRY220..T3..TS..MTM..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65240-25060 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU |
1 | ||
| 65241-25020 |
KDY281..T3..TS..ATM..CBU;KDY221,271,TRY220..T3..TS..MTM..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-25390 |
KDY27#,LY270..T3..TB;KDY22#,LY220,RZY220,TRY220..T2..TB..WT |
1 | ||
| 65303-25570 |
KDY221,271,TRY220..T3..TS..CBU |
1 | ||
| 65303-25411 |
KDY221,271..T3..TB..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-25341 |
KDY221,271..T3..TB..CBU;KDY221,TRY220..T2..TB..WT |
1 | ||
| 65304-25340 |
KDY27#,LY270..T3..TB;KDY22#,LY220,RZY220,TRY220..T2..TB..WT |
1 | ||
| 65304-25470 |
TRY220..T3..CBU;TRY220..TS..WT..CBU;KDY221..T3..TS..ATM..CBU;KDY221,271..(T2,T3)..TS..MTM..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25020 |
KDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25020 |
KDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-25020 |
KDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25020 |
TRY220..T3..CBU;TRY220..TS..WT..CBU;KDY221..T3..TS..ATM..CBU;KDY221,271..(T2,T3)..TS..MTM..CBU;KDY231,281,TRY230..(T2,T3,TW3)..TS..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66229-25010 |
TRY220..T3..CBU;TRY220..TS..WT..CBU;KDY221..T3..TS..ATM..CBU;KDY221,271..(T2,T3)..TS..MTM..CBU;KDY231,281,TRY230..(T2,T3,TW3)..TS..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-25020 |
KDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-25041 |
KDY221,231,271,281,TRY230..T3..TB..CBU |
1 | ||
| 76625-25041 |
KDY221,231,271,281,TRY220,230..(T3,TW1,TW3)..TS..CBU |
1 | ||
| 66241-25040 |
KDY23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-25040 |
KDY23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU |
1 | ||
| 66241-25041 |
KDY221,231,271,281,TRY230..T3..TB..CBU |
1 | ||
| 76625-25041 |
KDY221,231,271,281,TRY220,230..(T3,TW1,TW3)..TS..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-37070 |
KDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU |
1 | ||
| 66242-95012 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW1,TW3)..TS..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-25010 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
1 | ||
| 66271-95A00 |
KDY230..(T3,T4,TW3)..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95014 |
KDY221,271..T3..TS..MTM..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95011 |
KDY271..TS..125T..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66312 - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY28#,LY280..T3..TS..CBU;KDY221,27#,LY270..T3..TS..MTM..CBU |
2 | ||
| 66311-95011 |
KDY281..T3..TS..CBU;KDY221,271..T3..TS..MTM..CBU |
2 | ||
| 66311-37020 |
KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,271,281,TRY220,230..(T3,TW3)..TS..CBU |
4 | ||
| 66311-95011 |
KDY281..(T3,TW3)..TS..CBU;KDY231,271,TRY220,230..T3..TS..CBU |
4 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,271,281,TRY220,230..(T3,TW3)..TS..CBU |
4 | ||
| 66311-95011 |
KDY281..(T3,TW3)..TS..CBU;KDY231,271,TRY220,230..T3..TS..CBU |
4 | ||
| 66312H - HOOK, ROPE | ||||
| 66311-95011 |
KDY221..TS..ATM..CBU;TRY220..TS..(125T,15T)..CBU;KDY221,271..T3..TS..MTM..CBU;KDY231,281,TRY230..(T3,TW3)..TS..CBU |
2 | ||
| 66311-95014 |
KDY22#..ATM..CBU;LY220,RZY220..TS..15T..CBU;TRY220..TS..(125T,15T)..CBU;LY220,270,RZY220..TS..(125T,12T)..ST..CBU;KDY22#,27#,RZY230..(T3,TW3)..TS..MTM..CBU;KDY23#,28#,LY230,280,TRY230..(T3,TW3)..TS..CBU |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-26020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66235-26010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66235-25010 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66236-25020 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-26020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66235-26010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66235-25010 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾘﾔ |
2 | ||
| 66236-25020 |
KDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66331-95010 |
KDY281..T3..TS..ATM..CBU;KDY23#,LY230..T2..TS..WT..CBU;KDY22#,271,LY220,RZY220,TRY220..T3..TS..MTM..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU |
2 | ||
| 66321-92805 |
KDY281..TB..125T;LY230,280..LPG..CBU;LY280..TB..ATM..DSL..CBU;KDY280..ATM..15T..WT..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY280..(T3,TW4)..TB..MTM..CBU;RZY230,TRY230..T2..15T..ST..CBU;KDY23#,LY230..T2..ATM..15T..ST..CBU;KDY22#,LY220,RZY220,TRY220..T2..TB..WT;KDY23#,LY230..TB..MTM..(125T,12T)..CBU;KDY23#,LY230..(T3,TW2,TW4)..TB..ATM..CBU;KDY280,RZY230,TRY230..(T3,TW2,TW4)..TB..CBU;KDY27#,LY270,RZY231,281,TRY231,281..TB..CBU |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321-37030 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66331-95010 |
KDY281..T3..TS..ATM..CBU;KDY23#,LY230..T2..TS..WT..CBU;KDY22#,271,LY220,RZY220,TRY220..T3..TS..MTM..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU |
2 | ||
| 66321-92805 |
KDY281..TB..125T;LY230,280..LPG..CBU;LY280..TB..ATM..DSL..CBU;KDY280..ATM..15T..WT..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY280..(T3,TW4)..TB..MTM..CBU;RZY230,TRY230..T2..15T..ST..CBU;KDY23#,LY230..T2..ATM..15T..ST..CBU;KDY22#,LY220,RZY220,TRY220..T2..TB..WT;KDY23#,LY230..TB..MTM..(125T,12T)..CBU;KDY23#,LY230..(T3,TW2,TW4)..TB..ATM..CBU;KDY280,RZY230,TRY230..(T3,TW2,TW4)..TB..CBU;KDY27#,LY270,RZY231,281,TRY231,281..TB..CBU |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321-37030 |
TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU |
2 | ||
| Common parts | ||||
| 90150-50006 | ||||
| 90179-06156 | ||||
| 90467-0510122 | ||||
| 91511-J0820 | ||||
| 91551-80608 | ||||
| 91621-J0612 | ||||
| 91635-60825 | ||||
| 91651-40616 | ||||
