KDY270-TLMDY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV

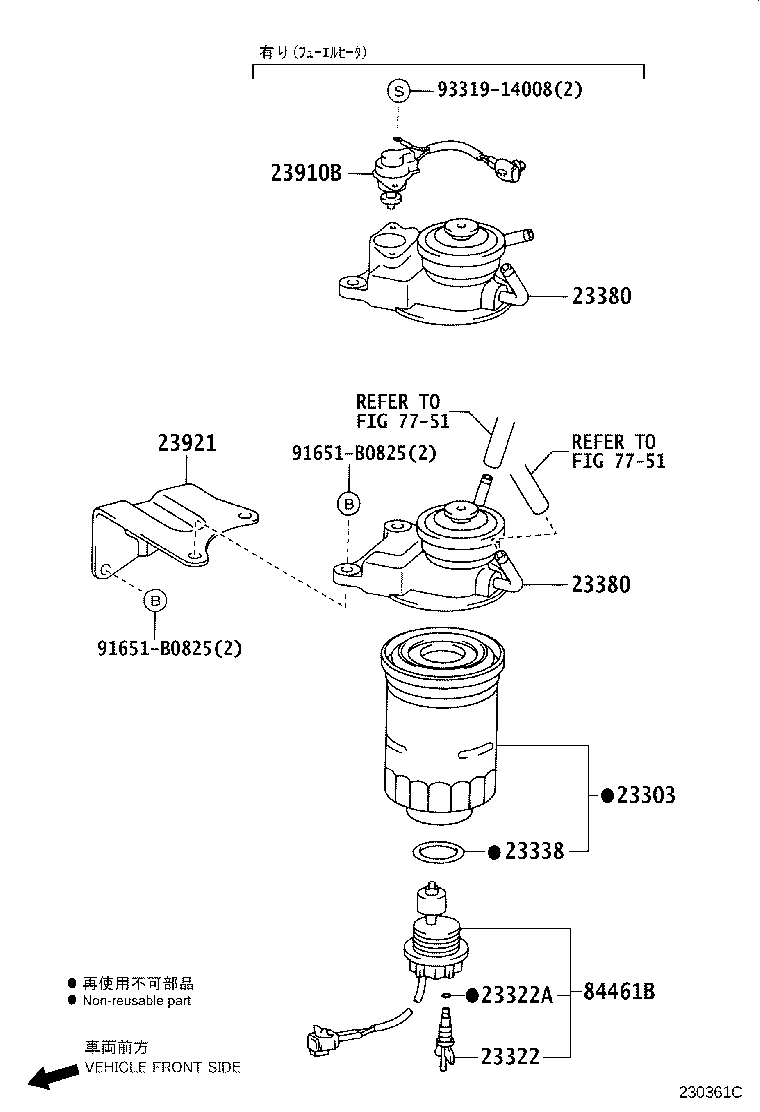

Click highlighted areas on diagram

diagram 23303 23322 23322A 23338 23380 23380 23910B 23921 7751 7751 84461B 91651B0825 91651B0825 9331914008
Part # Description Qty Price
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-30180

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
23910B - HEATER ASSY, FUEL
23910-67060

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
23921 - SUPPORT, FUEL FILTER
23921-54510

1KDFTV,2KDFTV..KDY22#,23#,27#,28#

 1
Common parts
91651-B0825
93319-14008
Linked diagrams
7751
