KDY241V-RRMGY (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 2016
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )KDY241

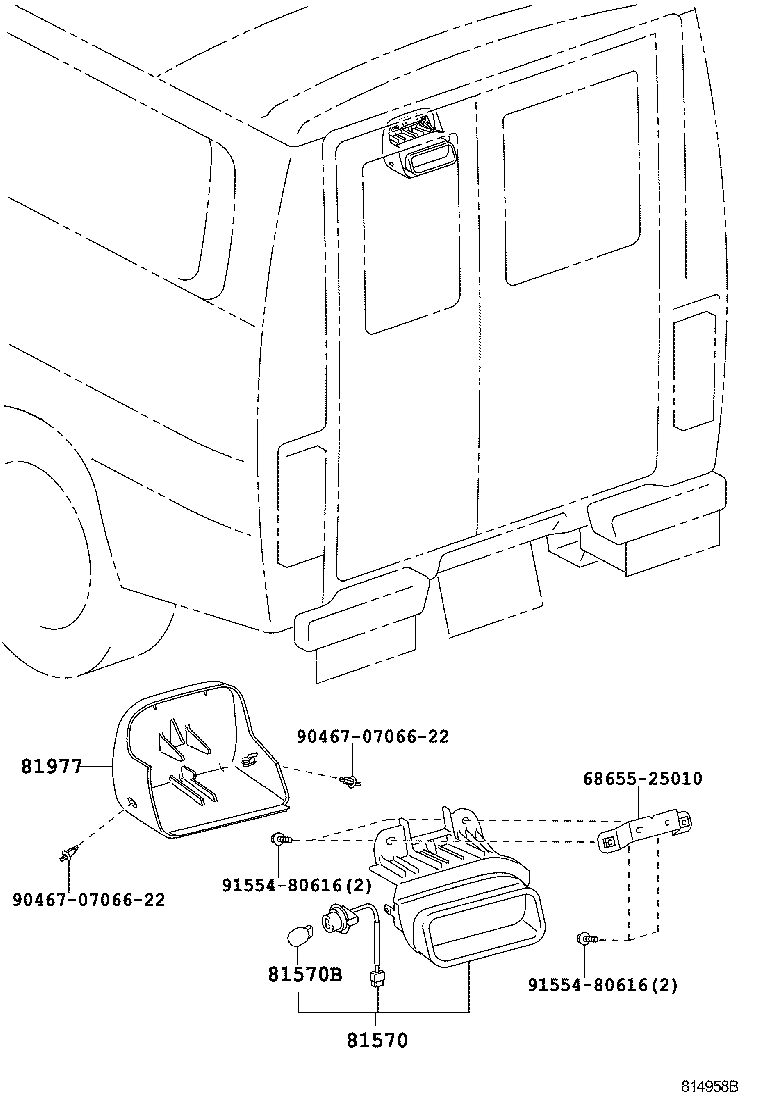

Click highlighted areas on diagram

diagram 6865525010 81570 81570B 81977 904670706622 904670706622 9155480616 9155480616
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-26160

KDY241..06S

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-13043

KDY241..06S

12V 21W

 1
81977 - COVER, CENTER STOP LAMP
81977-26060

KDY241..06S

 1
Common parts
68655-25010
90467-0706622
91554-80616
