KDY231-TTPGY3 (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )KDY231,TRY231,281..ATM..15T

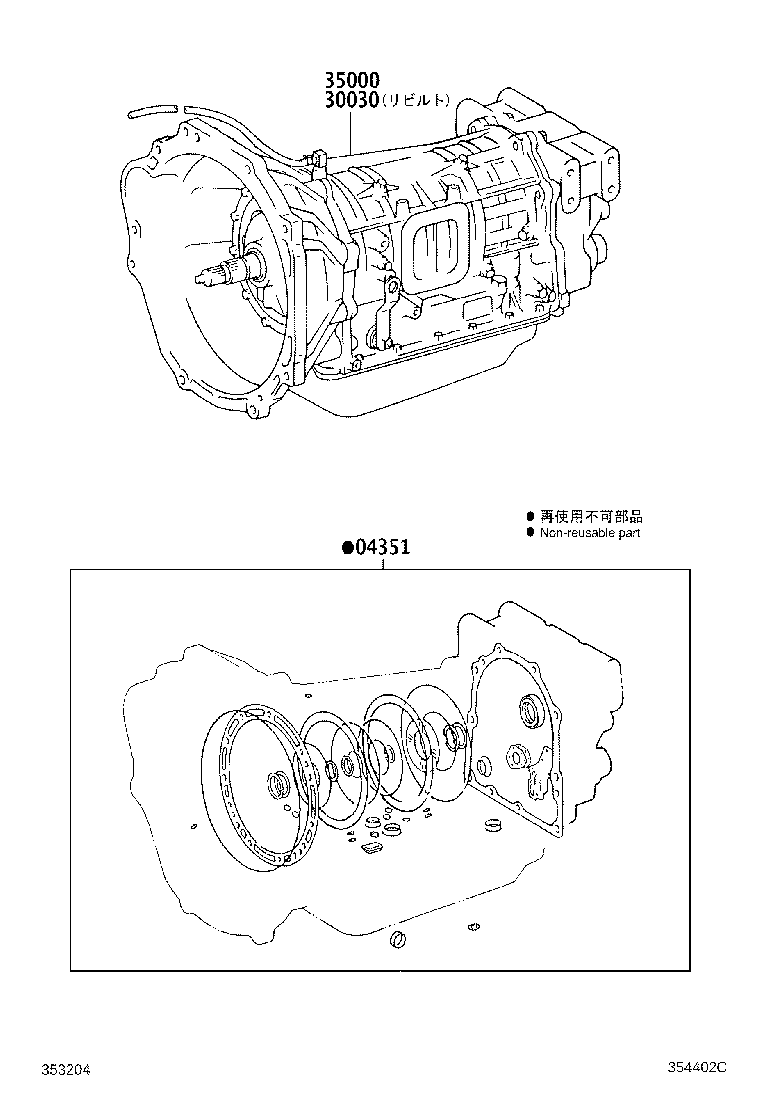

Click highlighted areas on diagram

A442E,A442F

diagram 04351 30030 35000
Part # Description Qty Price
30030 - TRANSMISSION ASSY, REBUILT
30030-25370

KDY231..ATM..15T

 1
30030-25370

KDY231..ATM..15T

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-25370

KDY231..ATM..15T

A442E

 1
35000-25370

KDY231..ATM..15T

A442E

 1
