KDY231-TLPDY3 (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1KDFTV

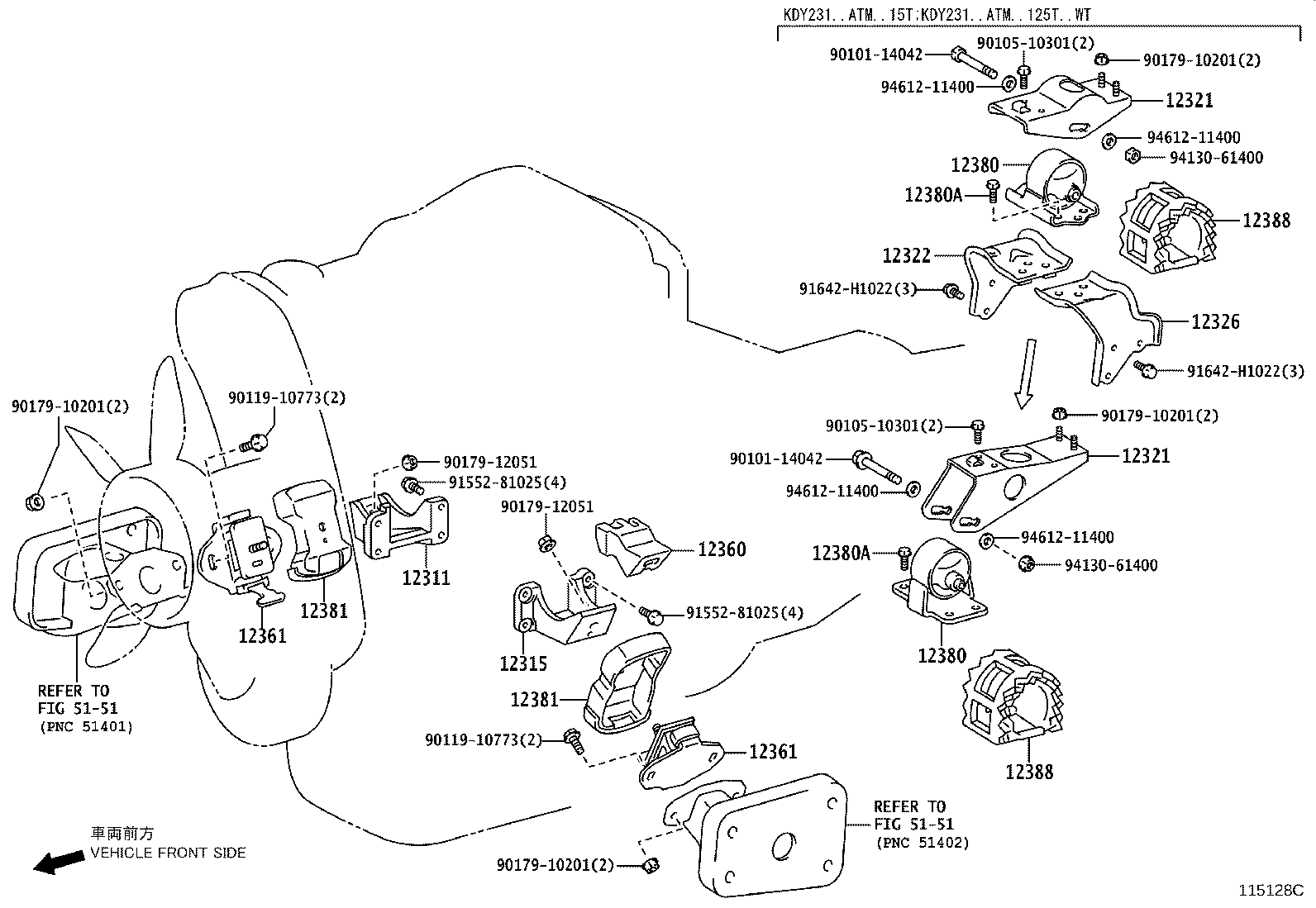

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12326 12360 12361 12361 12380 12380 12380A 12380A 12381 12381 12388 12388 5151 5151 9010114042 9010114042 9010510301 9010510301 9011910773 9011910773 9017910201 9017910201 9017910201 9017910201 9017912051 9017912051 9155281025 9155281025 91642H1022 91642H1022 9413061400 9413061400 9461211400 9461211400 9461211400 9461211400
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30091

1KDFTV..KDY221,231,241,271,281

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-30091

1KDFTV..KDY221,231,241,271,281

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12361-30070

1KDFTV..KDY221,231,241,271,281

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54242

1KDFTV..KDY221,231,241,271,281

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54242

1KDFTV..KDY221,231,241,271,281

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54052

1KDFTV..KDY221,231,241,271,281

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54052

1KDFTV..KDY221,231,241,271,281

 2
Common parts
90101-14042
90105-10301
90119-10773
90179-10201
90179-12051
91552-81025
91642-H1022
94130-61400
94612-11400
Linked diagrams
5151
