KDY231-TLMGY3 (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

Click highlighted areas on diagram

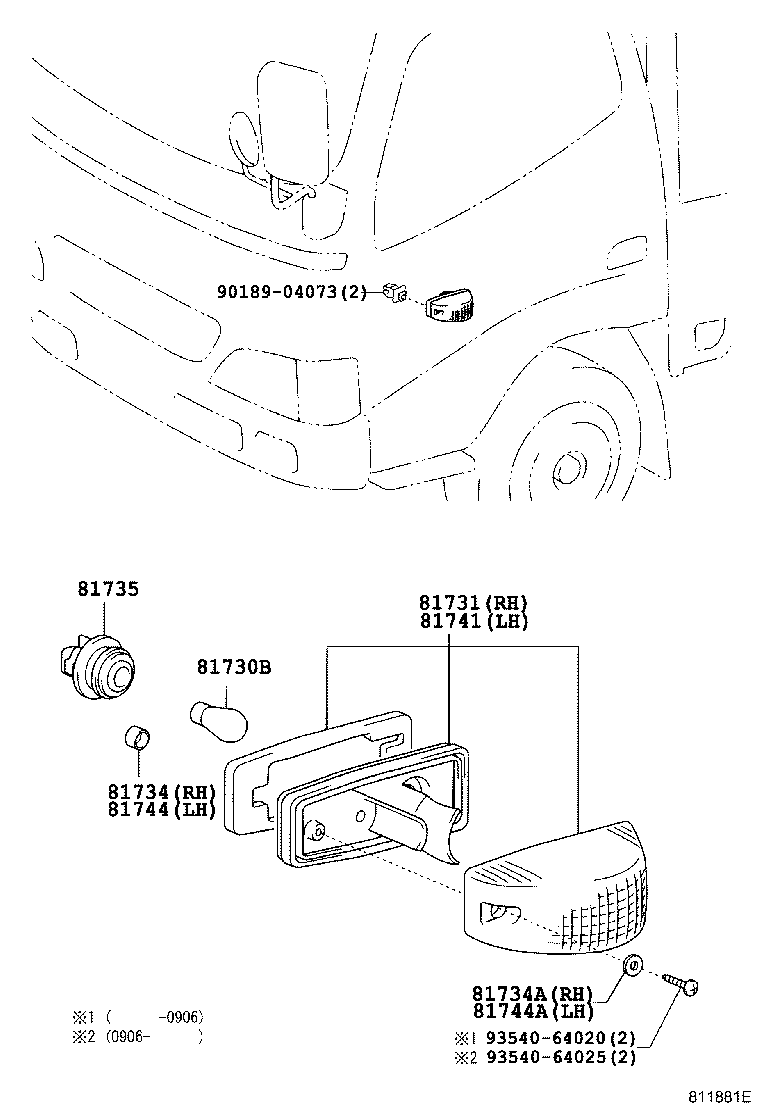

diagram 81730B 81731 81734 81734A 81735 81741 81744 81744A 9018904073 9354064020 9354064025
Part # Description Qty Price
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-11210

KDY221,231,241,271,281,TRY220,23#,281

12V 21W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-25040

KDY221,231,241,271,281,TRY220,23#,281

 1
81734 - GASKET, SIDE TURN SIGNAL LAMP BODY, RH
81734-25040

KDY221,231,241,271,281,TRY220,23#,281

 1
81734A - PROTECTOR, SIDE TURN SIGNAL LAMP, RH
81738-25040

KDY221,231,241,271,281,TRY220,23#,281

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81515-12520

KDY221,231,241,271,281,TRY220,23#,281

 2
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-25040

KDY221,231,241,271,281,TRY220,23#,281

 1
81744 - GASKET, SIDE TURN SIGNAL LAMP BODY, LH
81734-25040

KDY221,231,241,271,281,TRY220,23#,281

 1
81744A - PROTECTOR, SIDE TURN SIGNAL LAMP, LH
81738-25040

KDY221,231,241,271,281,TRY220,23#,281

 1
Common parts
90189-04073
93540-64020
93540-64025
