KDY231-TLMDY3 (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)MTM

Click highlighted areas on diagram

diagram 04311 31410 31410A 31434 31434A 31434A 4702
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-25020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-25040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91611-60865

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 2
31434 - TUBE, CLUTCH RESERVOIR
31434-25060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31434-37260

KDY221,231,241,271,281,TRY220,23#,281..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

KDY221,231,241,271,281,TRY220,23#,281..MTM

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

KDY221,231,241,271,281,TRY220,23#,281..MTM

 2
Linked diagrams
4702

(1610- )MTM

Click highlighted areas on diagram

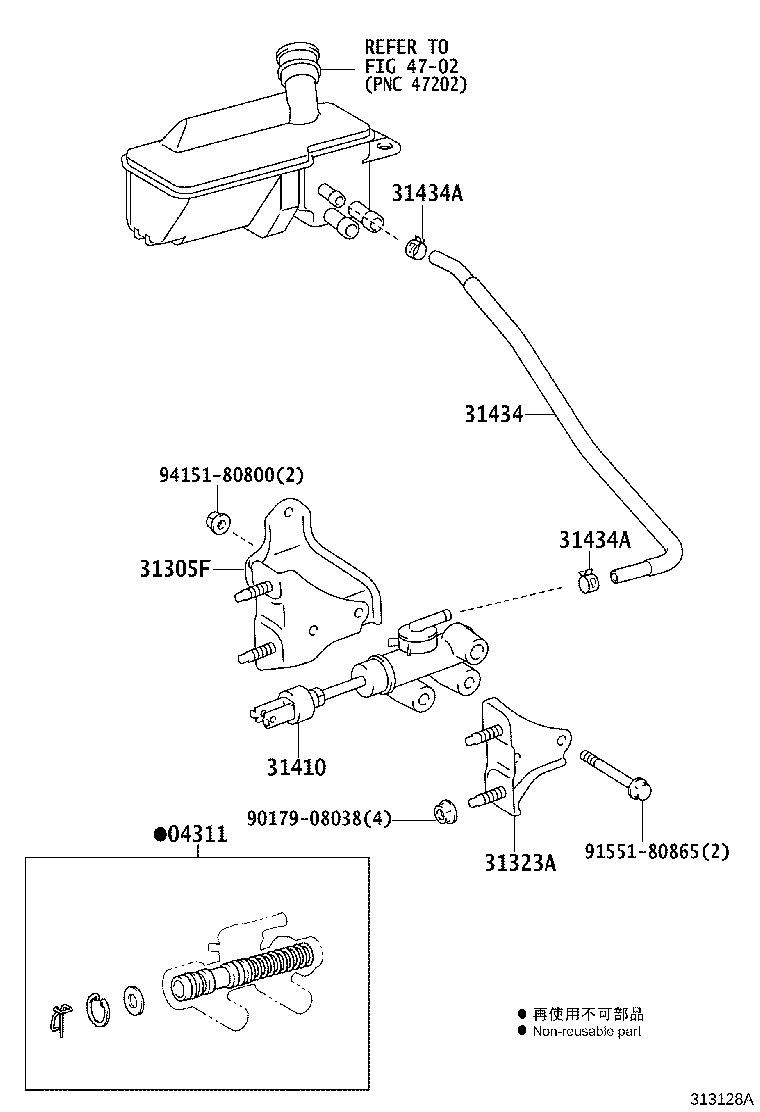

diagram 04311 31305F 31323A 31410 31434 31434A 31434A 4702 9017908038 9155180865 9415180800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-25020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31305F - BRACKET SUB-ASSY, CLUTCH PEDAL
31305-37050

KDY221,231,241,271,281,TRY220,23#,281..MTM

 1
31323A - BRACKET, CLUTCH PEDAL
31323-37120

KDY221,231,241,271,281,TRY220,23#,281..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-25040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-25060

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31434-37260

KDY221,231,241,271,281,TRY220,23#,281..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

KDY221,231,241,271,281,TRY220,23#,281..MTM

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

KDY221,231,241,271,281,TRY220,23#,281..MTM

 2
Common parts
90179-08038
91551-80865
94151-80800
Linked diagrams
4702
