KDY231-TKPFY3 (2007)
Toyota Dyna/Toyoace

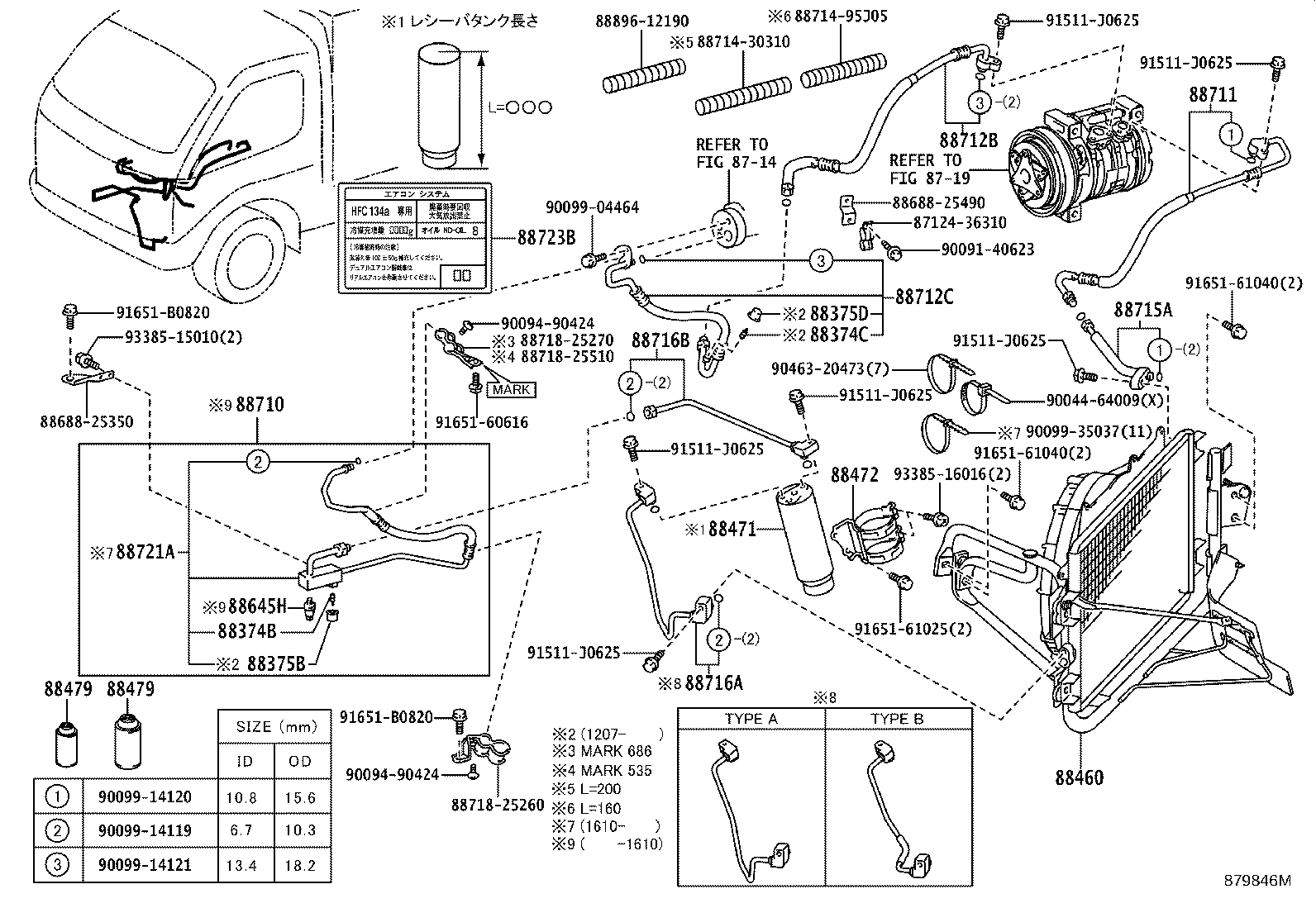

ILLUST NO. 1 OF 3(0709- )KDY221..T3..TS..CBU ; (0709- )KDY231..T2,T3,T4,TW3,TW4..CBU,IV3
ﾚｲﾄｳｼｬ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TRY230..ST..IV6;TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 88374-30010 |
TRY230..ST..IV6;TRY220,23#,281..(T2,T3,T4)..(CBU,IV3) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 |
1 | ||
| 88374-30010 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
TRY230..WT..IV6;TRY230..TS..125T..WT;KDY221,231,241,271,281,RZY220,230,TRY231,281 |
1 | ||
| 88375-30280 |
TRY230..WT..IV6;TRY230..TS..125T..WT;KDY221,231,241,271,281,RZY220,230,TRY231,281 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 |
1 | ||
| 88375-30290 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-25212 |
KDY221,231,241,271,281,TRY220,23#,281..T2,T3,T4,VAN |
1 | ||
| 88460-25212 |
KDY221,231,241,271,281,TRY220,23#,281..T2,T3,T4,VAN |
1 | ||
| 88460-25210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN |
1 | ||
| 88460-25210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..T2,T3,T4,VAN |
1 | ||
| 88460-25211 |
KDY221,231,241,271,281,TRY220,23#,281..T2,T3,T4,VAN |
1 | ||
| 88460-25211 |
KDY221,231,241,271,281,TRY220,23#,281..T2,T3,T4,VAN |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
LY220,230,270,280,RZY220,230..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,23#,281 長さ=187 |
1 | ||
| 88471-34010 |
LY220,230,270,280,RZY220,230..T2,T3,T4;KDY22#,23#,24#,27#,28#,290,LY240,290,RZY231,281,TRY220,23#,281 長さ=187 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-25090 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88472-25090 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88645-60030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-25490 |
KDY221,231,241,271,281 |
1 | ||
| 88711-25490 |
KDY221,231,241,271,281 |
1 | ||
| 88711-25500 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88711-25500 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-25710 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88712-25710 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88712-25821 |
KDY221,231,241,271,281 |
1 | ||
| 88712-25821 |
KDY221,231,241,271,281 |
1 | ||
| 88712-25820 |
KDY221,231,241,271,281 |
1 | ||
| 88712-25820 |
KDY221,231,241,271,281 |
1 | ||
| 88712-25801 |
TRY220,23#,281 |
1 | ||
| 88712-25801 |
TRY220,23#,281 |
1 | ||
| 88712-25800 |
TRY220,23#,281 |
1 | ||
| 88712-25800 |
TRY220,23#,281 |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-25720 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 |
1 | ||
| 88712-25720 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-25270 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 |
1 | ||
| 88715-25270 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-25230 |
LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI |
1 | ||
| 88716-25230 |
LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI |
1 | ||
| 88716-25360 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 ﾚｲﾄｳｼﾔ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 88716-25360 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 ﾚｲﾄｳｼﾔ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 88716-25230 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 ﾚｲﾄｳｼﾔ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 88716-25230 |
KDY221..T2..ST..IV3;KDY231..T3..15T..IV3;KDY281..T3..125T..IV3 ﾚｲﾄｳｼﾔ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 88716-25230 |
KDY281..T3..IV3;KDY240,LY240..03S;LY230..TS..WT..IV3;KDY221..(T2,T3)..IV3;KDY23#..T3..15T..IV3;LY220..MTM..125T..ST..IV3;KDY23#,LY220..15T..WT..IV3;KDY221,280..(T3,T4)..TB..IV3;KDY270,280..T3..MTM..125T..IV3;LY230,280..(T3,T4)..MTM..DSL..IV3;KDY220,271,LY270..(125T,15T)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88716-25230 |
KDY281..T3..IV3;KDY240,LY240..03S;LY230..TS..WT..IV3;KDY221..(T2,T3)..IV3;KDY23#..T3..15T..IV3;LY220..MTM..125T..ST..IV3;KDY23#,LY220..15T..WT..IV3;KDY221,280..(T3,T4)..TB..IV3;KDY270,280..T3..MTM..125T..IV3;LY230,280..(T3,T4)..MTM..DSL..IV3;KDY220,271,LY270..(125T,15T)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88716-25361 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88716-25361 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88716-25360 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88716-25360 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-25260 |
KDY231..WT..CBU;KDY281..125T..IV3;KDY221..T2..ST..IV3;KDY221..T4..TS..IV3;KDY221..(T2,T4)..CBU;KDY231..125T..WT..IV3;KDY231..(125T,15T)..ST;TRY220,23#,281..125T,15T;KDY241,271,281..(03S,TB,TS)..(CBU,IV6) |
1 | ||
| 88716-25260 |
KDY231..WT..CBU;KDY281..125T..IV3;KDY221..T2..ST..IV3;KDY221..T4..TS..IV3;KDY221..(T2,T4)..CBU;KDY231..125T..WT..IV3;KDY231..(125T,15T)..ST;TRY220,23#,281..125T,15T;KDY241,271,281..(03S,TB,TS)..(CBU,IV6) |
1 | ||
| 88716-25261 |
KDY221,231,241,271,281,TRY220,23#,281 ﾚｲﾄｳｼﾔ |
1 | ||
| 88716-25261 |
KDY221,231,241,271,281,TRY220,23#,281 ﾚｲﾄｳｼﾔ |
1 | ||
| 88716-25260 |
KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 88716-25260 |
KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-25230 |
TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 88721-25230 |
TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI |
1 | ||
| 88721-25320 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88721-25320 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-37040 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 88733-37040 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 87124-36310 | ||||
| 88688-25350 | ||||
| 88688-25490 | ||||
| 88714-30310 | ||||
| 88714-95J05 | ||||
| 88718-25260 | ||||
| 88718-25270 | ||||
| 88718-25510 | ||||
| 88896-12190 | ||||
| 90044-64009 | ||||
| 90091-40623 | ||||
| 90094-90424 | ||||
| 90099-04464 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-35037 | ||||
| 90463-20473 | ||||
| 91511-J0625 | ||||
| 91651-60616 | ||||
| 91651-61025 | ||||
| 91651-61040 | ||||
| 91651-B0820 | ||||
| 93385-15010 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
