KDY231-TGPGY6 (2016)

Toyota Dyna/Toyoace

Production Oct 2016 - Sep 9999
Engine 1KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

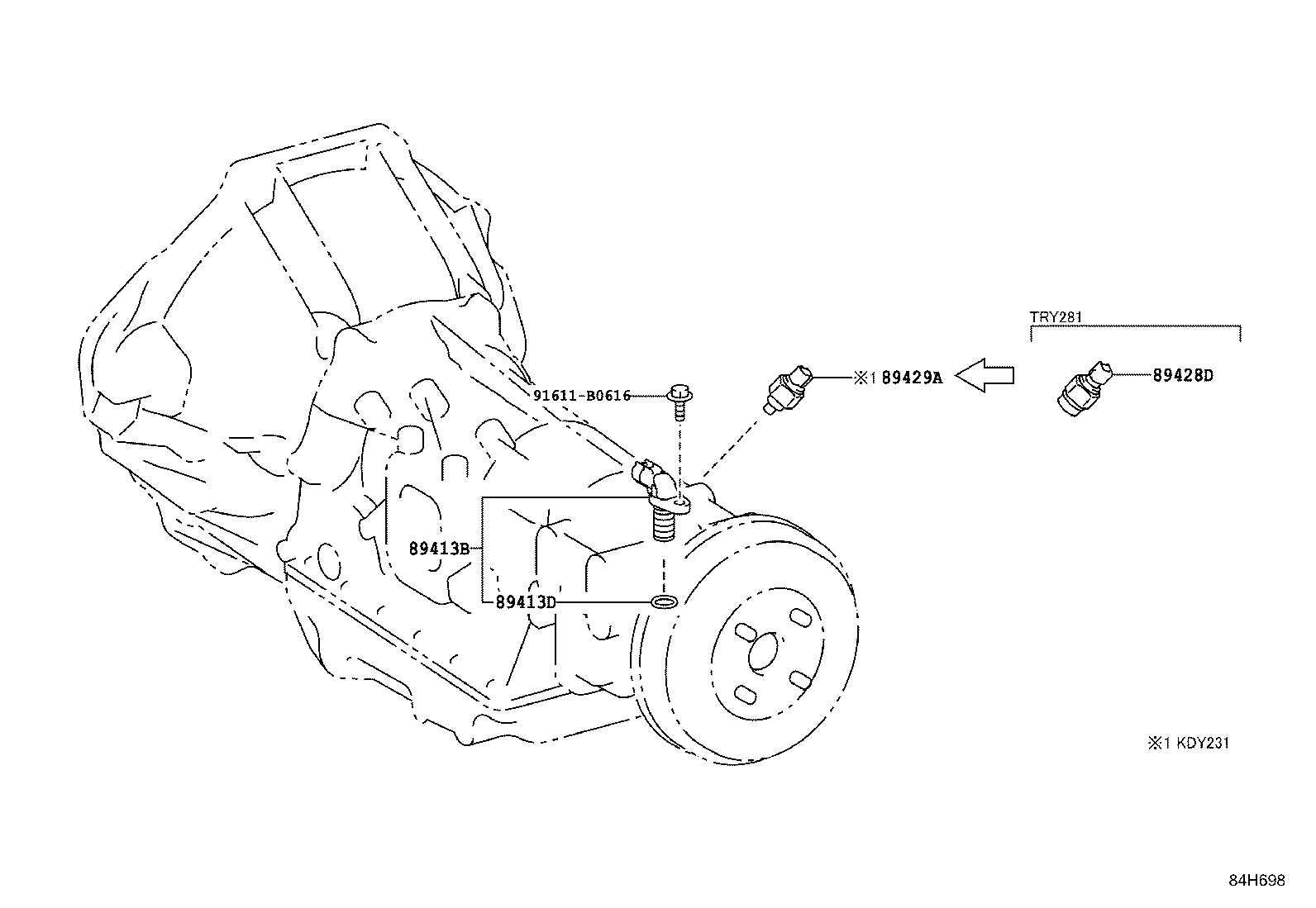

ILLUST NO. 1 OF 2(1610- )ATM..15T ; (1610- )ATM..125T..WT

Click highlighted areas on diagram

ﾄﾗﾝｽﾐｯｼｮﾝ(A442E,A442F)

diagram 89413B 89413D 89428D 89429A 91611B0616
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32011

KDY231..ATM..125T..WT;KDY231,TRY23#,281..ATM..15T

 1
89413-32010

KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T

 1
89429A - SENSOR, TEMPERATURE
89429-34010

LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM

 1
Common parts
91611-B0616

ILLUST NO. 2 OF 2(1610- )ATM

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 5564137021 8401 84722 89530 89530 9046707211 9155180814
Part # Description Qty Price
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-25250

KDY231..ATM..15T;KDY231..ATM..125T..WT

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-25250

KDY231..ATM..15T;KDY231..ATM..125T..WT

 1
Common parts
55641-37021
90467-07211
91551-80814
Linked diagrams
8401
