KDY231-TBPDY6 (2007)
Toyota Dyna/Toyoace

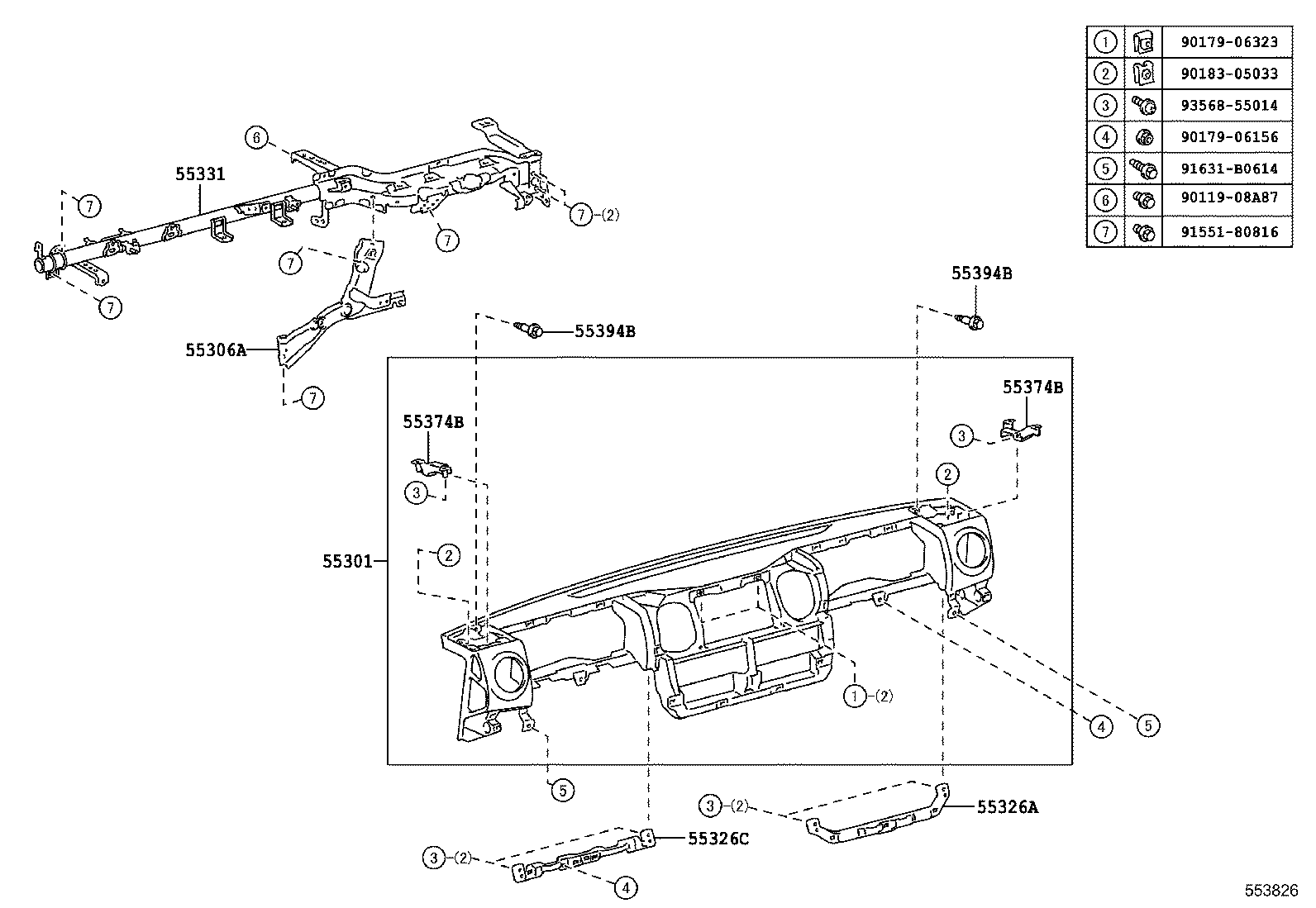

ILLUST NO. 1 OF 2(0107-1610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45288C - PLATE, STEERING COLUMN COVER | ||||
| 45288-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 45288-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 45288-37021 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 45288-37022 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-37022B0 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1# |
1 | ||
| 55301-37012B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55301-37012B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55301-37090C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55301-37022B1 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55306-37073 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55306-37072 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55306-37071 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07041P5 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 90467-07041B8 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-37210 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 55330-37220 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 55394-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 55970A - DUCT ASSY, SIDE DEFROSTER, RH | ||||
| 55971-37050 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 55980A - DUCT ASSY, SIDE DEFROSTER, LH | ||||
| 55972-37050 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-37041 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 55707-37010 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 61182D - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-37040 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61184-37070 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-37012B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 73970-37021C0 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM1# |
1 | ||
| 73970-37030C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 73970-37031C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 73970-37040C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 73970-37012B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90179-06156 | ||||
| 90179-06278 | ||||
| 90179-08102 | ||||
| 90183-05103 | ||||
| 90249-04057 | ||||
| 90467-05101B2 | ||||
| 90467-14013 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-B0614 | ||||
| 93568-55016 | ||||

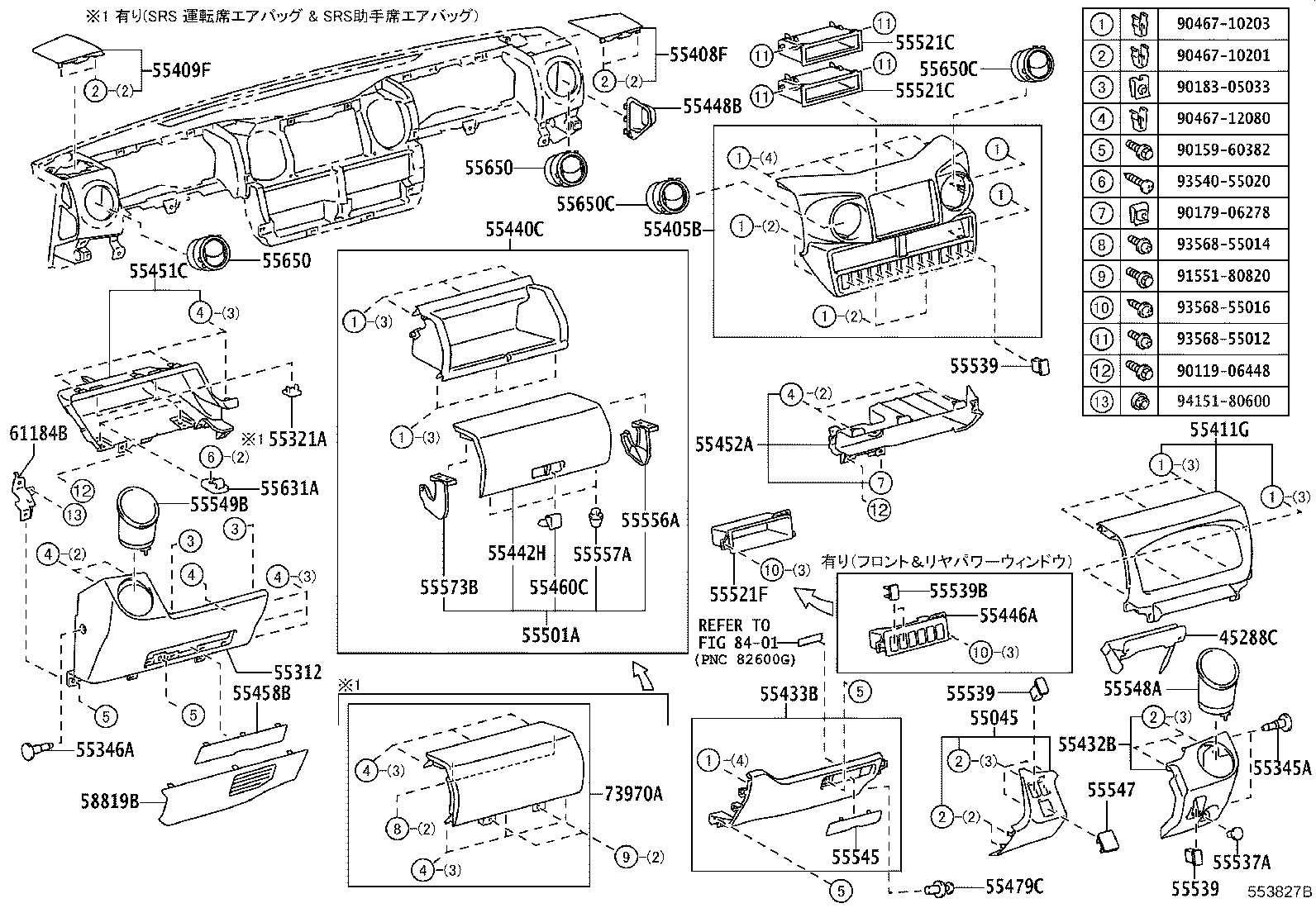

ILLUST NO. 2 OF 2(0107-1610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-37010 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55429-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55326-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-37010 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37150 |
KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾓｸﾒ |
1 | ||
| 55405-37151 |
KDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4 ﾓｸﾒ |
1 | ||
| 55405-37210C0 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｼﾙﾊﾞ- ﾄｿｳ,BLACK,TRIM1# |
1 | ||
| 55405-37141 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55405-37140 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-25021B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55411-25020B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55411-25021B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55411-37060C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-37020 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B6 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55441-20140P2 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-37020B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55448-37040C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55448-37020B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55458-37030B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55458-37011B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55458-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B8 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 90467-07041P5 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55320-25011B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55320-25011B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07191C1 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 90467-07041B8 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-07041P5 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-37010B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55550-37011B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55550-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55511-37020B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55511-37021B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55511-37021B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
KDY221..TS;TRY231..ATM;KDY231..T4..CBU;KDY231..T4..TB..ATM..IV3;KDY231..T2,T3,TW2,TW3,TW4;KDY221,TRY231..TB..MTM..CBU;KDY241,271,281,TRY220,230,281 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(2 ｽﾋﾟ-ｶ) |
3 | ||
| 55521-37030 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(2 ｽﾋﾟ-ｶ) |
3 | ||
| 55521-37030 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 55521-37030 |
KDY221..TS;TRY231..ATM;KDY231..T4..CBU;TRY230..TB..125T;KDY231..TW2..TB..CBU;KDY231..TW2..MTM..IV3;KDY231,TRY230..ST..IV6;KDY241,271,281,TRY220,281;KDY231..(T4,TW2)..TB..ATM..IV3;KDY231..(T2,T3,TW4)..(CBU,IV3);TRY230..(T2,T3,T4,TW1)..(CBU,IV3);KDY221,TRY231..(T2,T4)..TB..MTM..CBU ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-37010B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55531-37010B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55532C - STOPPER, GLOVE DOOR | ||||
| 55532-37030 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-37020B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55545-37070B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55545-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55545-37011B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-20020B2 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55547-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55547-37010B2 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55556B - SPRING, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55518-37010 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-37030B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55565-37030B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-38010 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-38010 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-37010 |
TRY230..ATM..15T;KDY221,231,281..ATM |
1 | ||
| 55641-37011 |
TRY230..ATM..15T;KDY221,231,281,TRY231,281..ATM |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-37021 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37030B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55650-37070B0 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｼﾙﾊﾞ- ﾄｿｳ,DK.GRAY,TRIM1# |
2 | ||
| 55650-37030B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55660D - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55660-37010B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55660-37010B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-37030B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55961-37030B1 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 90468-25003 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 55963-50010 | ||||
| 90119-06022 | ||||
| 90159-60382 | ||||
| 90249-04002 | ||||
| 90467-09087 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90541-05080 | ||||
| 91551-80614 | ||||
| 91554-80614 | ||||
| 93560-53008 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 2(1610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-37022B0 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM1# |
1 | ||
| 55301-37012B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55301-37012B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55301-37090C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55301-37022B1 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-37011 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55306-37073 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55306-37072 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55306-37071 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55429-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55326-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55326C - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55429-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-37210 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 55330-37220 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55353-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55353-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 55394-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
4 | ||
| 55394-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 90119-08A87 | ||||
| 90179-06156 | ||||
| 90179-06323 | ||||
| 90183-05033 | ||||
| 91551-80816 | ||||
| 91631-B0614 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(1610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45288C - PLATE, STEERING COLUMN COVER | ||||
| 45288-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 45288-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 45288-37021 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 45288-37022 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-37010B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55321A - COVER,INSTRUMENT PANEL HOLE | ||||
| 58839-37030B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
2 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-07041P5 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-07041P5 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37150 |
KDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4 ﾓｸﾒ |
1 | ||
| 55405-37151 |
KDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4 ﾓｸﾒ |
1 | ||
| 55405-37210C0 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｼﾙﾊﾞ- ﾄｿｳ,BLACK,TRIM1# |
1 | ||
| 55405-37141 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55405-37140 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-37010C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-37010C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-25021B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55411-25020B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55411-25021B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55411-37060C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55046-37020B0 |
KDY221,231,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-37060B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-37020C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-37020C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-37020B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55448-37040C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55448-37020B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 55451-37021B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-37010B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55458-37030B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55458-37011B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55458-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07191C1 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 90467-07041B8 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-07041P5 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
2 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-37030C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
KDY221..TS;TRY231..ATM;KDY231..T4..CBU;KDY231..T4..TB..ATM..IV3;KDY231..T2,T3,TW2,TW3,TW4;KDY221,TRY231..TB..MTM..CBU;KDY241,271,281,TRY220,230,281 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(2 ｽﾋﾟ-ｶ) |
3 | ||
| 55521-37030 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(2 ｽﾋﾟ-ｶ) |
3 | ||
| 55521-37030 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 55521-37030 |
KDY221..TS;TRY231..ATM;KDY231..T4..CBU;TRY230..TB..125T;KDY231..TW2..TB..CBU;KDY231..TW2..MTM..IV3;KDY231,TRY230..ST..IV6;KDY241,271,281,TRY220,281;KDY231..(T4,TW2)..TB..ATM..IV3;KDY231..(T2,T3,TW4)..(CBU,IV3);TRY230..(T2,T3,T4,TW1)..(CBU,IV3);KDY221,TRY231..(T2,T4)..TB..MTM..CBU ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
KDY221..TS;TRY231..ATM;KDY231..T4..CBU;KDY231..T4..TB..ATM..IV3;KDY231..T2,T3,TW2,TW3,TW4;KDY221,TRY231..TB..MTM..CBU;KDY241,271,281,TRY220,230,281 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(2 ｽﾋﾟ-ｶ) |
3 | ||
| 55521-37030 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(2 ｽﾋﾟ-ｶ) |
3 | ||
| 55521-37030 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
2 | ||
| 55521-37030 |
KDY221..TS;TRY231..ATM;KDY231..T4..CBU;TRY230..TB..125T;KDY231..TW2..TB..CBU;KDY231..TW2..MTM..IV3;KDY231,TRY230..ST..IV6;KDY241,271,281,TRY220,281;KDY231..(T4,TW2)..TB..ATM..IV3;KDY231..(T2,T3,TW4)..(CBU,IV3);TRY230..(T2,T3,T4,TW1)..(CBU,IV3);KDY221,TRY231..(T2,T4)..TB..MTM..CBU ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55521-89102 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-37020C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK |
1 | ||
| 55537A - COVER, THROTTLE KNOB HOLE | ||||
| 55537-95010B2 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55545-37070B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55545-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55545-37011B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-20020B2 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55547-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55547-37010B2 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-37020B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-37010B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55556A - ARM, GLOVE COMPARTMENT DOOR CHECK, RH | ||||
| 55556-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 55573B - ARM, GLOVE COMPARTMENT DOOR CHECK, LH | ||||
| 55573-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 55631A - STOPPER, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 74348-37010B0 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37070B0 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｼﾙﾊﾞ- ﾄｿｳ,DK.GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37070B0 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｼﾙﾊﾞ- ﾄｿｳ,DK.GRAY,TRIM1# |
2 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37030B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55650-37070B0 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｼﾙﾊﾞ- ﾄｿｳ,DK.GRAY,TRIM1# |
2 | ||
| 55650-37030B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37030B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 55650-37070B0 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ｼﾙﾊﾞ- ﾄｿｳ,DK.GRAY,TRIM1# |
2 | ||
| 55650-37030B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 58819B - COVER, FRONT HEATER | ||||
| 87114-37010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61184-37070 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-37012B1 |
KDY221,231,241,271,281,TRY220,23#,281 GRAY,TRIM1# |
1 | ||
| 73970-37021C0 |
KDY221,231,241,271,281,TRY220,23#,281 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM1# |
1 | ||
| 73970-37030C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 73970-37031C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 73970-37040C0 |
KDY221,231,241,271,281,TRY220,23#,281 BLACK,TRIM1# |
1 | ||
| 73970-37012B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06448 | ||||
| 90159-60382 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91551-80820 | ||||
| 93540-55020 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
