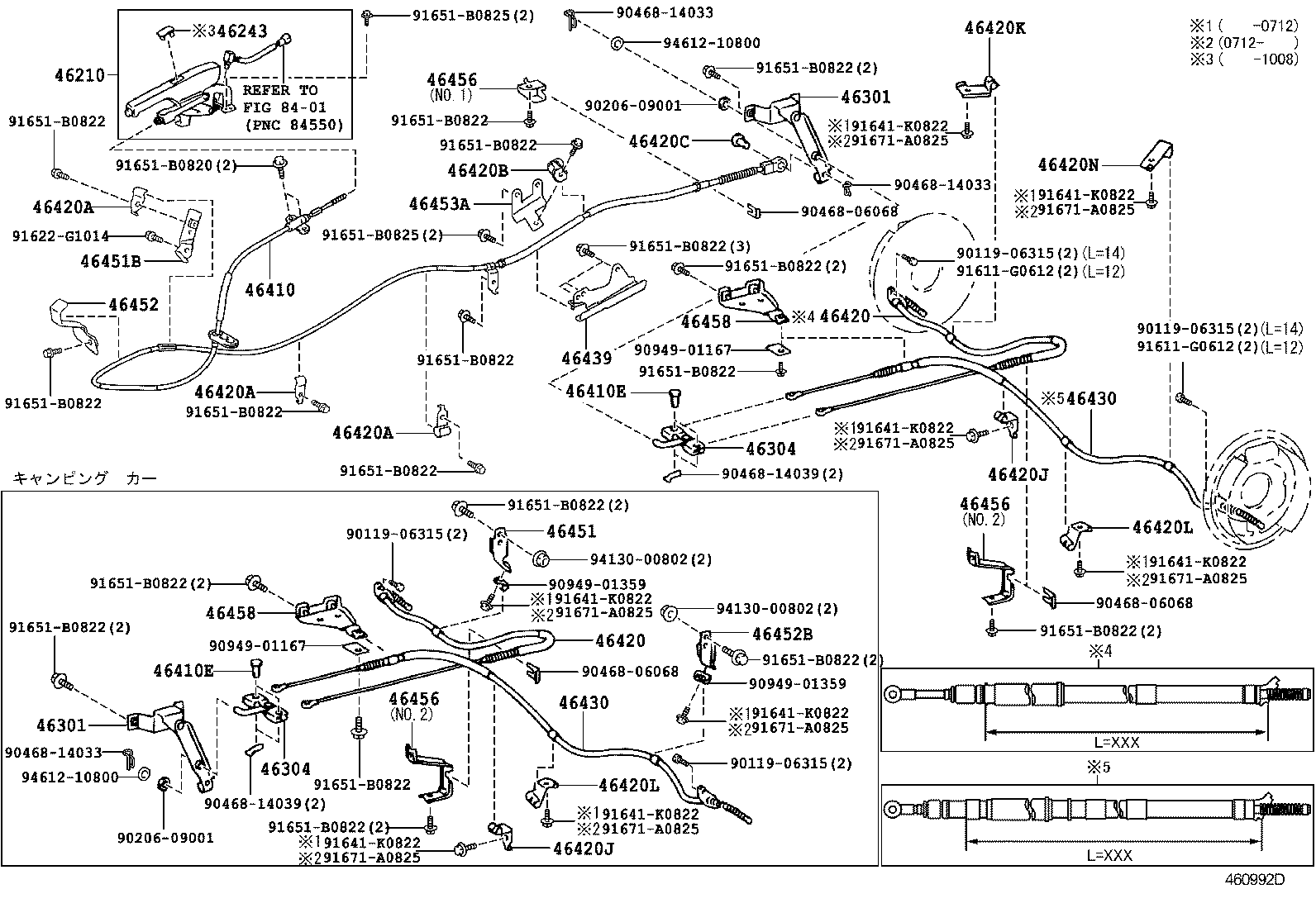

KDY231-TBPDY3 (2007)
Toyota Dyna/Toyoace
(0709- )KDY281..T2,T3,TW3..125T,1T ; (0709-)KDY221,231,271..125T,1T..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-25030C0 |
KDY281,TRY230..TW1;KDY231,TRY230..TB..125T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..15T..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 46210-37012B0 |
KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-25030B0 |
KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T) DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-25030C0 |
TRY230..IV6;KDY231..WT..IV6;KDY221,271,TRY220..ST;KDY231..TS..(125T,1T);KDY281..(T2,T3,TW3)..(125T,1T);TRY230..(T2,T3,TW2,TW3)..TS..(125T,1T)..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-37020B0 |
KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46320-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46320-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-25010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-25010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25240 |
KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-10044 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
2 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-10044 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
2 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25400 |
KDY23#,28#,LY230,280,RZY230,TRY230..(T3,TW3)..(125T,1T)..(CBU,IV3) |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25400 |
KDY23#,28#,LY230,280,RZY230,TRY230..(T3,TW3)..(125T,1T)..(CBU,IV3) |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-60040 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08017 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-25030 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-25030 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46421-25010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46431-25010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46431-25010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE) | ||||
| 46431-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-25100 |
KDY23#,28#,LY230,280,RZY230,TRY230..(T3,TW3)..(125T,1T)..(CBU,IV3) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-25100 |
KDY23#,28#,LY230,280,RZY230,TRY230..(T3,TW3)..(125T,1T)..(CBU,IV3) |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 33826-37210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-25070 |
KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T) |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST NO.2 |
1 | ||
| 46456-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST NO.1 |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST NO.2 |
1 | ||
| 46456-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST NO.1 |
1 | ||
| 46456 - BRACKET, CABLE RETAINING | ||||
| 46457-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST NO.2 |
1 | ||
| 46456-25020 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST NO.1 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-25010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-25010 |
KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90206-09001 | ||||
| 90468-06068 | ||||
| 90468-14033 | ||||
| 90468-14039 | ||||
| 90949-01167 | ||||
| 90949-01359 | ||||
| 91611-G0612 | ||||
| 91622-G1014 | ||||
| 91641-K0822 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 91671-A0825 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
