KDY231-TBPDY3 (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1KDFTV

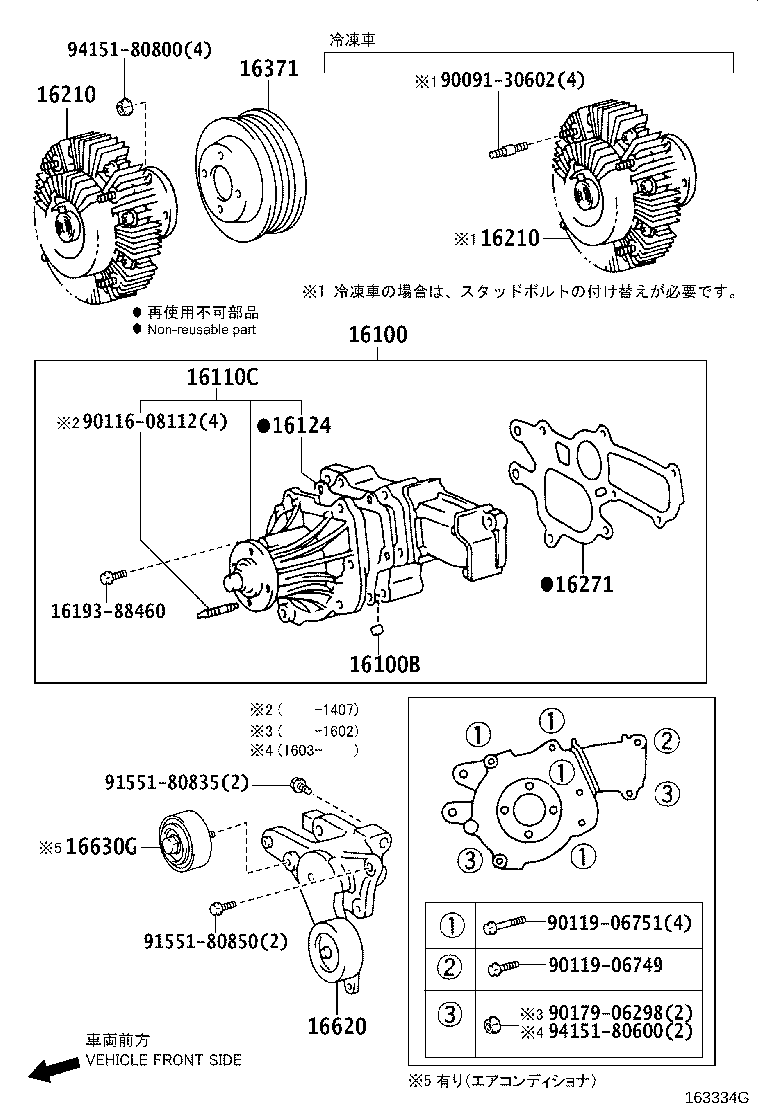

Click highlighted areas on diagram

diagram 16100 16100B 16110C 16124 1619388460 16210 16210 16271 16371 16620 16630G 9009130602 9011608112 9011906749 9011906751 9017906298 9155180835 9155180850 9415180600 9415180800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69357

1KDFTV..KDY221,231,241,271,281

 1
16100B - PIN, RING(FOR WATER PUMP SET)
16159-70040

1KDFTV..KDY221,231,241,271,281

 1
16210 - COUPLING ASSY, FLUID
16210-30011

1KDFTV..KDY221,231,241,271,281

 1
16210 - COUPLING ASSY, FLUID
16210-30011

1KDFTV..KDY221,231,241,271,281

 1
Common parts
16193-88460
90091-30602
90116-08112
90119-06749
90119-06751
90179-06298
91551-80835
91551-80850
94151-80600
94151-80800
