KDY231-PGMEY3 (2007)

Toyota Dyna/Toyoace

Production Sep 2007 - Sep 9999
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )TRY220,23#,281

Click highlighted areas on diagram

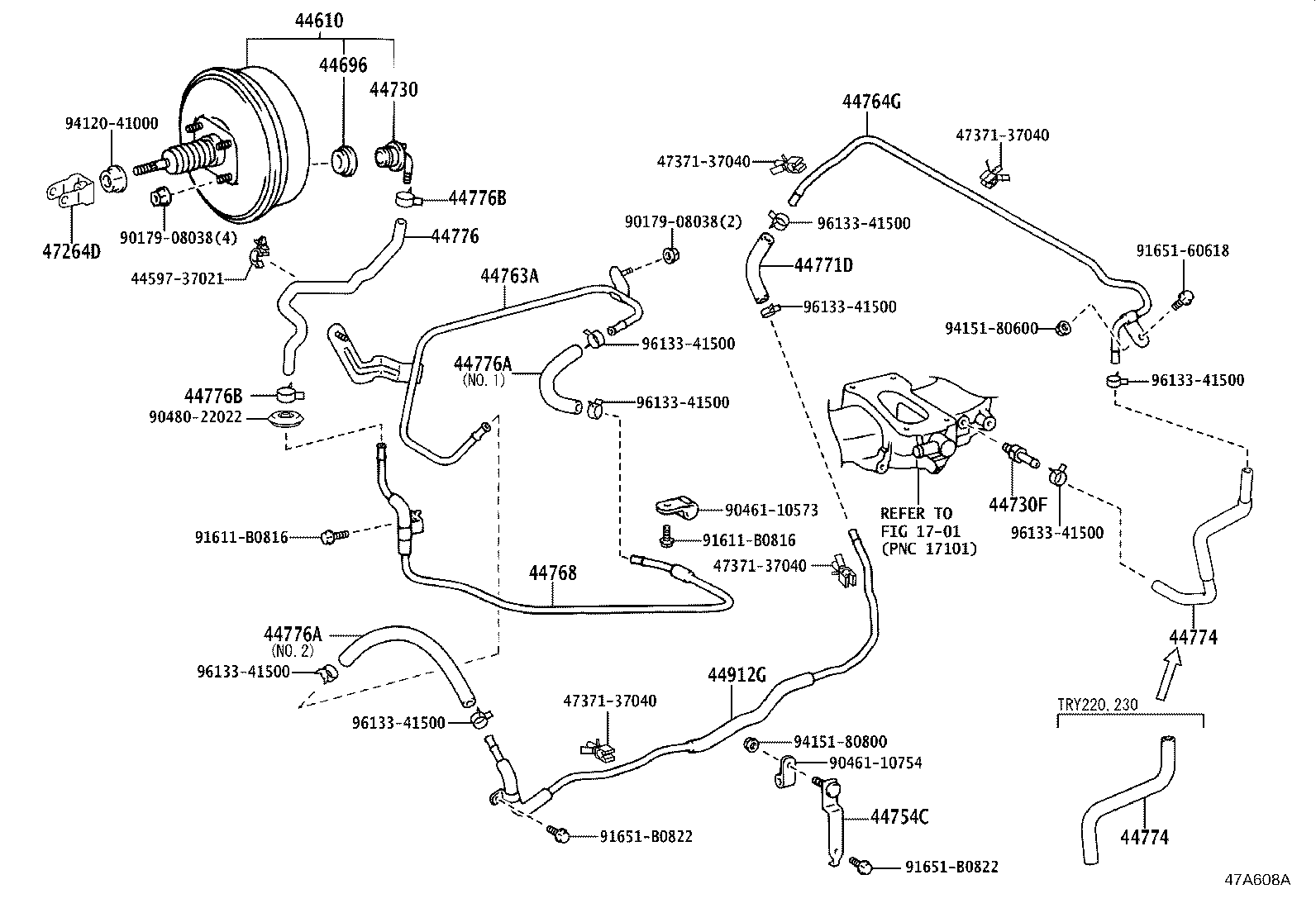

diagram 1701 4459737021 44610 44696 44730 44730F 44754C 44763A 44764G 44768 44771D 44774 44774 44776 44776A 44776A 44776B 44776B 44912G 47264D 4737137040 4737137040 4737137040 4737137040 9017908038 9017908038 9046110573 9046110754 9048022022 91611B0816 91611B0816 9165160618 91651B0822 91651B0822 9412041000 9415180600 9415180800 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-25340

TRY220,23#,281

 1
44610-25350

KDY221,231,241,271,281

 1
44610-25310

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL

 1
44696 - GROMMET, CHECK VALVE
90480-24439

TRY220,23#,281

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

TRY220,23#,281

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-25111

TRY220,23#,281

 1
44768 - TUBE, BOOSTER VACUUM
44768-25080

KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS)

 1
44768-25080

TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
44768-25080

KDY271,281,TRY220;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..T2,T4,VAN;KDY231,TRY230..(T2,T3,T4,TW1,TW4)..(CBU,IV3)

 1
44776 - HOSE, BRAKE BOOSTER
44776-37370

KDY221,231,241,271,281,TRY220,23#,281

 1
44776-25040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90466-15003

KDY221,231,241,271,281,TRY220,23#,281

 2
44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90466-15003

KDY221,231,241,271,281,TRY220,23#,281

 2
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-25020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47264-42010

KDY221,231,241,271,281,TRY220,23#,281

 1
Common parts
44597-37021
47371-37040
90179-08038
90461-10573
90461-10754
90480-22022
91611-B0816
91651-60618
91651-B0822
94120-41000
94151-80600
94151-80800
96133-41500
Linked diagrams
1701

(1610- )KDY221,231,241,271,281

Click highlighted areas on diagram

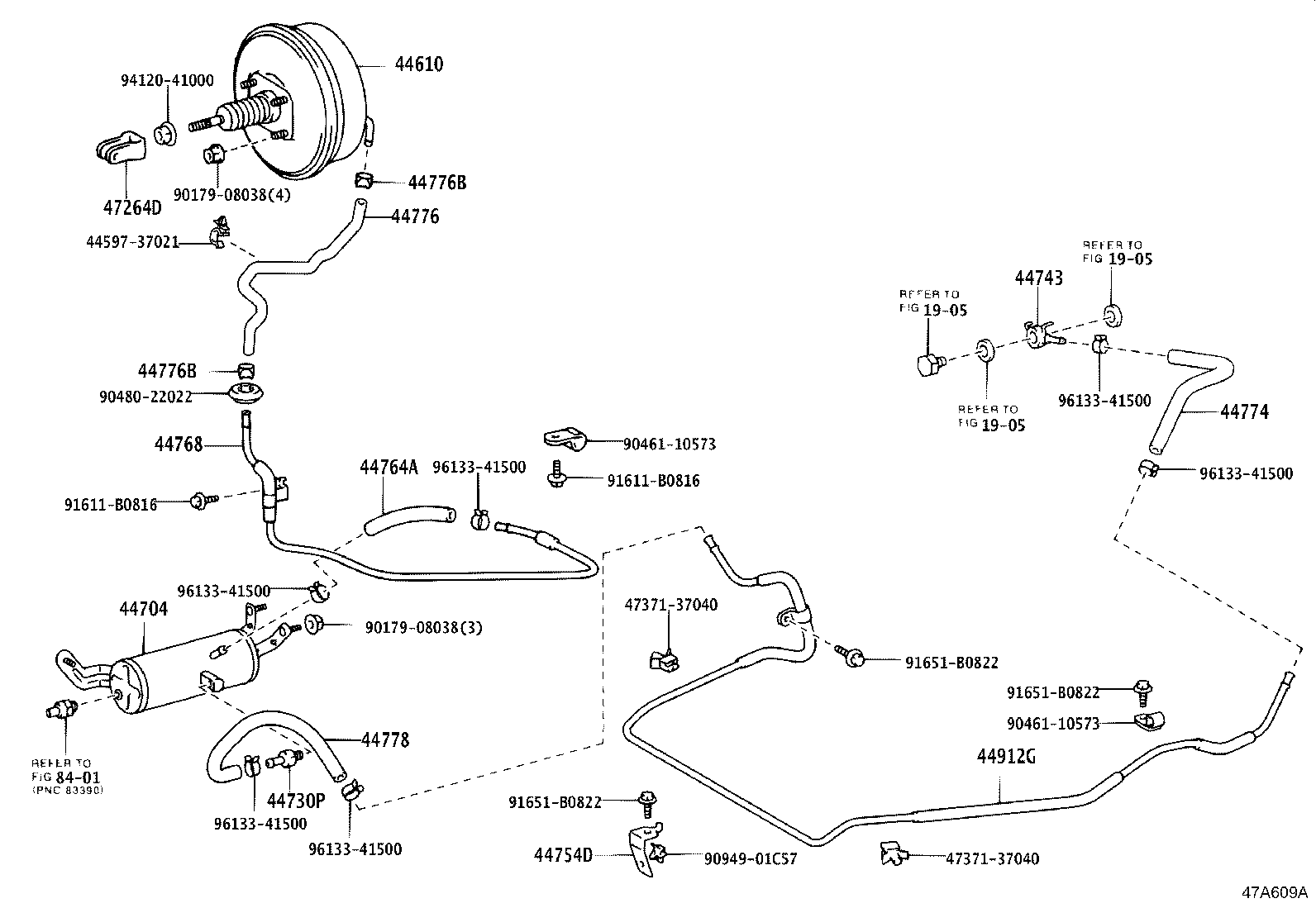

diagram 1905 1905 1905 4459737021 44610 44704 44730P 44743 44754D 44764A 44768 44774 44776 44776B 44776B 44778 44912G 47264D 4737137040 4737137040 8401 9017908038 9017908038 9046110573 9046110573 9048022022 9094901C57 91611B0816 91611B0816 91651B0822 91651B0822 91651B0822 9412041000 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-25340

TRY220,23#,281

 1
44610-25350

KDY221,231,241,271,281

 1
44610-25310

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL

 1
44764A - HOSE, BOOSTER VACUUM
90445-17141

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL

 1
44768 - TUBE, BOOSTER VACUUM
44768-25080

KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS)

 1
44768-25080

TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
44768-25080

KDY271,281,TRY220;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..T2,T4,VAN;KDY231,TRY230..(T2,T3,T4,TW1,TW4)..(CBU,IV3)

 1
44776 - HOSE, BRAKE BOOSTER
44776-37370

KDY221,231,241,271,281,TRY220,23#,281

 1
44776-25040

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90466-15003

KDY221,231,241,271,281,TRY220,23#,281

 2
44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90466-15003

KDY221,231,241,271,281,TRY220,23#,281

 2
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-25020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
47264-42010

KDY221,231,241,271,281,TRY220,23#,281

 1
Common parts
44597-37021
47371-37040
90179-08038
90461-10573
90480-22022
90949-01C57
91611-B0816
91651-B0822
94120-41000
96133-41500
Linked diagrams
1905
8401
