KDY231-PBMBY (2007)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(0709- )
ｳﾝﾃﾝｾｷ,ﾅｼ(ｼｰﾄﾊﾞｯｸｻｽﾍﾟﾝｼｮﾝ),E-PKG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37600B1 |
KDY221,231,271,281,TRY220,23#,281..CBU,IV3 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-37810B2 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71071-37760B1 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-37080B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71027-37070B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71027-37160B2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71027-37110B1 |
KDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37080 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-37021 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-37051 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ｼ-ﾄﾊﾞﾂｸ ｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-25060 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ｼ-ﾄﾊﾞﾂｸ ｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-37021B0 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) E ﾊﾟﾂｹ-ｼﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37022B0 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) E ﾊﾟﾂｹ-ｼﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37022B1 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ｼ-ﾄﾊﾞﾂｸ ｻｽﾍﾟﾝｼﾖﾝ),GRAY,TRIM1# |
1 | ||
| 71811-37011B1 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 72525-37010B1 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 GRAY,TRIM1# |
1 | ||
| 72525-37020B1 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ｼ-ﾄﾊﾞﾂｸ ｻｽﾍﾟﾝｼﾖﾝ),GRAY,TRIM1# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 72137-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 72137-37010B1 |
KDY221..T3..TS;KDY231..TW2..TB;KDY231..ST..IV6;KDY221..T2,T4,TW1;KDY241,271,281,TRY231,281;KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-08149 | ||||
| 90179-11010 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 7152 | ||||
ILLUST NO. 1 OF 3(0709- )
ｳﾝﾃﾝｾｷ,ｱﾘ(ｼｰﾄﾊﾞｯｸｻｽﾍﾟﾝｼｮﾝ)E-PKGｲｶﾞｲ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37600B1 |
KDY221,231,271,281,TRY220,23#,281..CBU,IV3 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-37810B2 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71071-37760B1 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-37080B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71027-37070B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71027-37160B2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71027-37110B1 |
KDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37080 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-37021 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-37051 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ｼ-ﾄﾊﾞﾂｸ ｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-25060 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ｼ-ﾄﾊﾞﾂｸ ｻｽﾍﾟﾝｼﾖﾝ) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-37021B0 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) E ﾊﾟﾂｹ-ｼﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37022B0 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) E ﾊﾟﾂｹ-ｼﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37011B0 |
KDY221,231,241,271,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-37022B1 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ｼ-ﾄﾊﾞﾂｸ ｻｽﾍﾟﾝｼﾖﾝ),GRAY,TRIM1# |
1 | ||
| 71811-37011B1 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37020 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1# |
1 | ||
| 72525-37010B1 |
KDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 GRAY,TRIM1# |
1 | ||
| 72525-37020B1 |
KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3) ﾅｼ(ｼ-ﾄﾊﾞﾂｸ ｻｽﾍﾟﾝｼﾖﾝ),GRAY,TRIM1# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 72137-37010B0 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 DK.CHARCOAL,TRIM1# |
1 | ||
| 72137-37010B1 |
KDY221..T3..TS;KDY231..TW2..TB;KDY231..ST..IV6;KDY221..T2,T4,TW1;KDY241,271,281,TRY231,281;KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10111 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-08149 | ||||
| 90179-11010 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 7152 | ||||

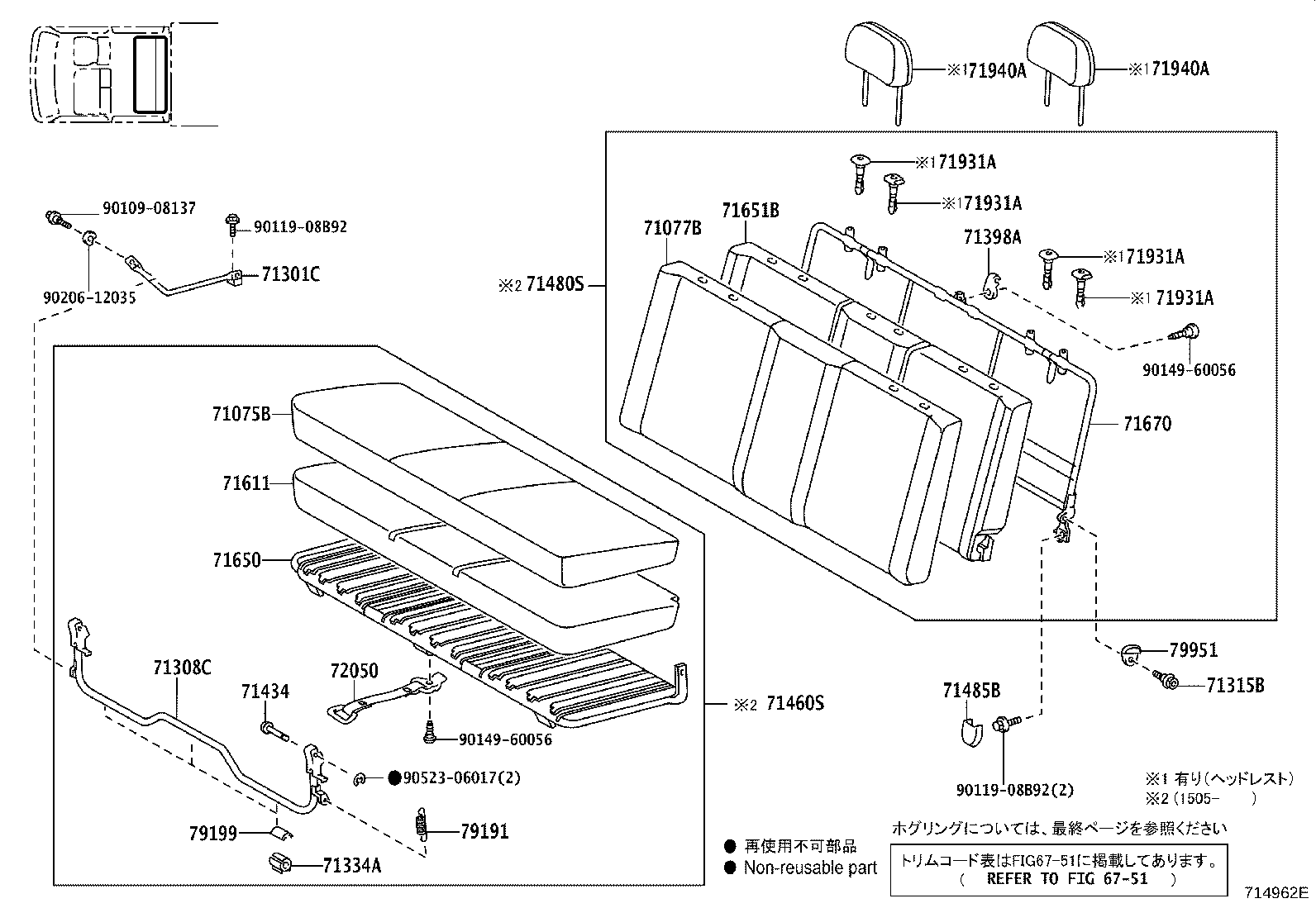

ILLUST NO. 3 OF 3(0709- )TW1,TW2,TW3,TW4
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-37340B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71075-37330B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71075-37360B0 |
KDY231,TRY230..TB..125T;KDY221,231,271,281,TRY220,230..TW1,TW3 ｼ-ﾄ = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71075-37350B0 |
KDY231,TRY230..TB..125T;KDY221,231,271,281,TRY220,230..TW1,TW3 ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-37390B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104 & ﾅｼ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71077-37420B0 |
KDY231,TRY230..TB..125T;KDY221,231,271,281,TRY220,230..TW1,TW3 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM1# |
1 | ||
| 71077-37350B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ﾅｼ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),MD. CHARCOAL,TRIM1# |
1 | ||
| 71077-37360B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),MD. CHARCOAL,TRIM1# |
1 | ||
| 71077-37400B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71077-37440B0 |
KDY231,TRY230..TB..125T;KDY221,231,271,281,TRY220,230..TW1,TW3 ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM1# |
1 | ||
| 71301C - LINK SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71308C - LEG SUB-ASSY, REAR SEAT, FRONT | ||||
| 71308-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71315B - PIN, REAR SEAT HINGE | ||||
| 90109-10175 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 79189-95J00 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-95702B3 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 GRAY,TRIM1# |
1 | ||
| 71398-95702B1 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 71434 - PIN, REAR SEAT CUSHION LEG, REAR | ||||
| 79939-26040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-37010B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 71485-37011B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 71485-37012B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 71485-37012B1 |
KDY231,TRY230..TB..125T;KDY221,231,271,281,TRY220,230..TW1,TW3 GRAY,TRIM1# |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-25010 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28030B8 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-28030P2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030P2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-28030B8 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28030B8 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-28030P2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030P2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-28030B8 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28030B8 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-28030P2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030P2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-28030B8 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28030B8 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-28030P2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030P2 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-28030B8 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-37190B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 71910-95J34B2 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 71940-25011B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.GRAY,TRIM1# |
2 | ||
| 71940-25011B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-37190B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 71910-95J34B2 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 71940-25011B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.GRAY,TRIM1# |
2 | ||
| 71940-25011B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
2 | ||
| 72050 - BELT ASSY, REAR SEAT HOOK | ||||
| 72050-37020B0 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 79191 - SPRING, NO.1 SEAT CUSHION, NO.1 | ||||
| 90506-23053 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 79951 - COVER, NO.1 SEAT CUSHION | ||||
| 79951-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| Common parts | ||||
| 90109-08137 | ||||
| 90119-08B92 | ||||
| 90149-60056 | ||||
| 90206-12035 | ||||
| 90523-06017 | ||||
| Linked diagrams | ||||
| 6751 | ||||
ILLUST NO. 2 OF 3(0709- )
ｼﾞｮｼｭｾｷ(ﾌﾀﾘｶﾞｹ),ｼｰﾄｸｯｼｮﾝ,E-PKG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-25390B0 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072-25400B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-25410B0 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072-25391B0 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072-25420B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-25401B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-37B20B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-37C41B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71072-37C31B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-25390B0 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072-25400B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-25410B0 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072-25391B0 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71072-25420B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-25401B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-37B20B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71072-37C41B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,GRAY,TRIM1# |
1 | ||
| 71072-37C31B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-37030 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-37160 |
KDY231,281..IV6;KDY221,231,271,281..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｲﾂﾀｲ ﾀｲﾌﾟ & ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71502-25070 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),取付け:ﾅｯﾄ締めﾀｲﾌﾟ |
1 | ||
| 71052-25050 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞｮｼｭｾｷ ｼｰﾄﾍﾞﾙﾄ ｳｫｰﾆﾝｸﾞ & ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),取付け:ﾅｯﾄ締めﾀｲﾌﾟ |
1 | ||
| 71502-25071 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),取付け:ﾅｯﾄ締めﾀｲﾌﾟ |
1 | ||
| 71052-25051 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞｮｼｭｾｷ ｼｰﾄﾍﾞﾙﾄ ｳｫｰﾆﾝｸﾞ & ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),取付け:ﾅｯﾄ締めﾀｲﾌﾟ |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-37160 |
KDY231,281..IV6;KDY221,231,271,281..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞﾖｼﾕｾｷ ｲﾂﾀｲ ﾀｲﾌﾟ & ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71502-25070 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),取付け:ﾅｯﾄ締めﾀｲﾌﾟ |
1 | ||
| 71052-25050 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞｮｼｭｾｷ ｼｰﾄﾍﾞﾙﾄ ｳｫｰﾆﾝｸﾞ & ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),取付け:ﾅｯﾄ締めﾀｲﾌﾟ |
1 | ||
| 71502-25071 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),取付け:ﾅｯﾄ締めﾀｲﾌﾟ |
1 | ||
| 71052-25051 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞｮｼｭｾｷ ｼｰﾄﾍﾞﾙﾄ ｳｫｰﾆﾝｸﾞ & ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),取付け:ﾅｯﾄ締めﾀｲﾌﾟ |
1 | ||
| Common parts | ||||
| 90119-08C25 | ||||
| 90179-08039 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6751 | ||||
ILLUST NO. 2 OF 3(0709- )
ｼﾞｮｼｭｾｷ(ﾌﾀﾘｶﾞｹ),ｼｰﾄﾊﾞｯｸ(ｲｯﾀｲ),E-PKG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-25490B0 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 70169-37170B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-25500B0 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-37A30B1 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD. CHARCOAL,TRIM1# |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-37090 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71552-25120 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71552-25100 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-25060 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ) |
1 | ||
| 71630-25030 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷ ｲﾂﾀｲ ﾀｲﾌﾟ) |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
2 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-89101 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
2 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90119-08C25 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 6751 | ||||
ILLUST NO. 2 OF 3(0709- )KDY221,231,271,281,TRY220,23#,281
*PAS(ﾌﾀﾘ),ｼｰﾄﾊﾞｯｸ(ｾﾊﾟﾚｰﾄ),E-PKGｲｶﾞｲ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-37541B0 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71095-37551B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-37541B0 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 71095-37551B0 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-25490B0 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 70169-37170B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-25500B0 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-37A30B1 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD. CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-25490B0 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 70169-37170B1 |
KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-25500B0 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN E ﾊﾟﾂｹ-ｼﾞ & ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-37A30B1 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD. CHARCOAL,TRIM1# |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-25040 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71365-25041 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-25040 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71365-25041 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71380 - HINGE ASSY, CENTER SEAT, RH | ||||
| 71380-37010 |
KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-37010B0 |
KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 71395-37010B1 |
KDY231..TB..125T;KDY231,281..ST..IV6;KDY221,231,271,281..TW1,TW3 GRAY,TRIM1# |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71397-37010B0 |
KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 71397-37010B1 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 GRAY,TRIM1# |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-37090 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71552-25120 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71552-25100 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-37090 |
KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71552-25120 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 71552-25100 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-25060 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ) |
1 | ||
| 71630-25030 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷ ｲﾂﾀｲ ﾀｲﾌﾟ) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-25060 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ) |
1 | ||
| 71630-25030 |
KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷ ｲﾂﾀｲ ﾀｲﾌﾟ) |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
2 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-37020B0 |
KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-37021B0 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-37021B1 |
KDY231,TRY230..TB..125T;KDY231,281,TRY230..ST..IV6;KDY221,231,271,281,TRY220,230..TW1,TW3 GRAY,TRIM1# |
1 | ||
| 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-95J00B5 |
KDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4 GRAY,TRIM1# |
1 | ||
| 72213-95J00B2 |
KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-37010B0 |
KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1# |
1 | ||
| 72526-37010B1 |
KDY231..TB..125T;KDY231,281..ST..IV6;KDY221,231,271,281..TW1,TW3 GRAY,TRIM1# |
1 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90105-08298 | ||||
| 90119-08079 | ||||
| 90119-08C25 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-10109 | ||||
| 90183-04048 | ||||
| 90467-06044 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 6751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
