KDY230-TLPDY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

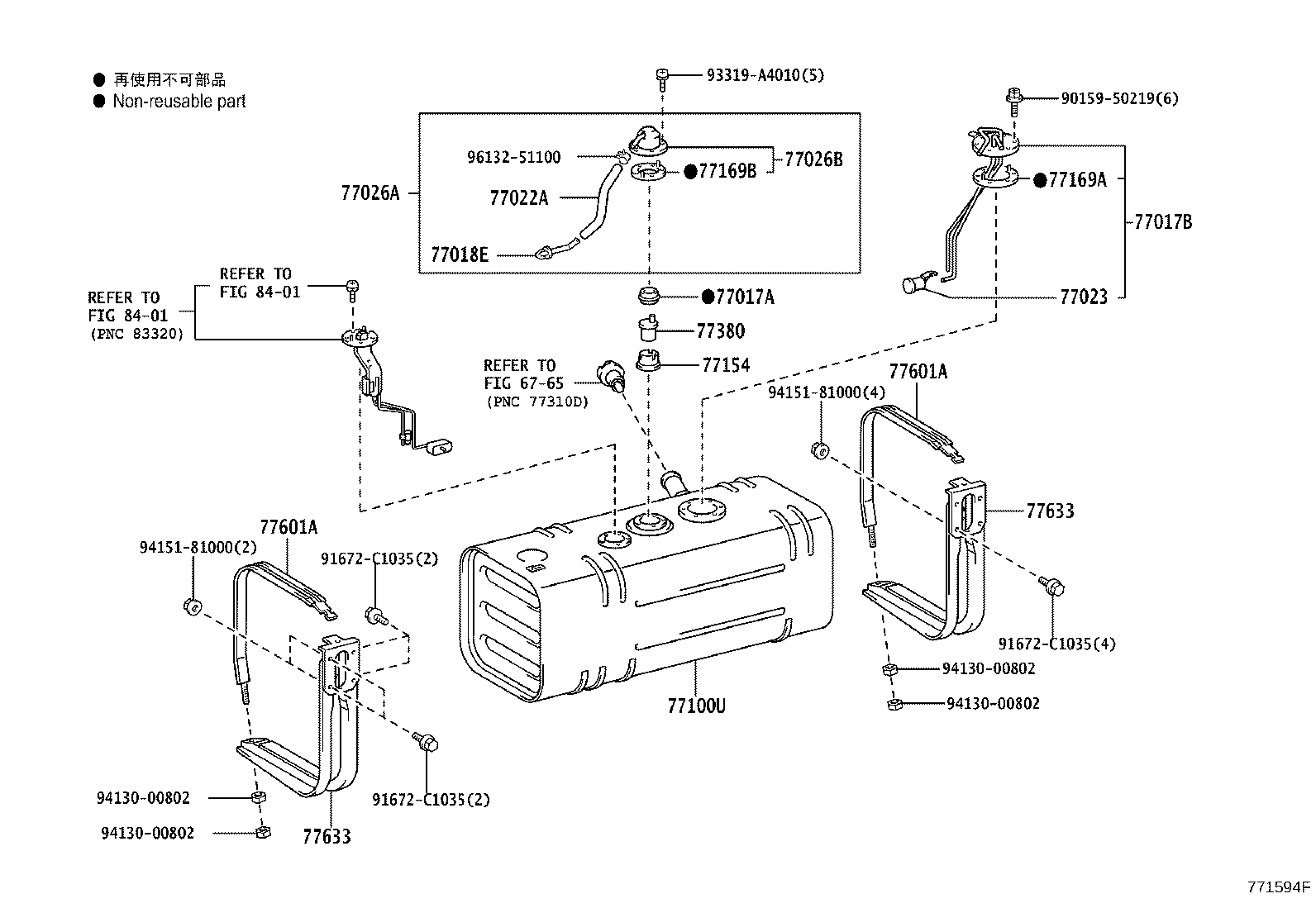

ILLUST NO. 1 OF 2(0408- )KDY22#,23#,27#,28#..CBU,IV3

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 6765 77017A 77017B 77018E 77022A 77023 77026A 77026B 77100U 77154 77169A 77169B 77380 77601A 77601A 77633 77633 8401 8401 9015950219 91672C1035 91672C1035 91672C1035 93319A4010 9413000802 9413000802 9413000802 9413000802 9415181000 9415181000 9613251100
Part # Description Qty Price
77017A - GASKET, FUEL TANK VENT
77178-44010

RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3)

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-25170

KDY22#,23#,27#,28#..CBU,IV3

 1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77244-25030

RZY230,TRY230..IV6;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030

RZY230..IV6;KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3)

*H,L=260

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-36010

KDY22#,23#,24#,27#,28#,290

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-25010

KDY22#,23#,27#,28#,LY220,230,270,280..(DCR,DSL)..(CBU,IV3)

 1
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010

KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3)

 1
77100U - TANK SUB-ASSY, FUEL
77001-25441

KDY22#,23#,27#,28#..CBU,IV3

830 X 304 X 304

 1
77001-25432

TRY220,230..CBU,IV3

830 X 304 X 304

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-32010

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
77169B - GASKET, FUEL SUCTION TUBE SET, NO.1
77169-14020

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(DCR,DSL,EFI)..(CBU,IV3)

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

RZY230,TRY230;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220..(DCR,DSL,EFI)..(CBU,IV3)

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-25120

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-25120

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

 2
77633 - STAY, FUEL TANK
77501-25160

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

 2
77633 - STAY, FUEL TANK
77501-25160

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..DCR,DSL,EFI

 2
Common parts
90159-50219
91672-C1035
93319-A4010
94130-00802
94151-81000
96132-51100
Linked diagrams
6765
8401

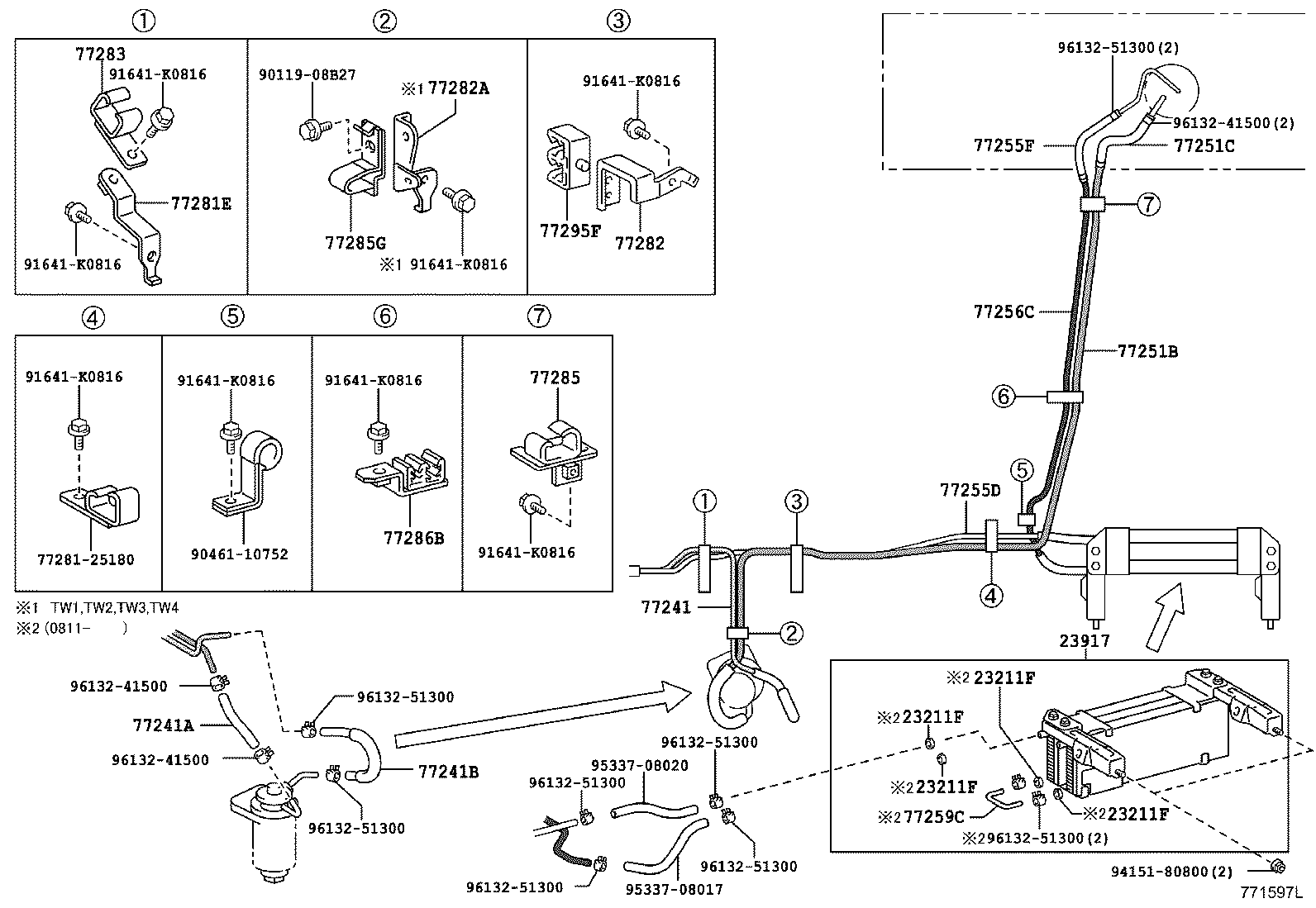

ILLUST NO. 2 OF 2(0408- )KDY22#,23#,27#,28#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 23211F 23211F 23211F 23211F 23917 77241 77241A 77241B 77251B 77251C 77255D 77255F 77256C 77259C 7728125180 77281E 77282 77282A 77283 77285 77285G 77286B 77295F 9011908B27 9046110752 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 9415180800 9533708017 9533708020 9613241500 9613241500 9613241500 9613251300 9613251300 9613251300 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-25430

KDY22#,23#,27#,28#

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95337-08020

KDY24#,290,LY220,230,240,270,280,290..DCR,DSL

*H,L=160,内径=7.6

 1
77256C - TUBE, FUEL RETURN, NO.2
77256-25040

KDY22#,23#,27#,28#

 1
77281E - BRACKET, FUEL MAIN TUBE, NO.1
77281-25070

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77281-25080

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
77283 - BRACKET, FUEL TUBE
77281-25160

KDY22#,23#,24#,27#,28#,290

 1
77285 - BRACKET, FUEL TUBE
77281-25020

KDY22#,23#,27#,28#

 1
77281-25010

RZY220,230,TRY220,230

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-25030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..DCR,DSL

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-25010

KDY22#,23#,24#,27#,28#,290

 1
77286-25020

RZY220,230,TRY220,230

 1
77295F - GROMMET, FUEL HOSE
77295-25060

RZY220,230,TRY220,230

 1
77295-25050

KDY22#,23#,24#,27#,28#,290

 1
Common parts
77281-25180
90119-08B27
90461-10752
91641-K0816
94151-80800
95337-08017
95337-08020
96132-41500
96132-51300
