KDY230-TLPDY (2004)
Toyota Dyna/Toyoace
(0107-1004)T2..TS..CBU
ｽﾁ-ﾙﾃﾞｯｷ

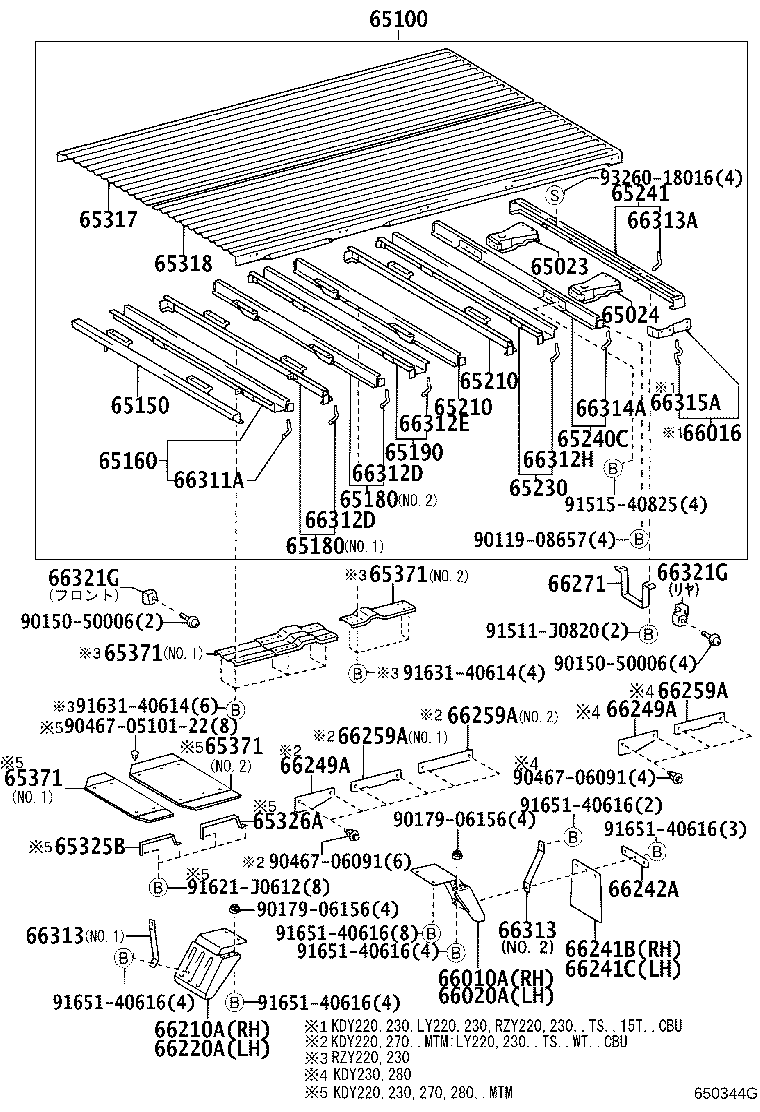

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65023 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH | ||||
| 65023-25030 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU |
1 | ||
| 65024 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH | ||||
| 65024-25030 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-2E280 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..ST..CBU *** |
1 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65150-25360 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-25330 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65170-25210 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..ST..CBU NO.1 |
1 | ||
| 65180-25150 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..ST..CBU NO.2 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65170-25210 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..ST..CBU NO.1 |
1 | ||
| 65180-25150 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..ST..CBU NO.2 |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65230-25100 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-25100 |
KDY231..TS..MTM..125T..WT;KDY22#,23#,28#..(T2,TW2)..TS..ATM..CBU;LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..(125T,12T)..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65240-25050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 65317 - PANEL, FLOOR SIDE, RH | ||||
| 65317-25050 |
KDY230,280..T2..TS..CBU |
1 | ||
| 65318 - PANEL, FLOOR SIDE, LH | ||||
| 65318-95040 |
KDY230,280..(T2,T3)..TS..CBU |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25070 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25060 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-95019 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-95021 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95A00 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-95A01 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95014 |
KDY270..TS..125T..CBU;KDY220,230,280..T2..TS..CBU |
2 | ||
| 66311-95014 |
KDY221,271..T3..TS..MTM..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95014 |
KDY220,230,270,280..T2..TS..CBU |
4 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95014 |
KDY220,230,270,280..T2..TS..CBU |
4 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY220..TS..WT..CBU;KDY220..T2..ATM..CBU;KDY230,280..T2..TS..CBU |
2 | ||
| 66311-95014 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66312H - HOOK, ROPE | ||||
| 66312-95013 |
KDY23#,28#,LY230,280,RZY230,TRY230..T2..TS..CBU 右側 |
1 | ||
| 66313-95013 |
KDY23#,28#,LY230,280,RZY230,TRY230..T2..TS..CBU 左側 |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25070 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾘﾔ |
2 | ||
| 66235-25050 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25070 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾘﾔ |
2 | ||
| 66235-25050 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313A - HOOK, ROPE, NO.3 | ||||
| 66311-95707 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 右側 |
1 | ||
| 66312-95012 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 左側 |
1 | ||
| 66314A - HOOK, ROPE, NO.4 | ||||
| 66312-95A01 |
KDY231..TS..MTM..125T..WT;TRY220,230..(T2,TW2)..TS..125T..CBU;KDY22#,23#,28#..(T2,TW2)..TS..ATM..CBU;LY220,230,270,280,RZY220,230..T2..TS..ST..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90150-50006 | ||||
| 90179-06156 | ||||
| 90467-0510122 | ||||
| 90467-06091 | ||||
| 91511-J0820 | ||||
| 91515-40825 | ||||
| 91621-J0612 | ||||
| 91631-40614 | ||||
| 91651-40616 | ||||
| 93260-18016 | ||||
