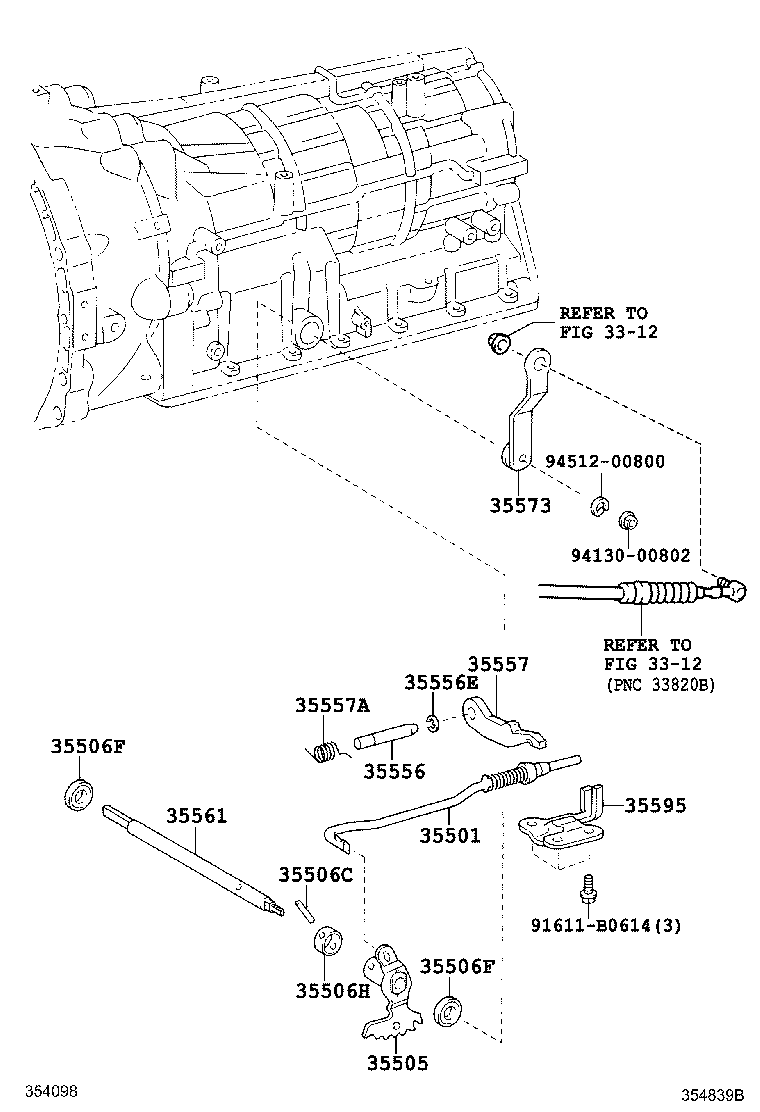

KDY230-TLPDY (2004)
Toyota Dyna/Toyoace
(0408- )KDY22#,23#,28#..ATM..125T,1T..ST
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-26020 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35501-60010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22020 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35505-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11003 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 90311-12002 |
LY230,280,TRY230..TB..ATM;KDY22#,23#,28#,RZY231,281,TRY231,281..ATM |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11003 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 90311-12002 |
LY230,280,TRY230..TB..ATM;KDY22#,23#,28#,RZY231,281,TRY231,281..ATM |
2 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-26010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35556-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-60020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35557-26040 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21001 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 90508-21002 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-30060 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35561-35010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH | ||||
| 35573-25060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35573-25020 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-26010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35595-60010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3312 | ||||
