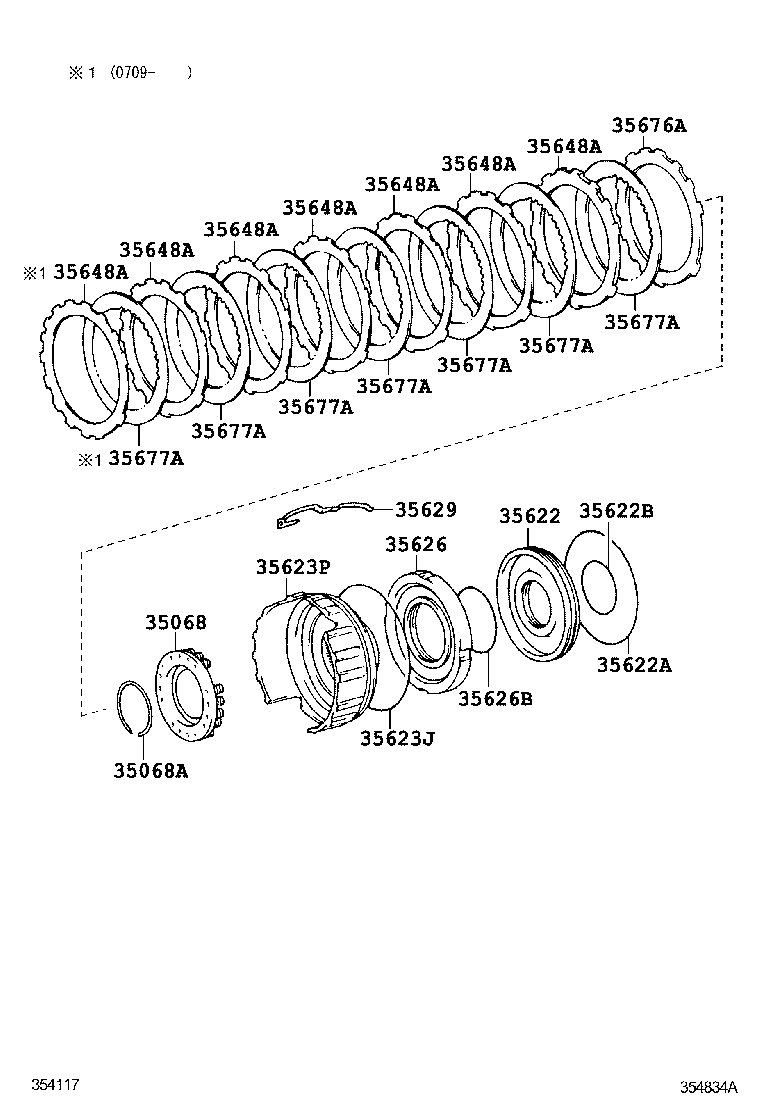

KDY230-TLPDY (2004)
Toyota Dyna/Toyoace
(0408- )KDY22#,23#,28#..ATM..125T,1T..ST
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-50010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-30010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35622-22010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99084 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35622B - RING (FOR BRAKE PISTON INNER) | ||||
| 90301-56007 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99110 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-30012 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-22010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35626-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-67005 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22020 |
KDY22#,23#,281..ATM..(125T,1T)..ST |
1 | ||
| 35629-22010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-50060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=4.0 |
1 | ||
| 35676-30100 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=5.2 |
1 | ||
| 35676-30110 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=5.4 |
1 | ||
| 35676-50020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=4.8 |
1 | ||
| 35676-50040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=4.4 |
1 | ||
| 35676-50010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=5.0 |
1 | ||
| 35676-50030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=4.6 |
1 | ||
| 35676-50050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=4.2 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
KDY220,230,280..TS..ATM..ST |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
KDY220,230,280..TS..ATM..ST |
6 | ||
