KDY230-TLPDY (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDY22#,23#..ATM..125T..ST

Click highlighted areas on diagram

A340E

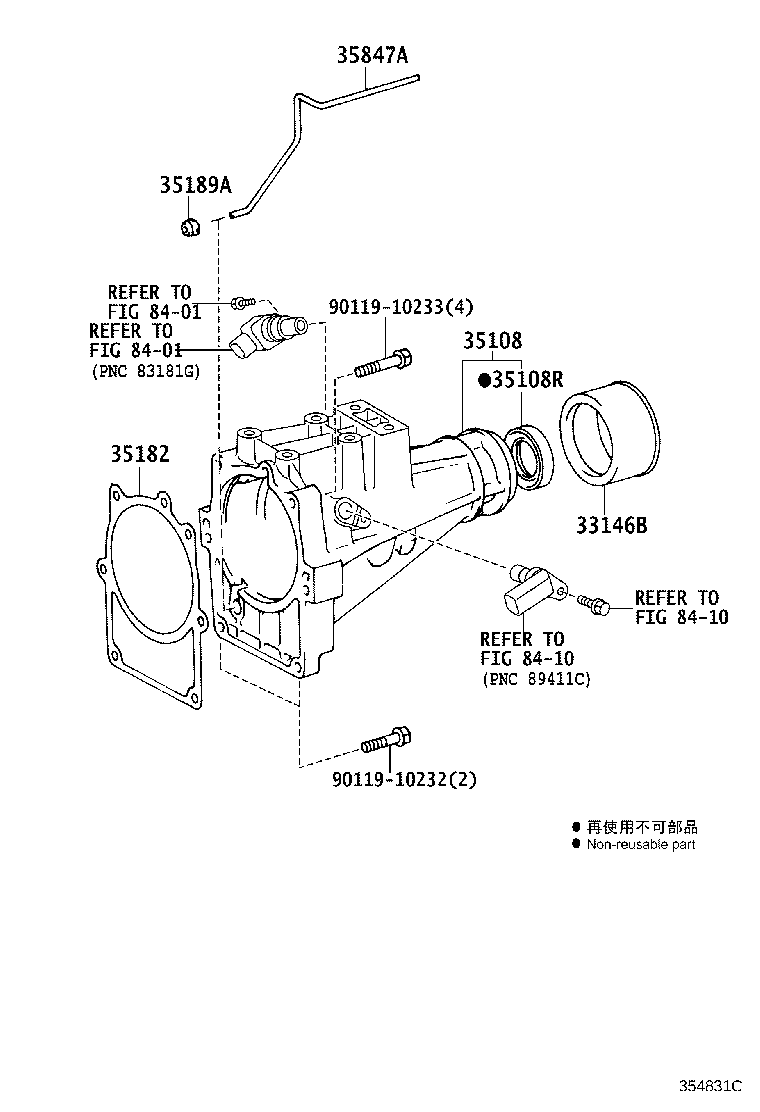

diagram 33146B 35108 35108R 35182 35189A 35847A 8401 8401 8410 8410 9011910232 9011910233
Part # Description Qty Price
33146B - DEFLECTOR, EXTENSION HOUSING DUST
33146-30020

KDY22#,23#,LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-26080

KDY22#,23#..ATM..125T..ST

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-38032

LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-28010

KDY22#,23#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE
35189-30010

KDY22#,23#,LY220,230,RZY220,230,TRY220,230..ATM..125T..ST

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-30020

KDY22#,23#,LY220,230,RZY220,230..ATM..125T..ST

 1
Common parts
90119-10232
90119-10233
Linked diagrams
8401
8410
