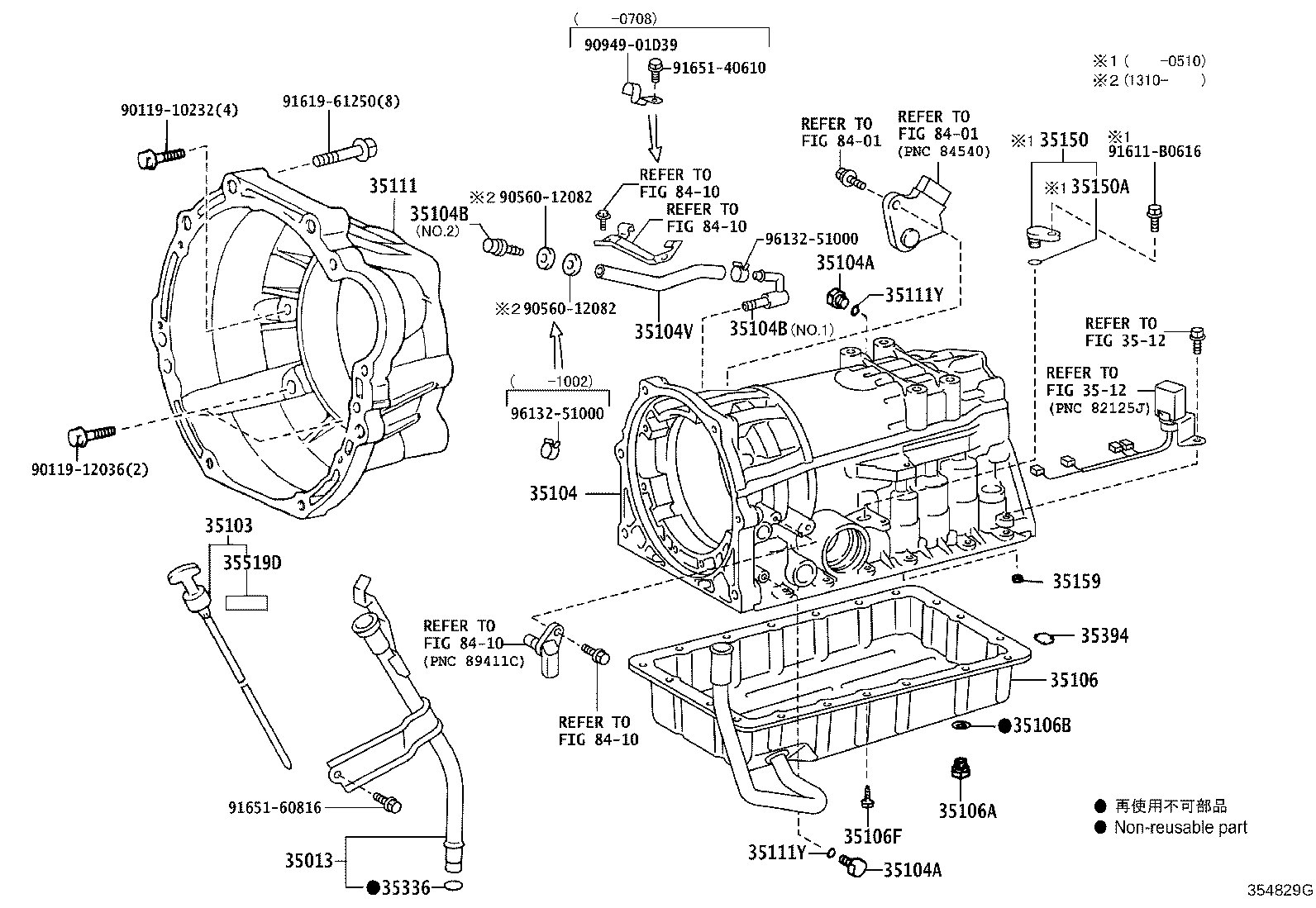

KDY230-TLPDY (2004)
Toyota Dyna/Toyoace
(0408- )KDY22#,23#,28#..ATM..125T,1T..ST
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-25130 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-25130 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26061 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 35104-26060 |
KDY220,230,280..TS..ATM |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KDY22#,23#,28#,LY220,230,280,RZY220,230..ATM..(125T,1T)..ST NO.1 |
1 | ||
| 90930-03168 |
KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,LY230,280,RZY231,281,TRY231,281..ATM..(DCR,LPG) NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KDY22#,23#,28#,LY220,230,280,RZY220,230..ATM..(125T,1T)..ST NO.1 |
1 | ||
| 90930-03168 |
KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,LY230,280,RZY231,281,TRY231,281..ATM..(DCR,LPG) NO.2 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
LY230,280..TB..ATM..DSL;KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-26090 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
KDY22#,23#,28#,LY220,230,280,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
19 | ||
| 90119-06117 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
14 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-26040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-30010 |
KDY220,230,280..TS..ATM |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09012 |
KDY220,230,280..TS..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY220,23#,281..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
3 | ||
| 35394-30011 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90560-12082 | ||||
| 90949-01D39 | ||||
| 91611-B0616 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||
| 91651-60816 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8401 | ||||
| 8410 | ||||
(0408- )KDY230,280..TB..ATM ; (0605- )KDY230..TS..ATM..WT ; (0709- )ATM..1
A442E,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-25130 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-25130 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26061 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 35104-26060 |
KDY220,230,280..TS..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KDY22#,23#,28#,LY220,230,280,RZY220,230..ATM..(125T,1T)..ST NO.1 |
1 | ||
| 90930-03168 |
KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,LY230,280,RZY231,281,TRY231,281..ATM..(DCR,LPG) NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KDY22#,23#,28#,LY220,230,280,RZY220,230..ATM..(125T,1T)..ST NO.1 |
1 | ||
| 90930-03168 |
KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,LY230,280,RZY231,281,TRY231,281..ATM..(DCR,LPG) NO.2 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
LY230,280..TB..ATM..DSL;KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-26090 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
KDY22#,23#,28#,LY220,230,280,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-26040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST |
2 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY220,23#,281..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
3 | ||
| 35394-30011 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| Common parts | ||||
| 90119-12294 | ||||
| 90119-12295 | ||||
| 90949-01826 | ||||
| 91611-B0616 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
| 91651-60816 | ||||
| 96132-51000 | ||||
