KDY230-TLPDY (2004)
Toyota Dyna/Toyoace
(0408- )KDY22#,23#,28#..ATM..125T,1T..ST
A340E,A340F

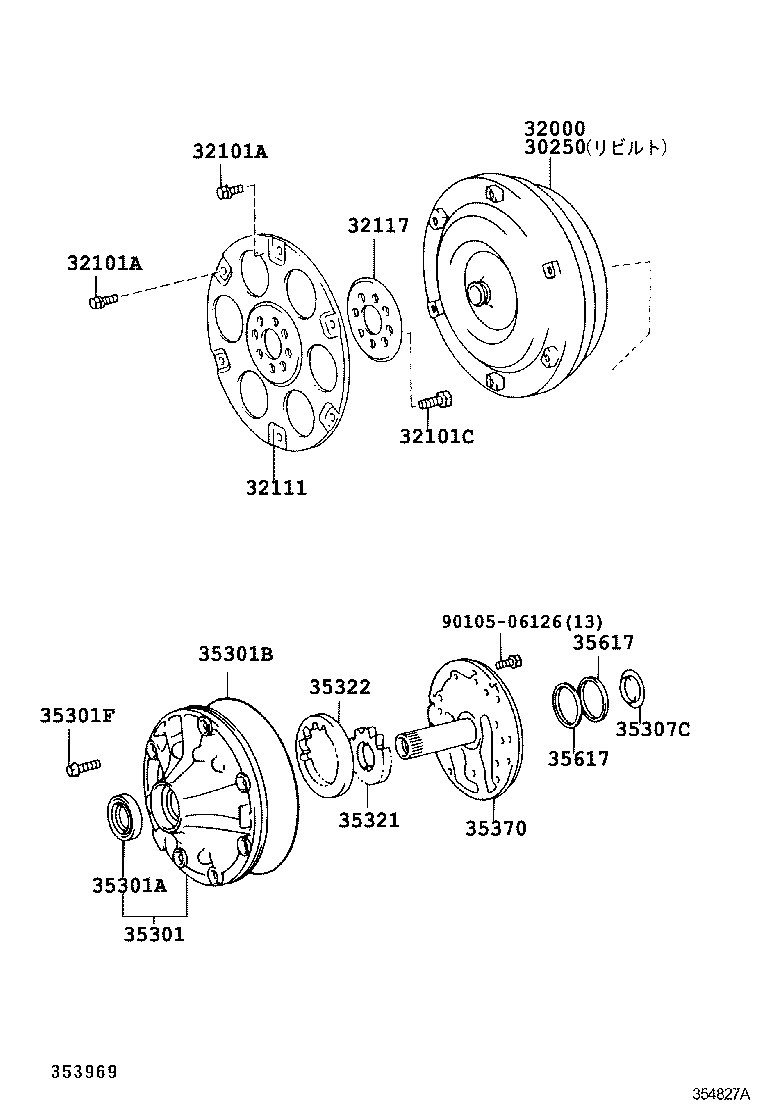

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-71010 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-71010 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09027 |
TRY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 90119-09026 |
TRY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09026 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09027 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09027 |
TRY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 90119-09026 |
TRY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09026 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09027 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-13010 |
KDY22#,23#,28#..ATM *13−1.5PX43.5−23.5 |
8 | ||
| 32111 - PLATE, PUMP IMPELLER DRIVE | ||||
| 32111-60050 |
KDY220,230,280..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-60050 |
KDY22#,23#,28#..ATM |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-50020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38087 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 90311-38064 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 90301-99033 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08137 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
7 | ||
| 90105-08091 |
KDY22#,23#,28#..ATM..(125T,1T)..ST *8−1.25PX35−35 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-30340 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.7 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-22020 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.244−17.235 |
1 | ||
| 35321-22060 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.285−17.276 |
1 | ||
| 35321-22050 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.275−17.266 |
1 | ||
| 35321-30040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.700−11.709 |
1 | ||
| 35321-30060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.721−11.730 |
1 | ||
| 35321-22030 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.254−17.245 |
1 | ||
| 35321-30070 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.731−11.740 |
1 | ||
| 35321-22040 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.265−17.255 |
1 | ||
| 35321-30030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.690−11.699 |
1 | ||
| 35321-30050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.710−11.720 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-22050 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.275−17.266 |
1 | ||
| 35322-22020 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.244−17.235 |
1 | ||
| 35322-22030 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.254−17.245 |
1 | ||
| 35322-30050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.721−11.730 |
1 | ||
| 35322-30040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.710−11.720 |
1 | ||
| 35322-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.690−11.699 |
1 | ||
| 35322-30060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.731−11.740 |
1 | ||
| 35322-22040 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.265−17.255 |
1 | ||
| 35322-30030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.700−11.709 |
1 | ||
| 35322-22060 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.285−17.276 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-30060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 35617-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 35617-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| Common parts | ||||
| 90105-06126 | ||||
(0408- )KDY230,280..TB..ATM ; (0605- )KDY230..TS..ATM..WT ; (0709- )ATM..1
A442E,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-71010 |
KDY220,230,280..TS..ATM..ST |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09027 |
TRY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 90119-09026 |
TRY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09026 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09027 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09027 |
TRY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 90119-09026 |
TRY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09026 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09027 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-13010 |
KDY22#,23#,28#..ATM *13−1.5PX43.5−23.5 |
8 | ||
| 32111 - PLATE, PUMP IMPELLER DRIVE | ||||
| 32111-60050 |
KDY220,230,280..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-60050 |
KDY22#,23#,28#..ATM |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38087 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 90311-38064 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
1 | ||
| 90301-99033 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08137 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
7 | ||
| 90105-08091 |
KDY22#,23#,28#..ATM..(125T,1T)..ST *8−1.25PX35−35 |
7 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-22020 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.244−17.235 |
1 | ||
| 35321-22060 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.285−17.276 |
1 | ||
| 35321-22050 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.275−17.266 |
1 | ||
| 35321-30040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.700−11.709 |
1 | ||
| 35321-30060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.721−11.730 |
1 | ||
| 35321-22030 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.254−17.245 |
1 | ||
| 35321-30070 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.731−11.740 |
1 | ||
| 35321-22040 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.265−17.255 |
1 | ||
| 35321-30030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.690−11.699 |
1 | ||
| 35321-30050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.710−11.720 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-22050 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.275−17.266 |
1 | ||
| 35322-22020 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.244−17.235 |
1 | ||
| 35322-22030 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.254−17.245 |
1 | ||
| 35322-30050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.721−11.730 |
1 | ||
| 35322-30040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.710−11.720 |
1 | ||
| 35322-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.690−11.699 |
1 | ||
| 35322-30060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.731−11.740 |
1 | ||
| 35322-22040 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.265−17.255 |
1 | ||
| 35322-30030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=11.700−11.709 |
1 | ||
| 35322-22060 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM 厚さ=17.285−17.276 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 35617-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
LY220,230,280,RZY220,230,TRY220,230..TS..ATM |
2 | ||
| 35617-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| Common parts | ||||
| 91511-J0820 | ||||
