KDY230-TLMDY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDY22#,23#..MTM..125T,1T..ST

Click highlighted areas on diagram

R351

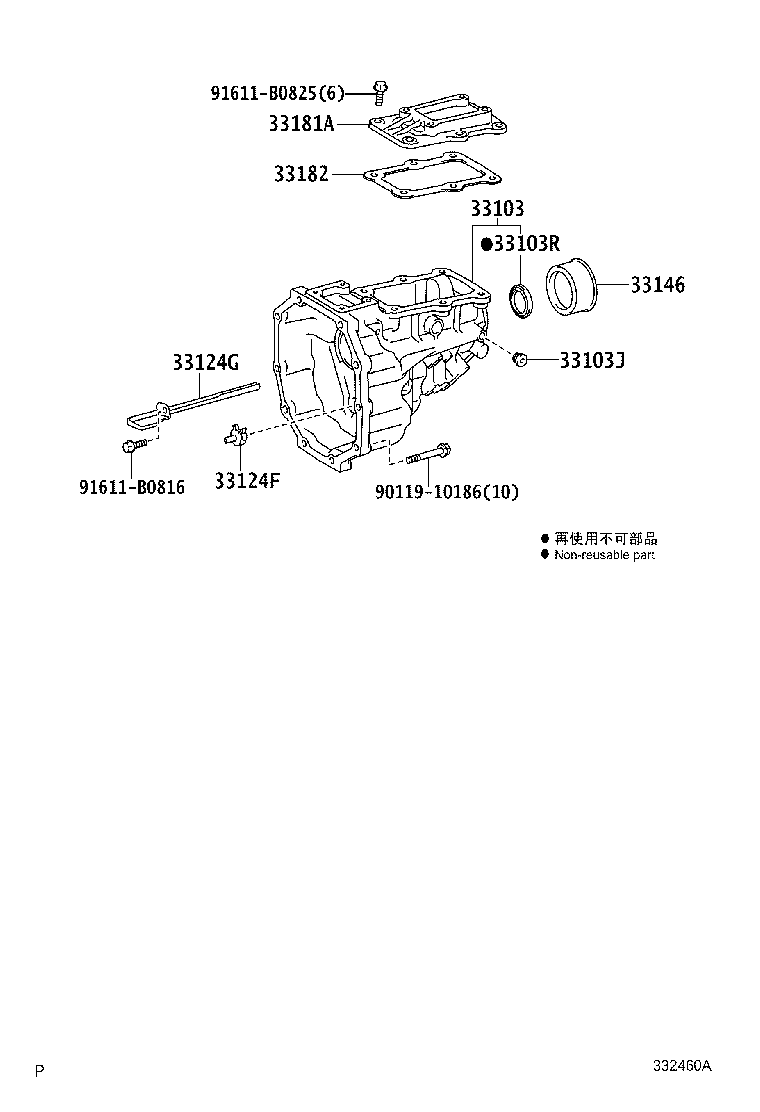

diagram 33103 33103J 33103R 33124F 33124G 33146 33181A 33182 9011910186 91611B0816 91611B0825
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-26070

KDY22#,23#..MTM..(125T,1T)..ST

 1
33103J - PLUG, TIGHT(FOR EXTENSION HOUSING)
90341-10065

KDY22#,23#..MTM..(125T,1T)..ST

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-40001

KDY220,230..T2..MTM..125T

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35100

LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-35090

KDY22#,23#..MTM..(125T,1T)..ST

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

KDY22#,23#..MTM..(125T,1T)..ST

 1
33181A - COVER, EXTENSION HOUSING(MTM)
33181-26030

KDY22#,23#..MTM..(125T,1T)..ST

 1
Common parts
90119-10186
91611-B0816
91611-B0825
