Toyota Dyna/toyoace KDY230 INJECTION PUMP ASSEMBLY

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
KDY230-TLMDY3 (2004)
2202 - INJECTION PUMP ASSEMBLY

KDY230-TLMDY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007

Engine 2KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0610-0708)2KDFTV

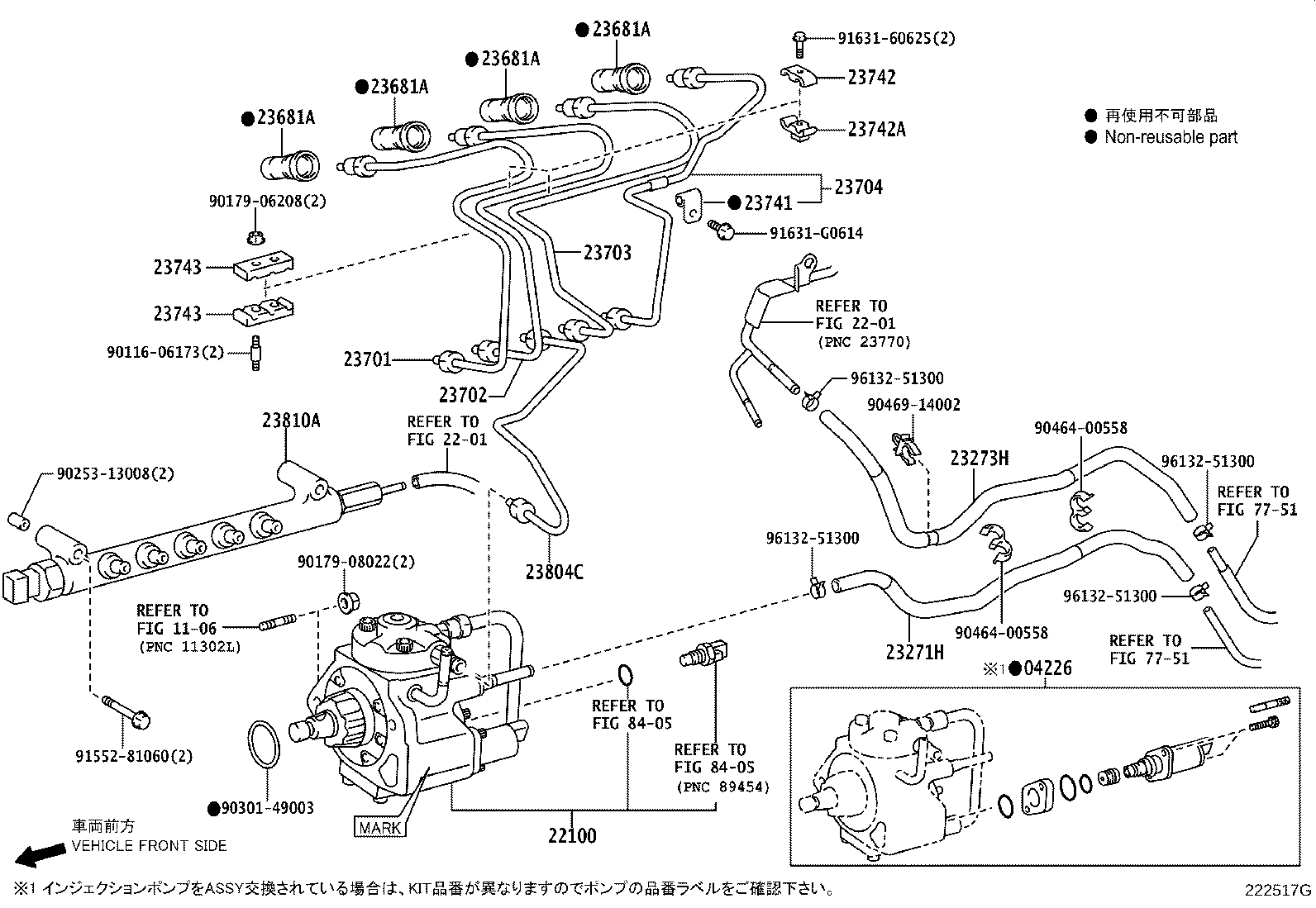

Click highlighted areas on diagram

Part #	Description	Period	Qty
04226 - VALVE KIT, SUCTION CONTROL
04226-30010	2KDFTV..KDY220,230,240,270,280,290 *342	08/2004 - 10/2006	1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30040	2KDFTV..KDY220,230,240,270,280,290 ﾏｰｸ=22100−30040	08/2004 - 10/2006	1
23271H - HOSE, FUEL, NO.1
23271-30160	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23273H - HOSE, FUEL, NO.2
23273-30100	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23681A - SEAL, NOZZLE HOLDER
23681-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	4
23681A - SEAL, NOZZLE HOLDER
23681-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	4
23681A - SEAL, NOZZLE HOLDER
23681-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	4
23681A - SEAL, NOZZLE HOLDER
23681-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-30040	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-30040	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-30040	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-39045	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	2
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	2
23804C - PIPE SUB-ASSY, FUEL INLET
23804-30040	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23810A - RAIL ASSY, COMMON
23810-0L020	2KDFTV..KDY220,230,240,270,280,290	10/2006 - 08/2007	1
23810-0L010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 10/2006	1
Common parts
90116-06173
90179-06208
90179-08022
90253-13008
90301-49003
90464-00558
90469-14002
91552-81060
91631-60625
91631-G0614
96132-51300
Linked diagrams
1106
2201
7751
8405

(0408-0610)2KDFTV

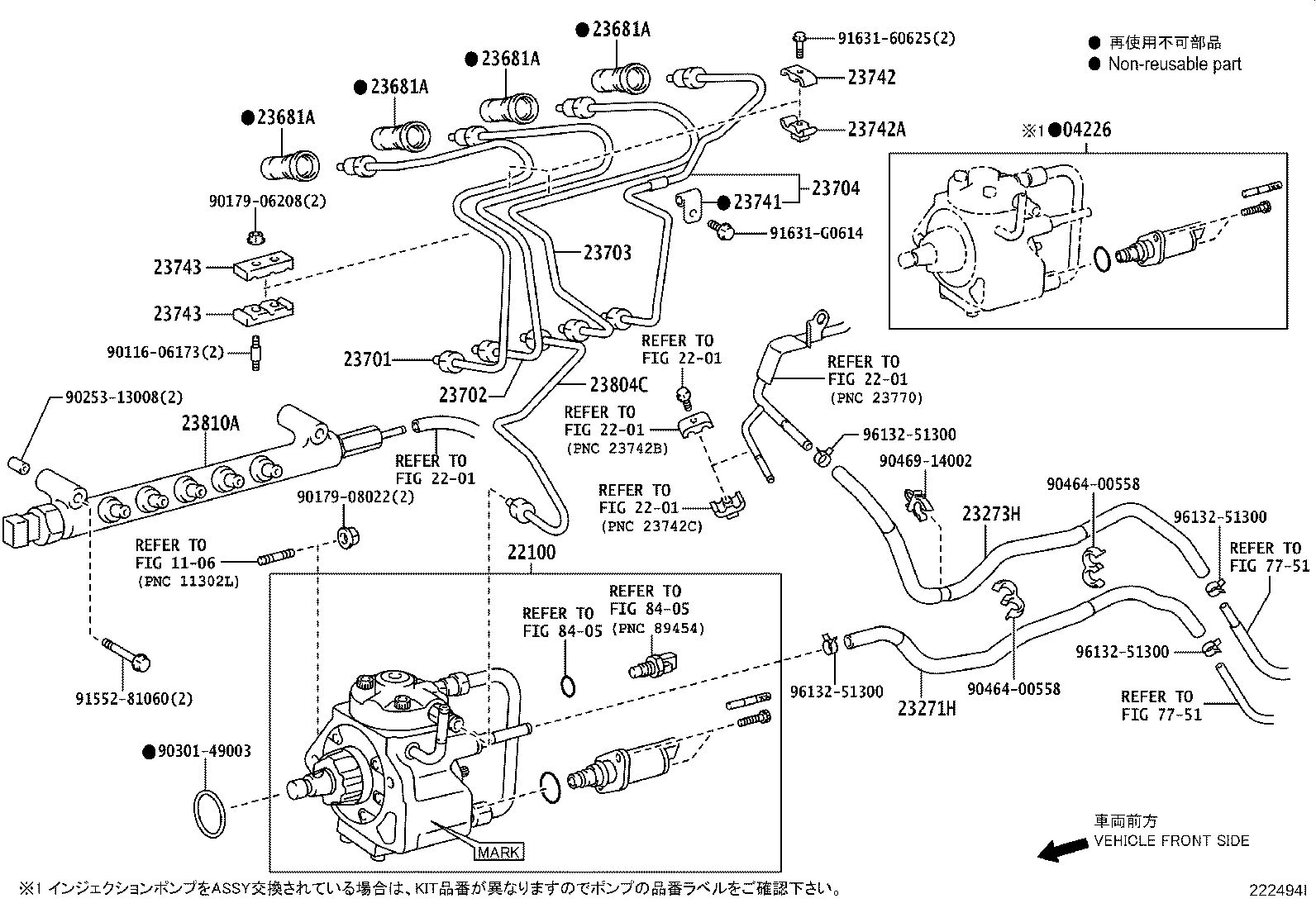

Click highlighted areas on diagram

Part #	Description	Period	Qty
04226 - VALVE KIT, SUCTION CONTROL
04226-30010	2KDFTV..KDY220,230,240,270,280,290 *342	08/2004 - 10/2006	1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30040	2KDFTV..KDY220,230,240,270,280,290 ﾏｰｸ=22100−30040	08/2004 - 10/2006	1
23271H - HOSE, FUEL, NO.1
23271-30160	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23273H - HOSE, FUEL, NO.2
23273-30100	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23681A - SEAL, NOZZLE HOLDER
23681-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	4
23681A - SEAL, NOZZLE HOLDER
23681-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	4
23681A - SEAL, NOZZLE HOLDER
23681-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	4
23681A - SEAL, NOZZLE HOLDER
23681-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-30040	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-30040	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-30040	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-39045	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	2
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	2
23743 - CLAMP, INJECTION PIPE, NO.3
23743-30011	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	2
23804C - PIPE SUB-ASSY, FUEL INLET
23804-30040	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
23810A - RAIL ASSY, COMMON
23810-0L020	2KDFTV..KDY220,230,240,270,280,290	10/2006 - 08/2007	1
23810-0L010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 10/2006	1
Common parts
90116-06173
90179-06208
90179-08022
90253-13008
90301-49003
90464-00558
90469-14002
91552-81060
91631-60625
91631-G0614
96132-51300
Linked diagrams
1106
2201
7751
8405
