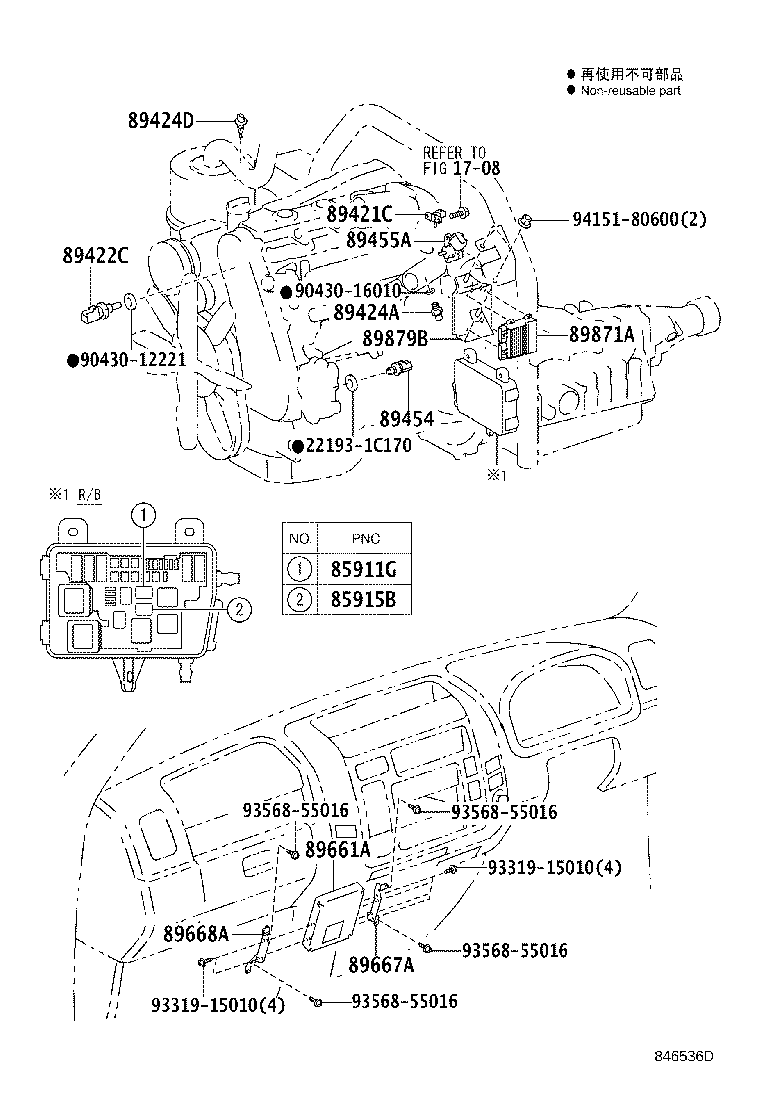

Toyota Dyna/toyoace KDY230 ELECTRONIC CONTROLED DIESEL (ECD)

Part #	Description	Period	Qty
85911G - RELAY, INJECTOR DRIVER
90987-02027	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02027	KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71020	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010	KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-12010	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
89454 - SENSOR, FUEL TEMPERATURE
89454-20010	KDY22#,23#,24#,27#,28#,290	09/2005 - 12/2999	1
89454-60010	KDY220,230,240,270,280,290	08/2004 - 08/2005	1
89455A - SENSOR, EGR VALVE POSITION
89455-35020	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
89661A - COMPUTER, ENGINE CONTROL
89661-25150	KDY280..TB..ATM;KDY230..ATM..15T;KDY230..ATM..125T..WT DENSO	08/2004 - 08/2007	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-37010	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-37020	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
89871A - DRIVER, INJECTOR
89871-71010	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
Common parts
22193-1C170
90430-12221
90430-16010
93319-15010
93568-55016
94151-80600
Linked diagrams
1708

KDY230-TGPFY3 (2004)
