KDY230-TGPFY3 (2004)
Toyota Dyna/Toyoace
(0408- )KDY230,280..TB..ATM ; (0605- )KDY230..TS..ATM..WT ; (0709- )ATM..1
A442E,A442F

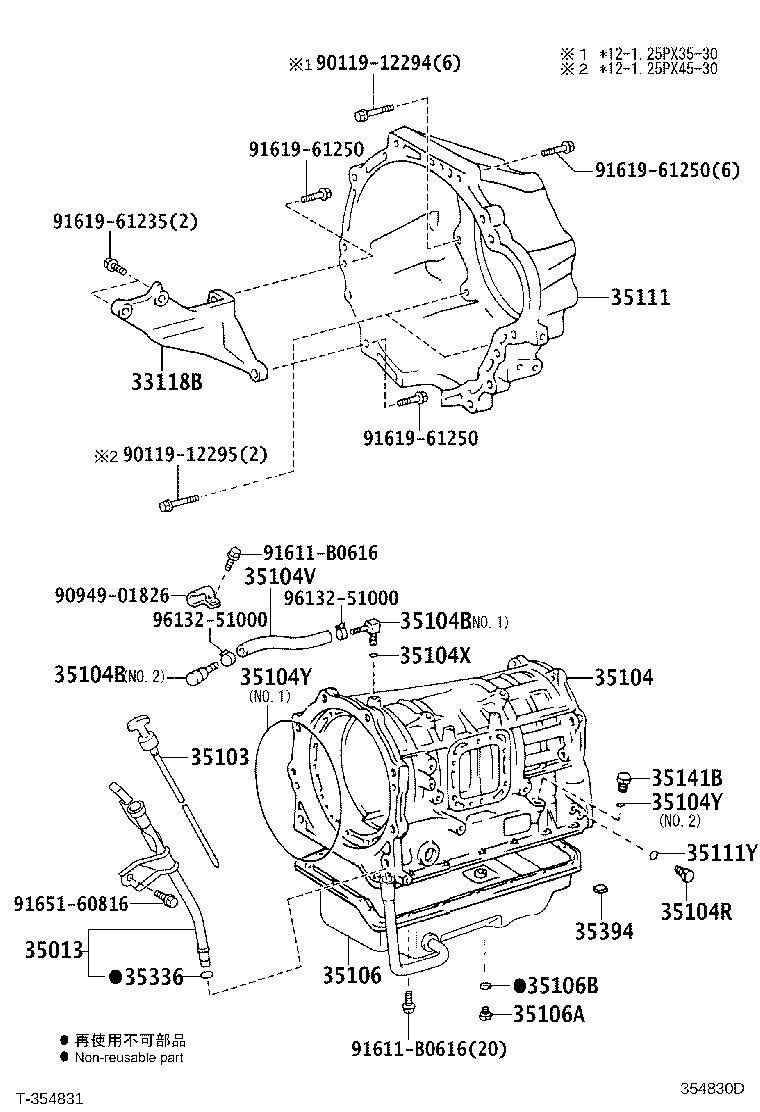

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-35070 |
KDY280..TB..ATM;KDY23#..ATM..15T;KDY23#..ATM..125T..WT |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-25140 |
KDY280..TB..ATM;KDY23#..ATM..15T;KDY23#..ATM..125T..WT |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-25140 |
KDY280..TB..ATM;KDY23#..ATM..15T;KDY23#..ATM..125T..WT |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90930-03168 |
KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,LY230,280,RZY231,281,TRY231,281..ATM..(DCR,LPG) NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90930-03168 |
KDY231..ATM..125T..WT;KDY231,TRY230..ATM..15T;KDY220,230,280,LY230,280,RZY231,281,TRY231,281..ATM..(DCR,LPG) NO.2 |
1 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
7 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11133 |
KDY280..TB..ATM;KDY23#..ATM..15T;KDY23#..ATM..125T..WT |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-99067 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90301-10189 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.2 |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-99067 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.1 |
1 | ||
| 90301-10189 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T NO.2 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-25020 |
KDY280..TB..ATM;KDY23#..ATM..15T;KDY23#..ATM..125T..WT |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
7 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-13001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY220,23#,281..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDY230..TW4..ATM;KDY231..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
4 | ||
| Common parts | ||||
| 90119-12294 | ||||
| 90119-12295 | ||||
| 90949-01826 | ||||
| 91611-B0616 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
| 91651-60816 | ||||
| 96132-51000 | ||||
