KDY230-TGPFY3 (2004)
Toyota Dyna/Toyoace
(0408- )KDY230,280..TB..ATM ; (0605- )KDY230..TS..ATM..WT ; (0709- )ATM..1
A442E,A442F

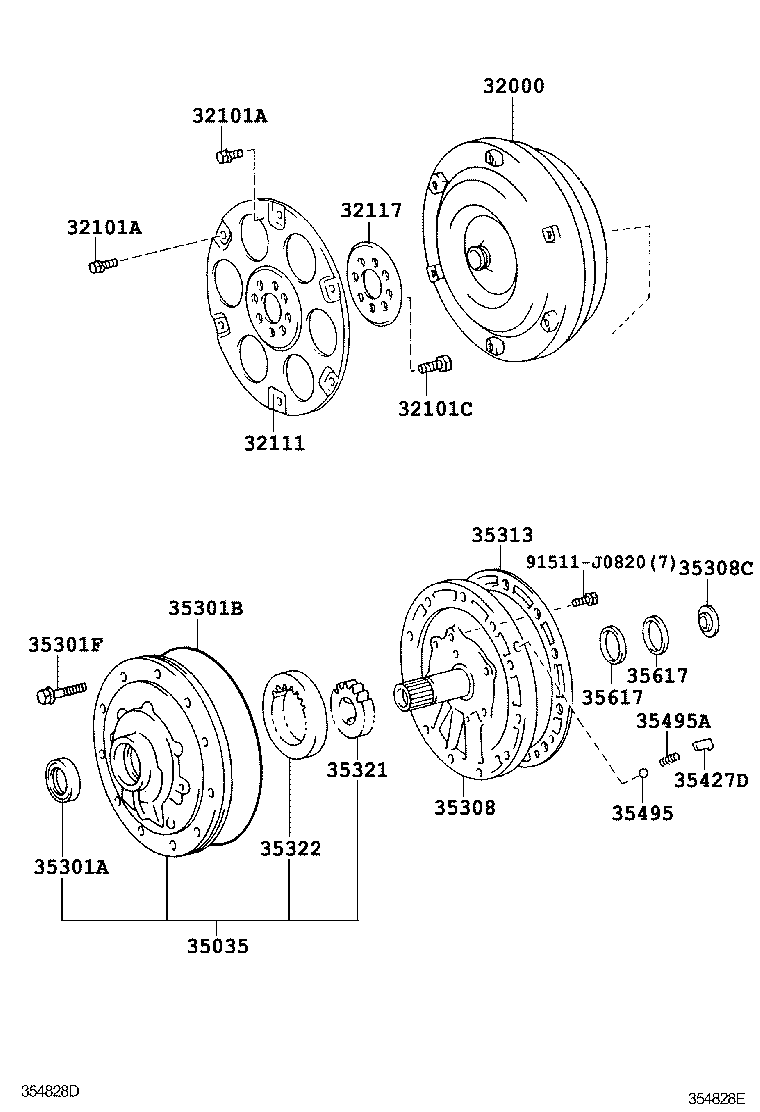

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-25030 |
KDY280..TB..ATM;KDY230..ATM..15T;KDY230..ATM..125T..WT |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09027 |
TRY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 90119-09026 |
TRY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09026 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09027 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09027 |
TRY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 90119-09026 |
TRY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09026 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−9,ﾌﾞﾗｯｸ |
1 | ||
| 90119-09027 |
KDY220,230,280,LY220,230,280,RZY220,23#,281..ATM *9−1.25PX12.8−8.8,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-13010 |
KDY22#,23#,28#..ATM *13−1.5PX43.5−23.5 |
8 | ||
| 32111 - PLATE, PUMP IMPELLER DRIVE | ||||
| 32111-60050 |
KDY220,230,280..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-60050 |
KDY22#,23#,28#..ATM |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-25011 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99029 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08212 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T *8−1.25PX60−30 |
10 | ||
| 90105-08213 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T *8−1.25PX60−20 |
1 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-25011 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER) | ||||
| 35789-36060 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=1.4 |
1 | ||
| 35789-36050 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=1.0 |
1 | ||
| 35789-36040 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=0.8 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-25021 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=11.963−11.977 |
1 | ||
| 35321-25040 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=11.993−12.007 |
1 | ||
| 35321-25031 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=11.978−11.992 |
1 | ||
| 35321-25050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=12.008−12.022 |
1 | ||
| 35321-25011 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=11.948−11.962 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-60031 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=11.978−11.992 |
1 | ||
| 35322-60090 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=11.993−12.007 |
1 | ||
| 35322-60021 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=11.963−11.977 |
1 | ||
| 35322-60100 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=12.008−12.022 |
1 | ||
| 35322-60011 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=11.948−11.962 |
1 | ||
| 35427D - SEAT, CHECK VALVE SPRING | ||||
| 35427-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35495 - BALL, CHECK | ||||
| 35495-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35495A - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90501-18106 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| Common parts | ||||
| 91511-J0820 | ||||
