KDY230-TGPFY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007

Engine 2KDFTV

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV..CBU,IV3 ; (0408- )1KDFTV..KDY231..WT..IV6

Click highlighted areas on diagram

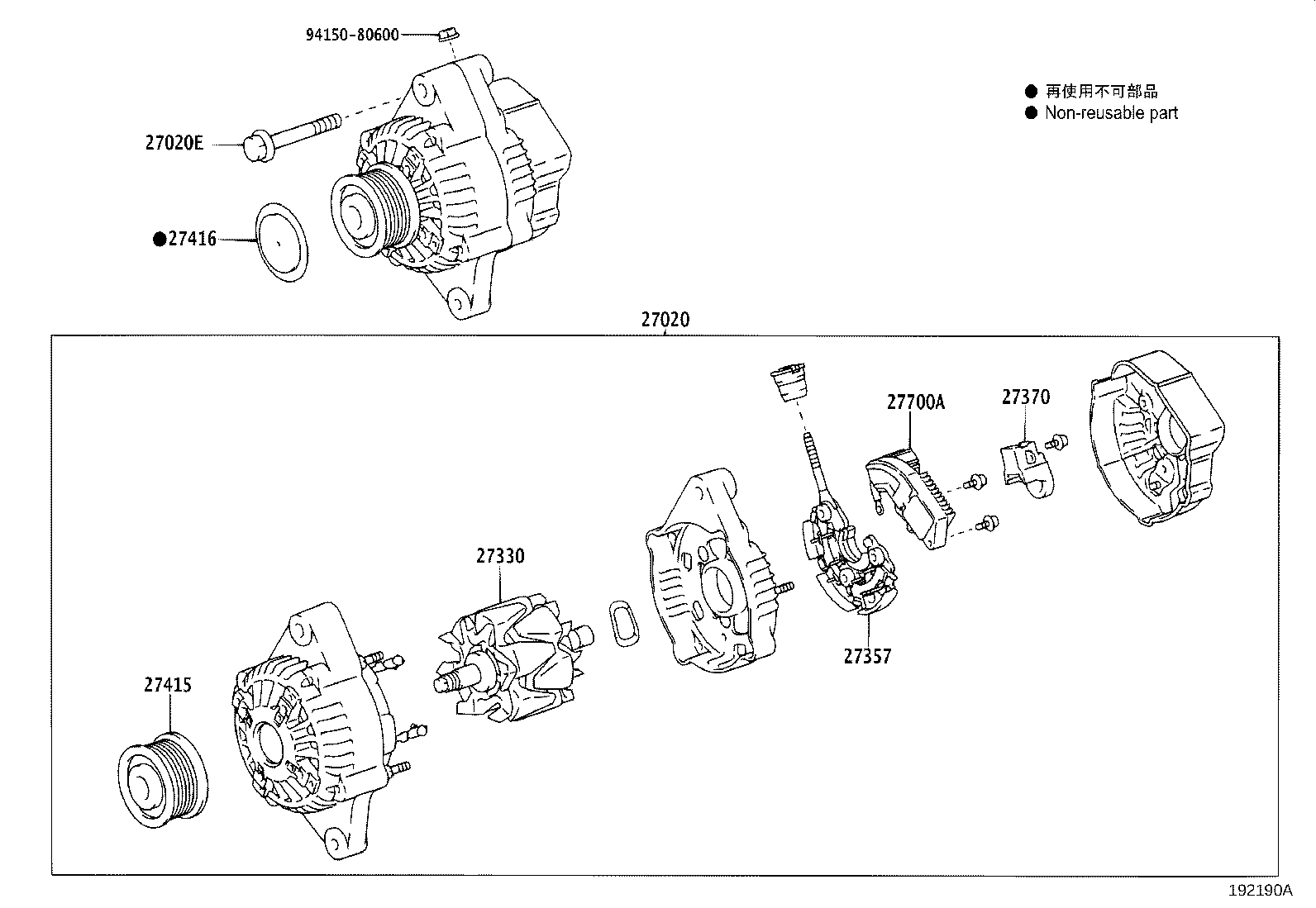

12V 80A

diagram

Part #	Description	Period	Qty	Price
27020E - BOLT(FOR ALTERNATOR)
90105-10092	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22200	1TRFE..TRY230..WT..IV6;1TRFE..TRY230..TS..125T..WT;1KDFTV,2KDFTV,1TRFPE..KDY22#,23#,24#,27#,28#,290,TRY231,281..CBU,IV3	08/2004 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	5L..LY230..TW1;5L..LY220..125T..WT;2KDFTV..KDY230..T4..TB;5L..LY230..TB..125T..ST;2KDFTV..KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);1RZE,3RZFPE..LY230,280,RZY23#,281..(T3,T4)..ATM;1KDFTV,2KDFTV..KDY22#,231,24#,27#,28#,290..CBU,IV3 12V 80A,90A	07/2001 - 10/2007	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-30020	1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290..CBU,IV3 12V 80A	08/2004 - 12/2999	1
Common parts
94150-80600

(0408- )1KDFTV..KDY221..TB..WT..IV3 ; (0408-)1KDFTV..KDY231..T3..15T..IV3 ;

Click highlighted areas on diagram

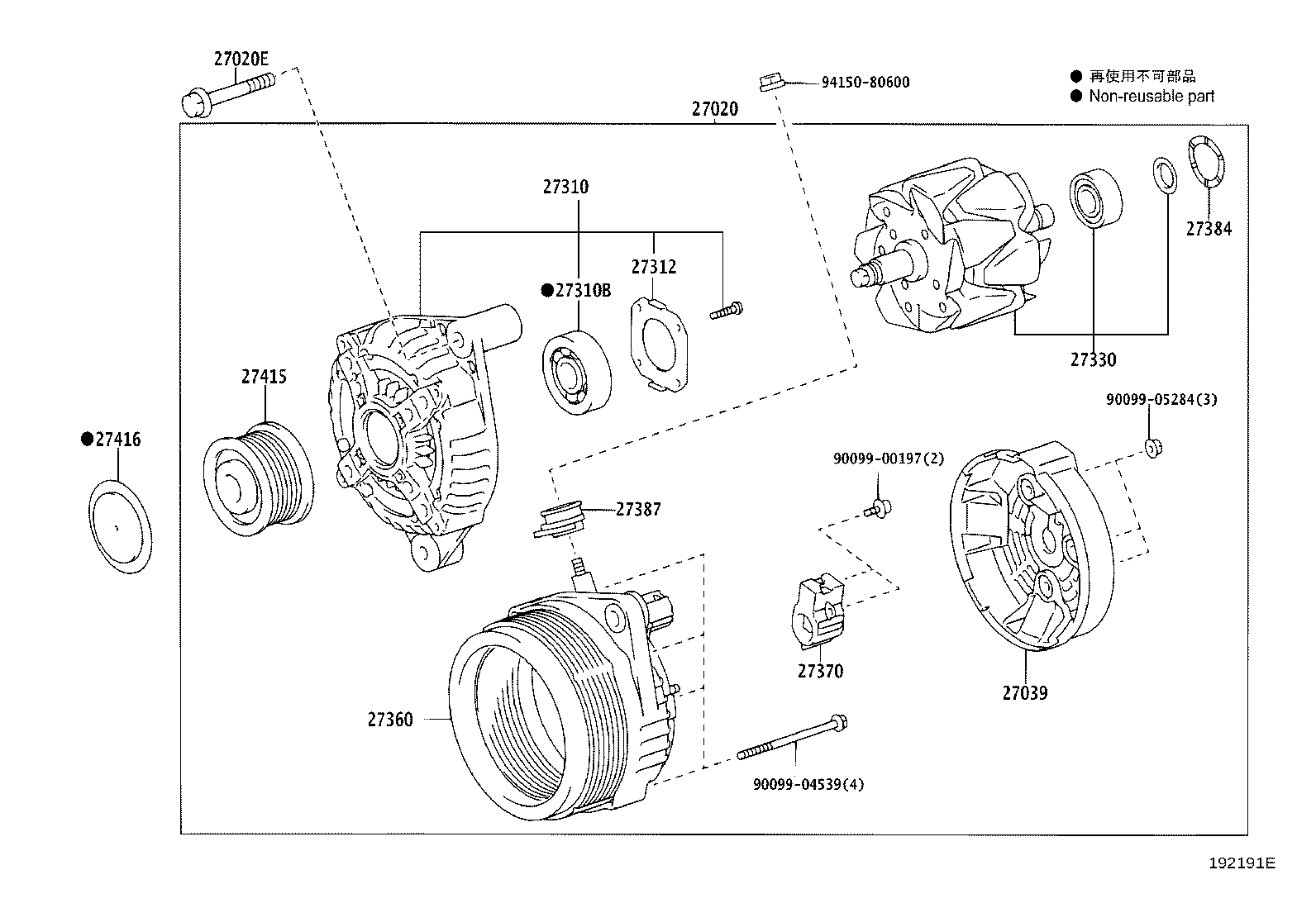

12V 130A

diagram

Part #	Description	Period	Qty	Price
27020E - BOLT(FOR ALTERNATOR)
90105-10092	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
90105-10092	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
90105-10092	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	5L..LY230..TW1;5L..LY220..125T..WT;2KDFTV..KDY230..T4..TB;5L..LY230..TB..125T..ST;2KDFTV..KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);1RZE,3RZFPE..LY230,280,RZY23#,281..(T3,T4)..ATM;1KDFTV,2KDFTV..KDY22#,231,24#,27#,28#,290..CBU,IV3 12V 80A,90A	07/2001 - 10/2007	1
27370-75060	5L..LY230..TW1;5L..LY220..125T..WT;2KDFTV..KDY230..T4..TB;5L..LY230..TB..125T..ST;2KDFTV..KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);1RZE,3RZFPE..LY230,280,RZY23#,281..(T3,T4)..ATM;1KDFTV,2KDFTV..KDY22#,231,24#,27#,28#,290..CBU,IV3 12V 80A,90A	07/2001 - 10/2007	1
27370-75060	5L..LY230..TW1;5L..LY220..125T..WT;2KDFTV..KDY230..T4..TB;5L..LY230..TB..125T..ST;2KDFTV..KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);1RZE,3RZFPE..LY230,280,RZY23#,281..(T3,T4)..ATM;1KDFTV,2KDFTV..KDY22#,231,24#,27#,28#,290..CBU,IV3 12V 80A,90A	07/2001 - 10/2007	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-30020	1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290..CBU,IV3 12V 80A	08/2004 - 12/2999	1
27415-30020	1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290..CBU,IV3 12V 80A	08/2004 - 12/2999	1
27415-30020	1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290..CBU,IV3 12V 80A	08/2004 - 12/2999	1
Common parts
90099-00197
90099-04539
90099-05284
94150-80600
